ThinkSystem SR630 V3 - Gold 5416S - 32GB 1Rx4 Ram - 9350-8i - 8x 2.5" SAS; Open bay - 1100W Titanium
ITCurry #: M852WD31 | Article #: 7D73A06GEA
Related products
Product Information

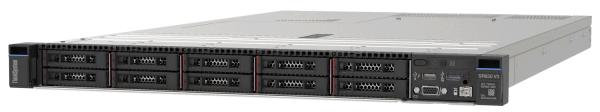

The Lenovo ThinkSystem SR630 V3 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 V3 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
This product guide provides essential pre-sales information to understand the ThinkSystem SR630 V3 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR630 V3 and consider its use in IT solutions.
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel© Xeon© Gold |
| Processor model | 5416S |
| Processor frequency | 2 GHz |
| Processor boost frequency | 4 GHz |
| Processor cores | 16 |
| Processor cache | 30 MB |
| Motherboard chipset | Intel C741 |
| Number of processors installed | 1 |
| Processor threads | 32 |
| Memory | |
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 32x DIMM |
| ECC | Yes |
| Memory clock speed | 5600 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
| Maximum internal memory | 8.19 TB |
| Storage | |
| Number of HDDs supported | 8 |
| Supported HDD sizes | 2.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| Supported RAID controllers | 9350-8i |
| Hot-swap | Yes |
| Optical drive type | No |
| Internal drive bays | 8 |
| Graphics | |
| On-board graphics card | Yes |
| Maximum graphics card memory | 16 MB |
| Network | |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
| Design | |
| Chassis type | Rack (1U) |
| Product colour | Black, Steel |
| Cooling type | Active |
| Rack mounting | Yes |
| Performance | |
| Performance management | XClarity Controller Platinum |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Compatible operating systems | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Ubuntu Server |
| Power | |
| Redundant power supply (RPS) support | Yes |
| Power supply | 1100 W |
| Number of redundant power supplies supported | 1 |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 773 mm |
| Height | 43 mm |
| Weight | 20.8 kg |
| Warranty | |
| Base Warranty | Non Non |
