Product Information

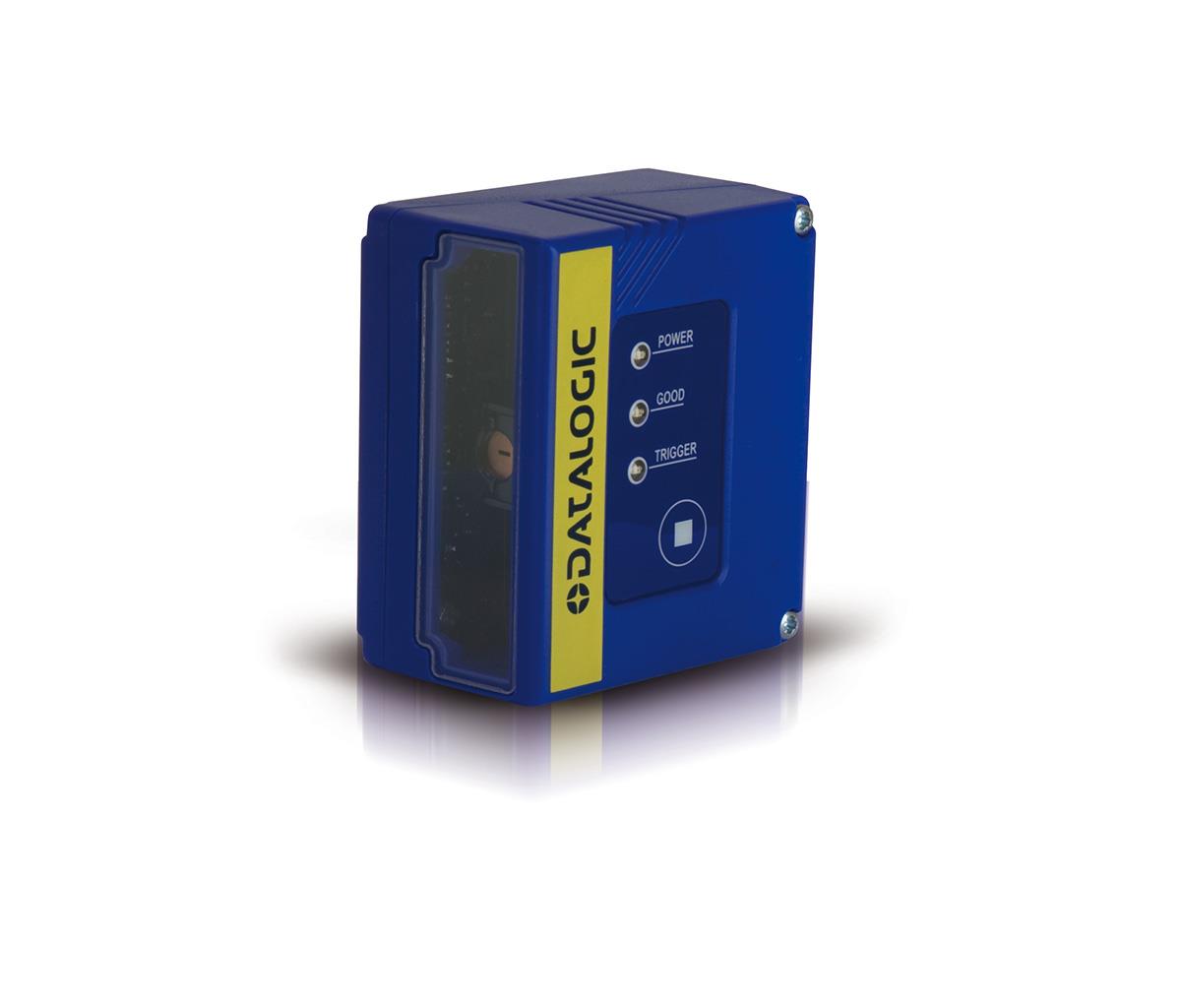

TC1200 represents the state-of-the-art-technology in CCD technology setting new standard in Auto-ID market for OEM applications and entry level Factory Automation.
Thanks to innovative CCD technology, TC1200 offers excellent reading performance, great decoding capability, outstanding product reliability combined with ease to use HMI interface.
TC1200 is also available in Scan Engine package very useful for applications where the CCD reader is applied inside a machine.
| Scanning | |
| Type | Fixed bar code reader |
| Scanner type | 1D |
| Sensor type | CCD |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, GS1 Databar Limited, Interleaved 2 of 5, MSI |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | USB |
| Performance | |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| International Protection (IP) code | IP64 |
| Product colour | Blue |
| Power | |
| Power source type | AC |
| Power consumption (typical) | 1.75 W |
| Input voltage | 5 V |
| Power consumption | 350 mA |
| Weight & dimensions | |
| Width | 57 mm |
| Depth | 50 mm |
| Height | 31 mm |
| Weight | 105 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 øC |
| Storage temperature (T-T) | -20 - 70 øC |
| Operating relative humidity (H-H) | 0 - 90% |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
| Warranty | |
| Base Warranty | Non Non |
