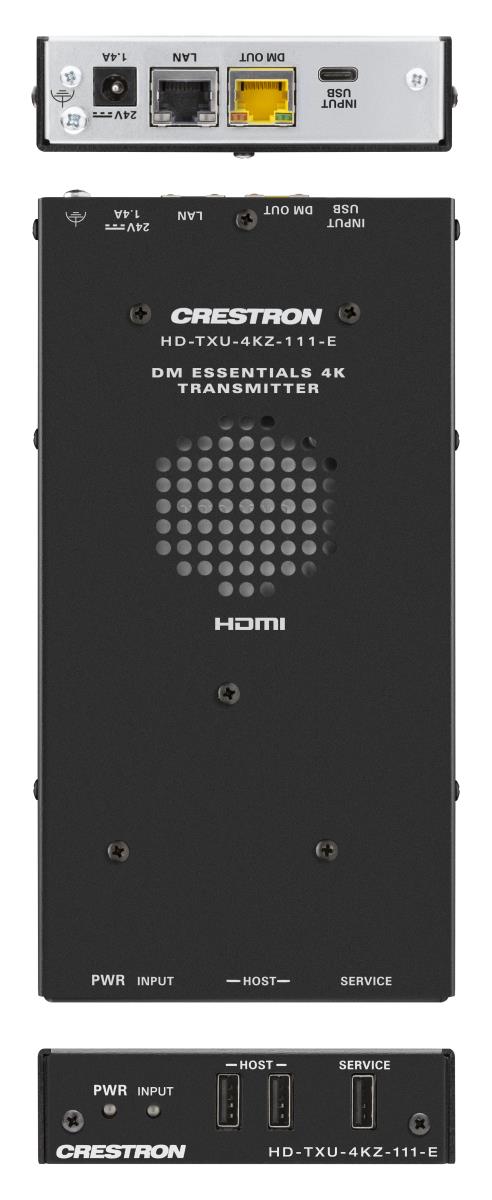

DM Essentials 4K Transmitter - USB-C DisplayPort USB 2.0 - Ethernet Signal Extension over CATX Cable
ITCurry #: W4882076 | Article #: HD-TXU-4KZ-111-E-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The HD-TXU-4KZ-111-E is a DM® Essentials 4K60 4:4:4 transmitter designed to interoperate with a DM Essentials HD-RXU-4KZ Series receiver. A USB-C® input with DisplayPort™ Alt Mode capability enables signal extension of a DisplayPort AV signal along with USB 2.0 data. This is useful in applications where an AV source is located remotely from its destination, such as a display, projector, or codec solution. A CAT5e or higher twisted pair cable must be used to connect the HD-TXU-4KZ-111-E to the DM Essentials receiver.
Interoperability with a DM Lite HD-RXU-4KZ Series Receiver
For interoperability between the HD-TXU-4KZ-111-E and an HD-RXU-4KZ Series receiver, the DM Essentials output port of the HD-TXU-4KZ-111-E must be connected to the DM Essentials input port of the HD-RXU-4KZ Series receiver.
NOTE: USB 2.0 data extension is not supported if the HD-TXU-4KZ-111-E is paired with a DM Essentials receiver other than an HD-RXU-4KZ Series receiver or paired with a DMPS Essentials switcher (HD-PS Series or HD-RX-4K-210-C-E[-POE]).
4K60 4:4:4 and HDR Support
The HD-TXU-4KZ-111-E supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.
USB 2.0 Data Extension

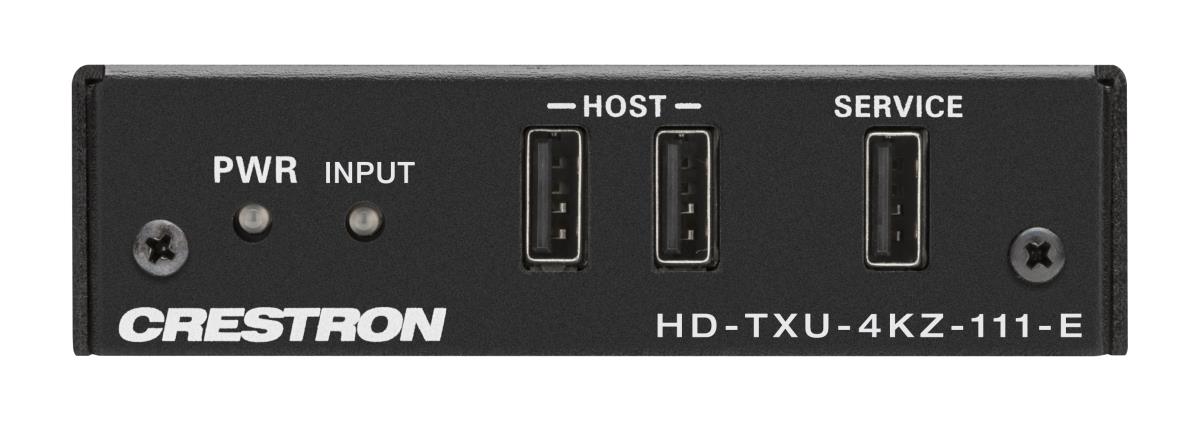

Two USB 2.0 host ports are provided on the HD-TXU-4KZ-111-E, enabling connection to a wide variety of supported USB 2.0 peripheral devices.
Ethernet Pass-Through Capability
The HD-TXU-4KZ-111-E is equipped with a 100/1000 Mbps LAN port that passes an Ethernet signal over the DM Lite connection to the receiving endpoint. The LAN port of one endpoint in the pair can be connected to an Ethernet network while the LAN port of the other endpoint can be connected directly to an Ethernet-enabled device such as a PC.

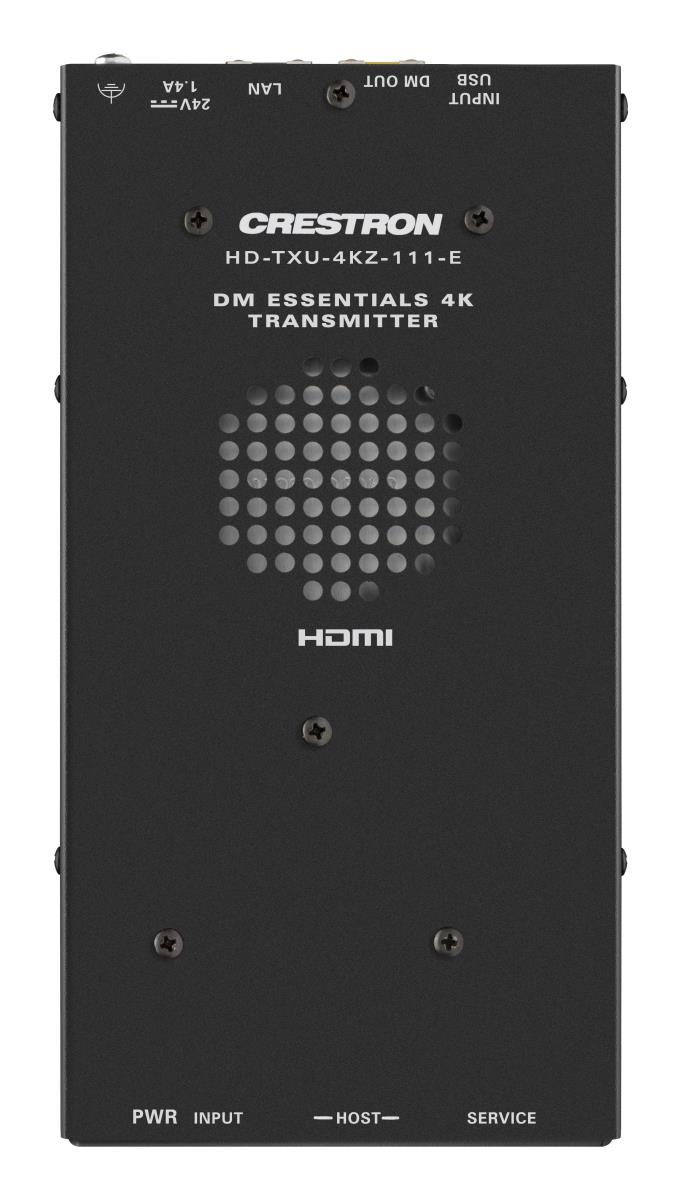

Compact, Surface-Mountable Design
Compact in design, the HD-TXU-4KZ-111-E can be mounted onto a flat surface such as the underside of a table, behind a credenza, or inside a podium. It can also be attached to a single rack rail in the back of an equipment cabinet. The HD-TXU-4KZ-111-E can receive power from the included power pack or from the remote DM Essentials receiver.
| Features | |
| Type | AV receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e |
| Maximum transfer distance | 70 m |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | Dolby Vision, High Dynamic Range 10 (HDR10), High Dynamic Range 10+ (HDR10 Plus) |
| Maximum refresh rate | 60 Hz |
| HDCP pass-through | Yes |
| CEC pass-through | Yes |
| LED indicators | Activity, Link, Power |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 2560 x 1600 (WQXGA), 3840 x 2160, 4096 x 2160 |
| Audio formats supported | DTS, LPCM |
| HDCP | Yes |
| Material | Metal, Polycarbonate (PC) |
| Colour depth | 12 bit |
| Rack mounting | Yes |
| Frame rate | 60 fps |
| HDCP version | 2.3 |
| Product colour | White |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| Number of HDMI outputs | 1 |
| Power | |
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| Current | 2.5 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Operating relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Width | 106 mm |
| Depth | 202 mm |
| Height | 30 mm |
| Weight | 550 g |
| Packaging content | |
| Cables included | UTP |
| IR extender included | Yes |
| IR emitter included | Yes |
| Mounting brackets included | Yes |
| Technical details | |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Warranty | |
| Base Warranty | Non Non |
