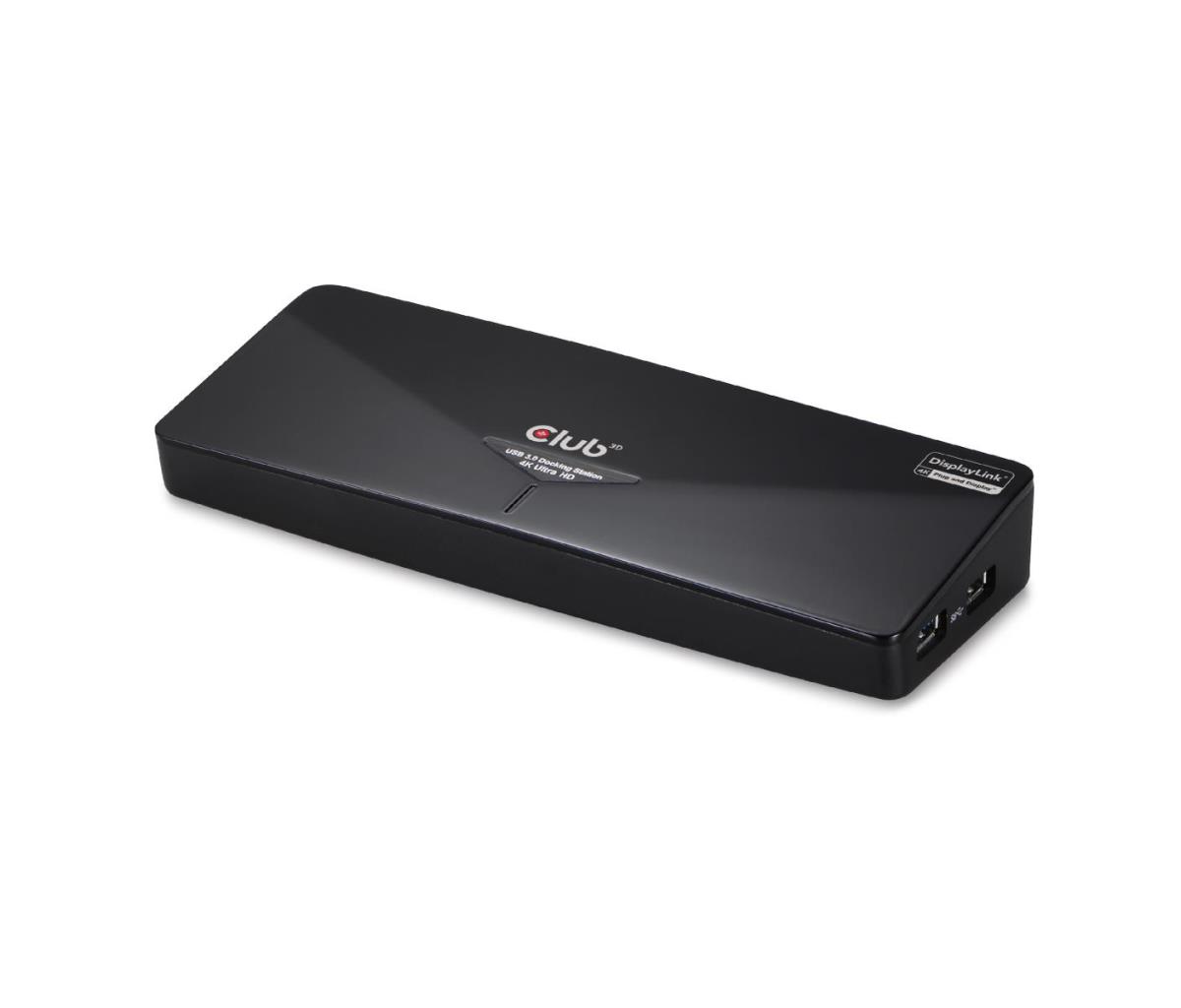

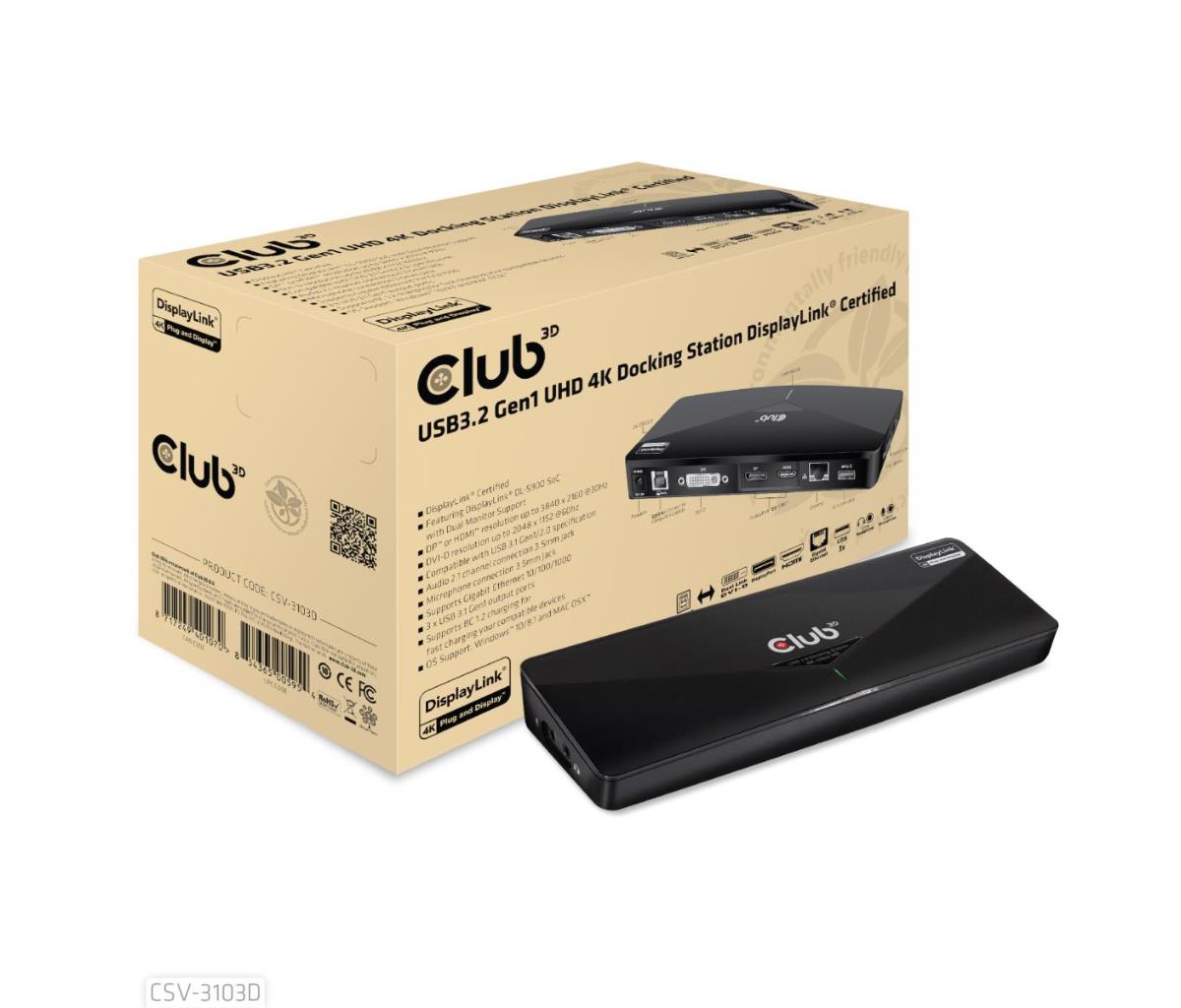

SenseVision USB 3.0 4K Docking Station

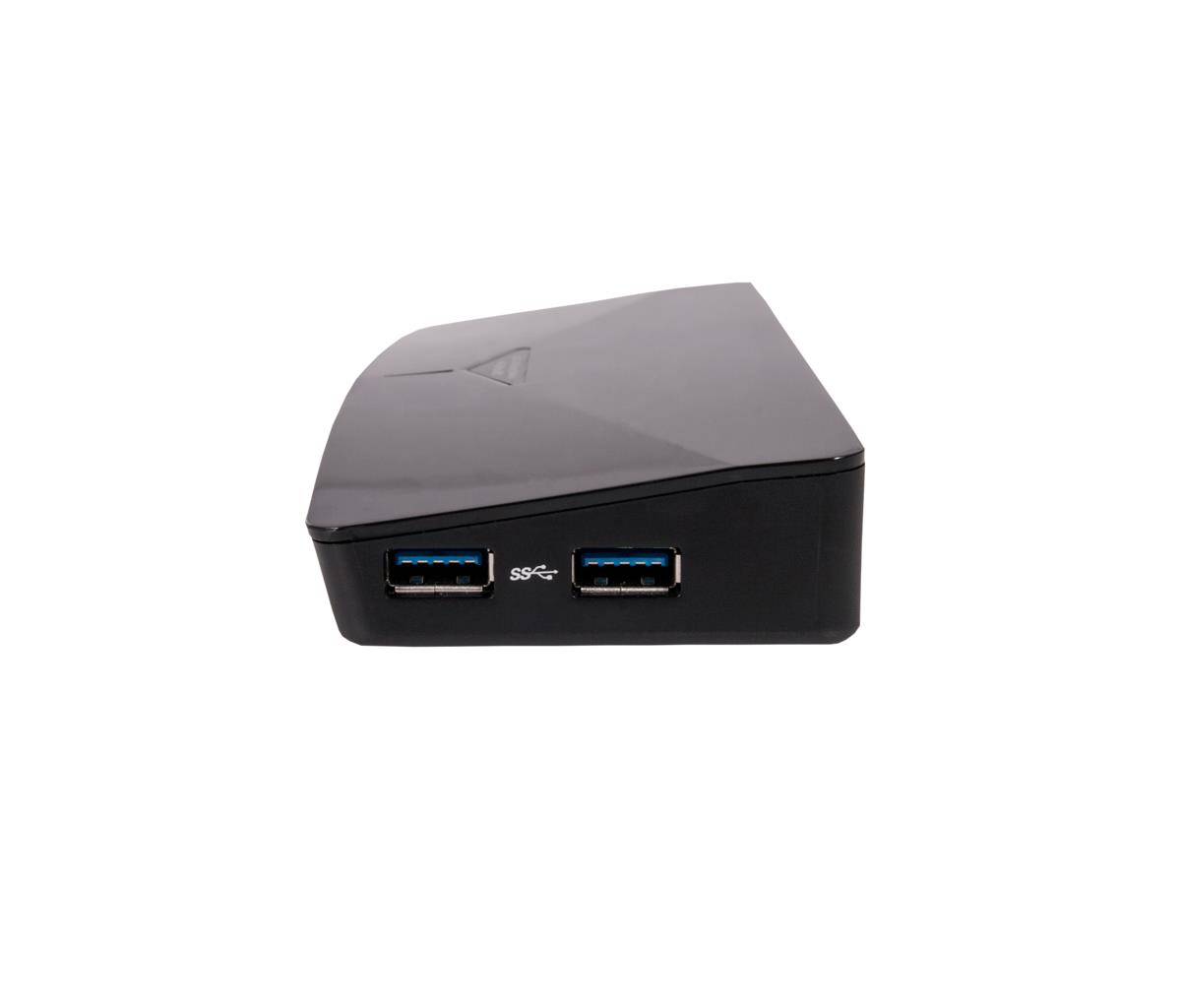

The Club 3D Universal USB 3.0 4K Docking station is designed for all your connectivity needs. With the built-in USB 3.0 ports, the docking station enables you to enjoy the super speed data transmission (up to 5Gbps) of your USB peripherals, reducing cable clutter and bringing data and display connectivity to your notebook or tablet via a single USB 3.0 uplink port.

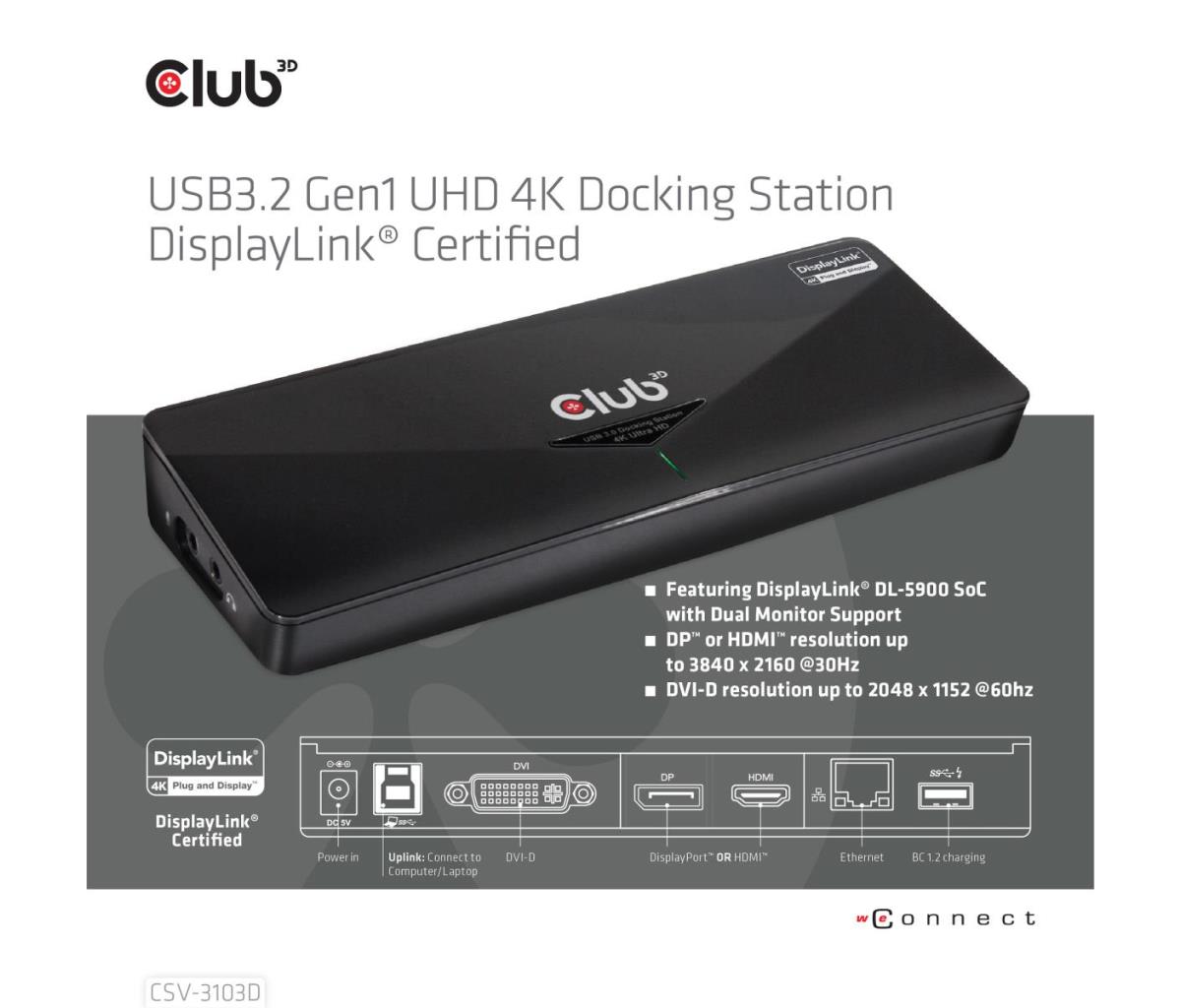

Dual Monitor support allows you to chose from either the DP or HDMI™ output plus a DVI output. It supports display resolution up to 4K at 30Hz for single Monitor setup or full HD at 60Hz for Dual Monitor setups. It offers separate connections for your Speakers or Headset and Microphone. You can even charge your Mobil Phone thru the BC1.2 Fast Charge Port in a manner of minutes.
Functionality is also dependent on the functionality of the connected devices.

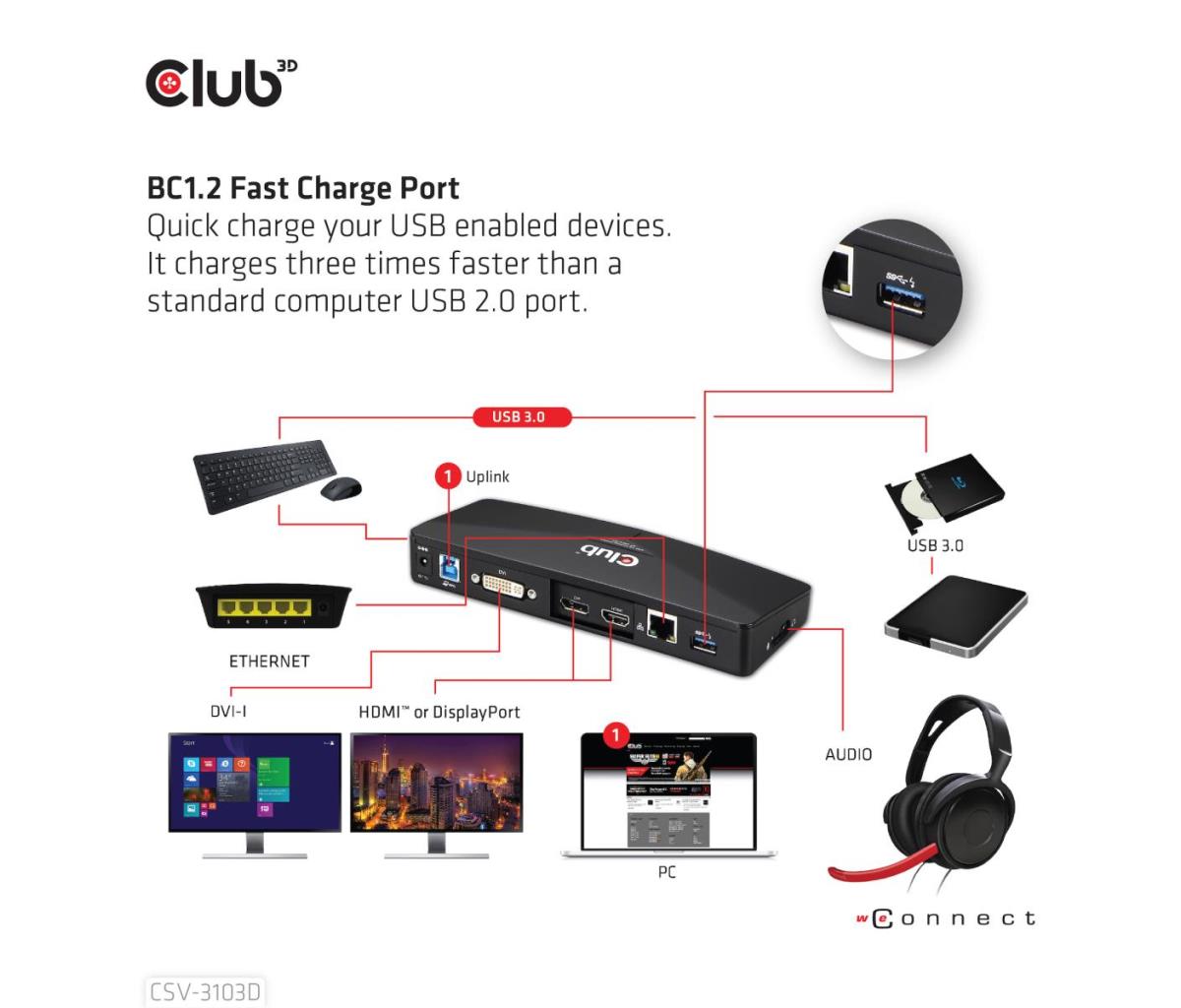

BC 1.2 charging
Quick charge your USB enabled devices. It charges three times faster than a standard computer USB 2.0 port.
Share

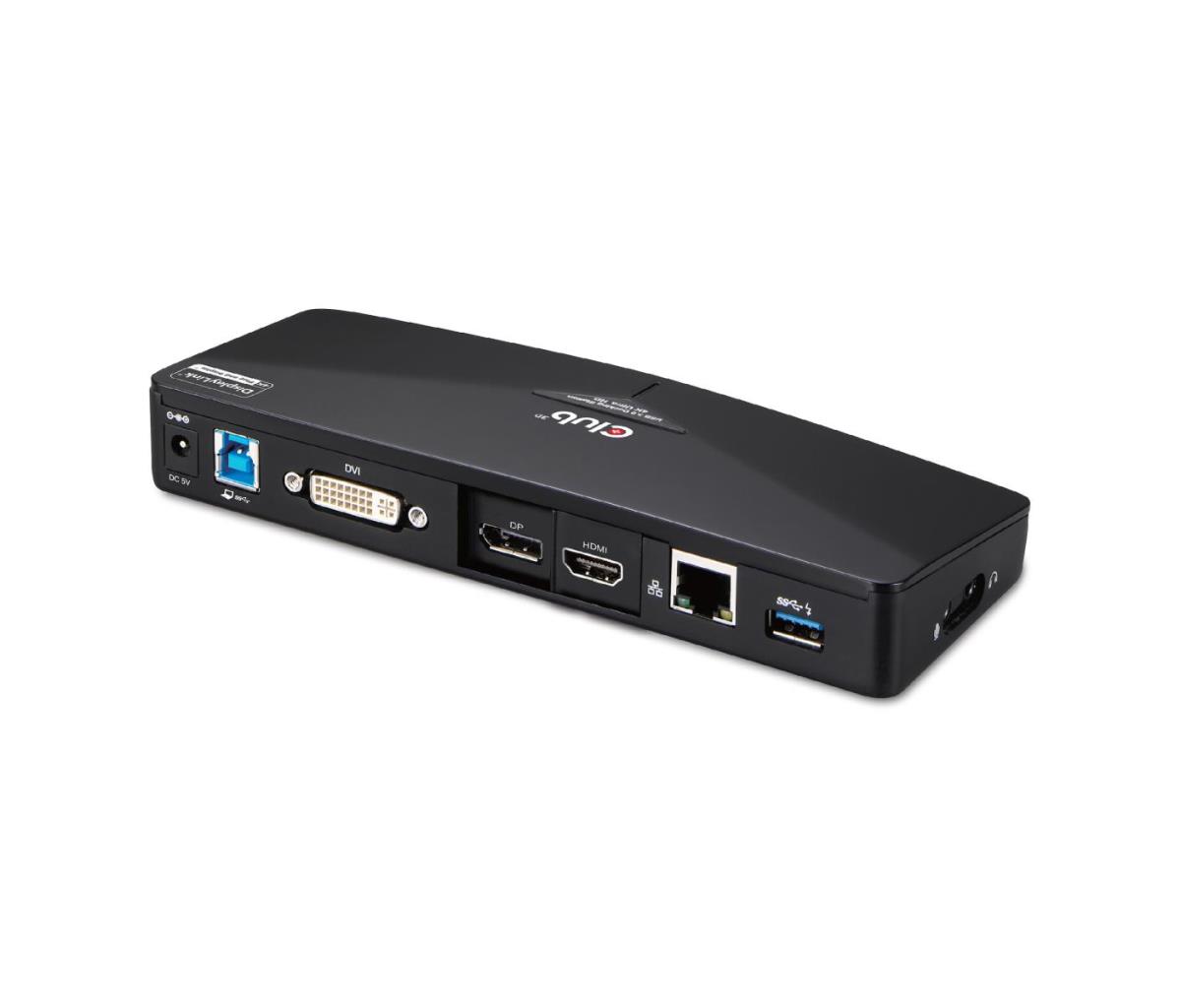

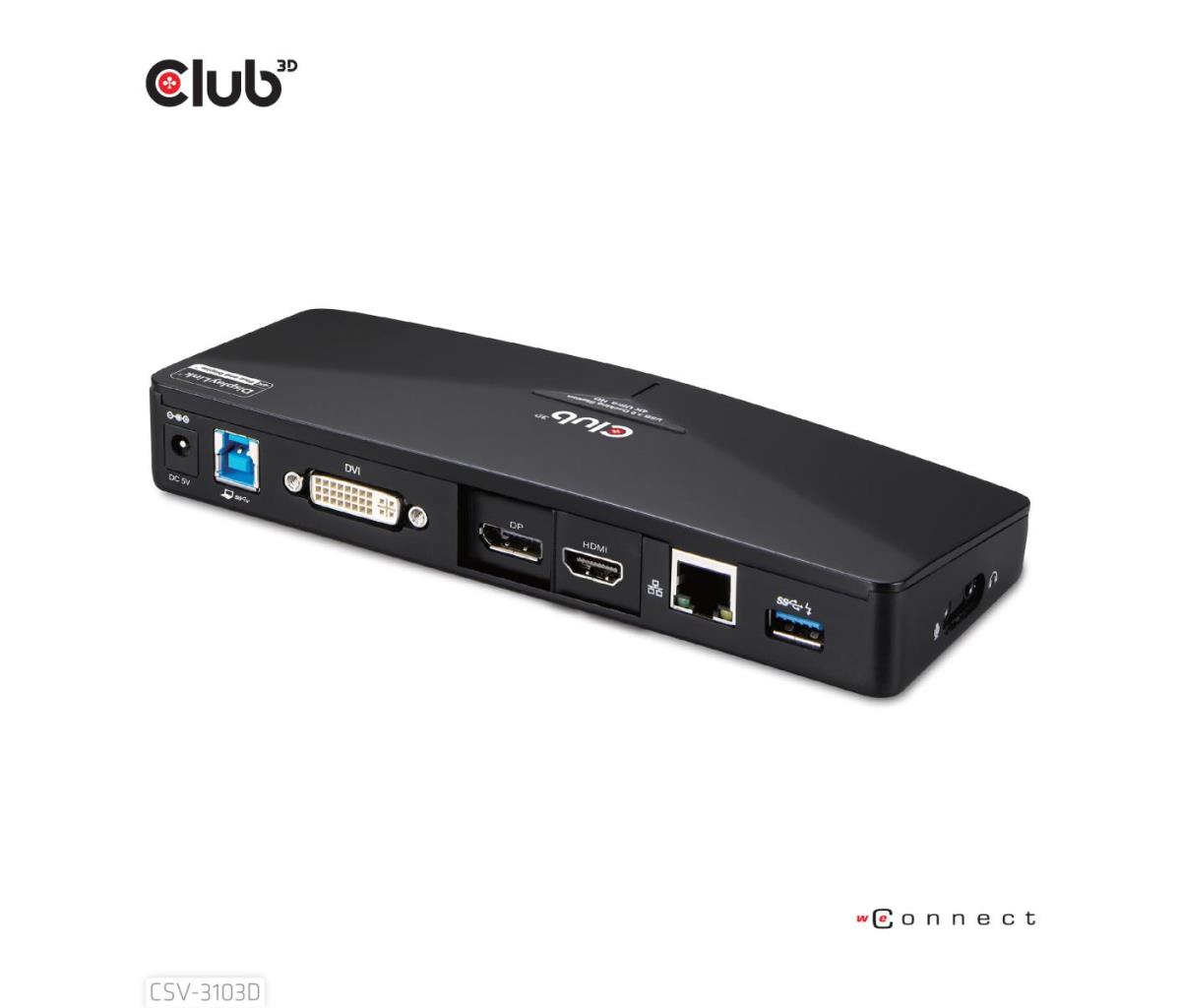

Ports & interfaces | |
Connectivity technology | Wired |
Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
HDMI ports quantity | 1 |
HDMI version | 1.4a |
DisplayPorts quantity | 1 |
DVI-I ports quantity | 1 |

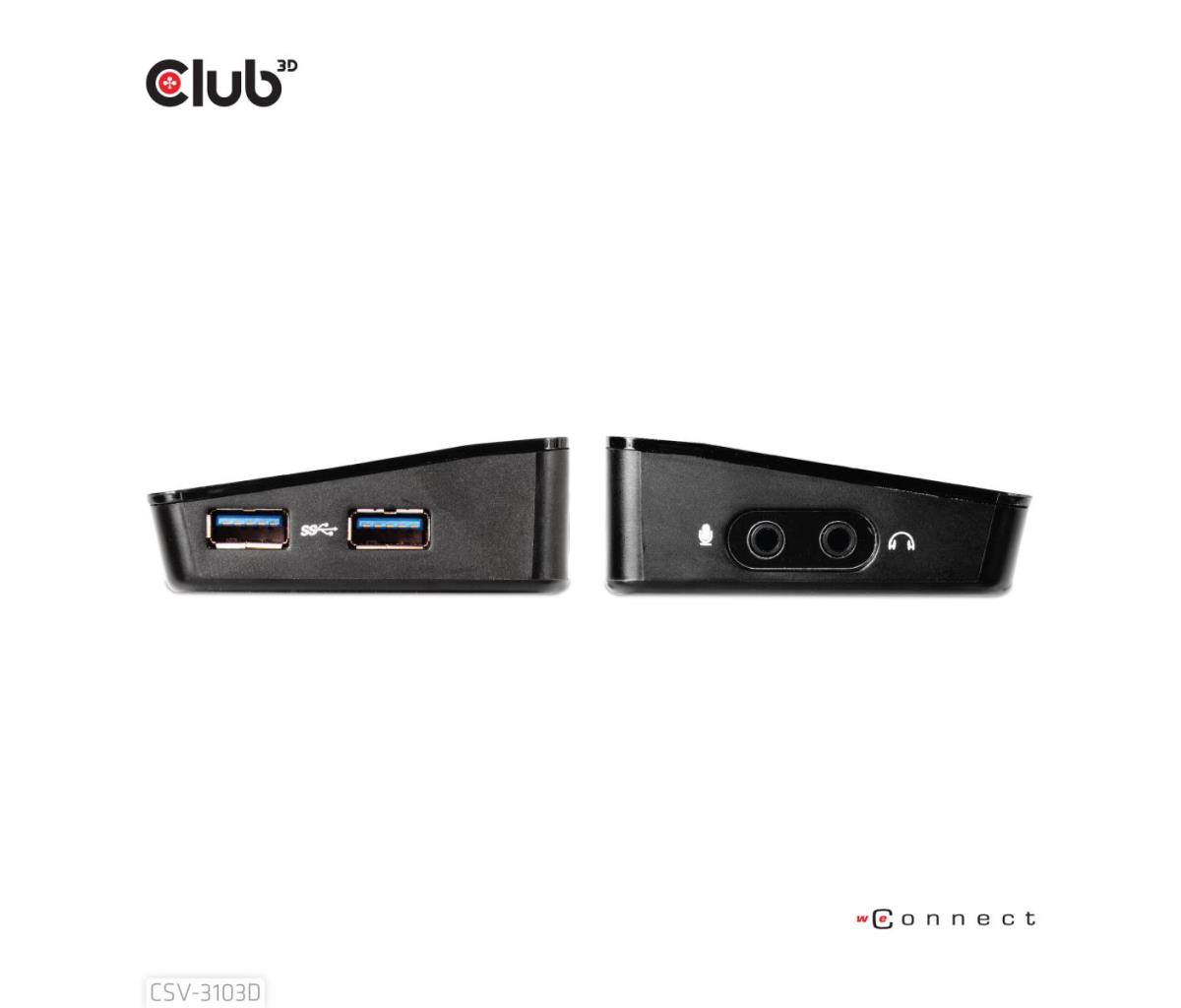

Microphone in | Yes |
Headphone outputs | 1 |
Headphone connectivity | USB |
Line-out | Yes |
DC-in jack | Yes |
Audio (L/R) out | 1 |
Network | |
Ethernet LAN | Yes |
Ethernet LAN (RJ-45) ports | 1 |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance | |
Card reader integrated | No |
Optical drive included | No |
Maximum digital resolution | 3840 x 2160 pixels |
Maximum analog resolution | 2048 x 1152 pixels |
Product colour | Black |
LED indicators | Power |
Reset button | No |
Plug and Play | Yes |
Charging function | Yes |
Compatibility | Lenovo Dell Acer Asus. MSI. Toshiba Apple HP Razer |
Certification | CE, RoHS, FCC |
Audio | |
Built-in speaker(s) | No |
Power | |
Power source type | AC |
Warranty | |
Base Warranty | Non Non |
Software | |
Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Ultimate x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
Weight & dimensions | |

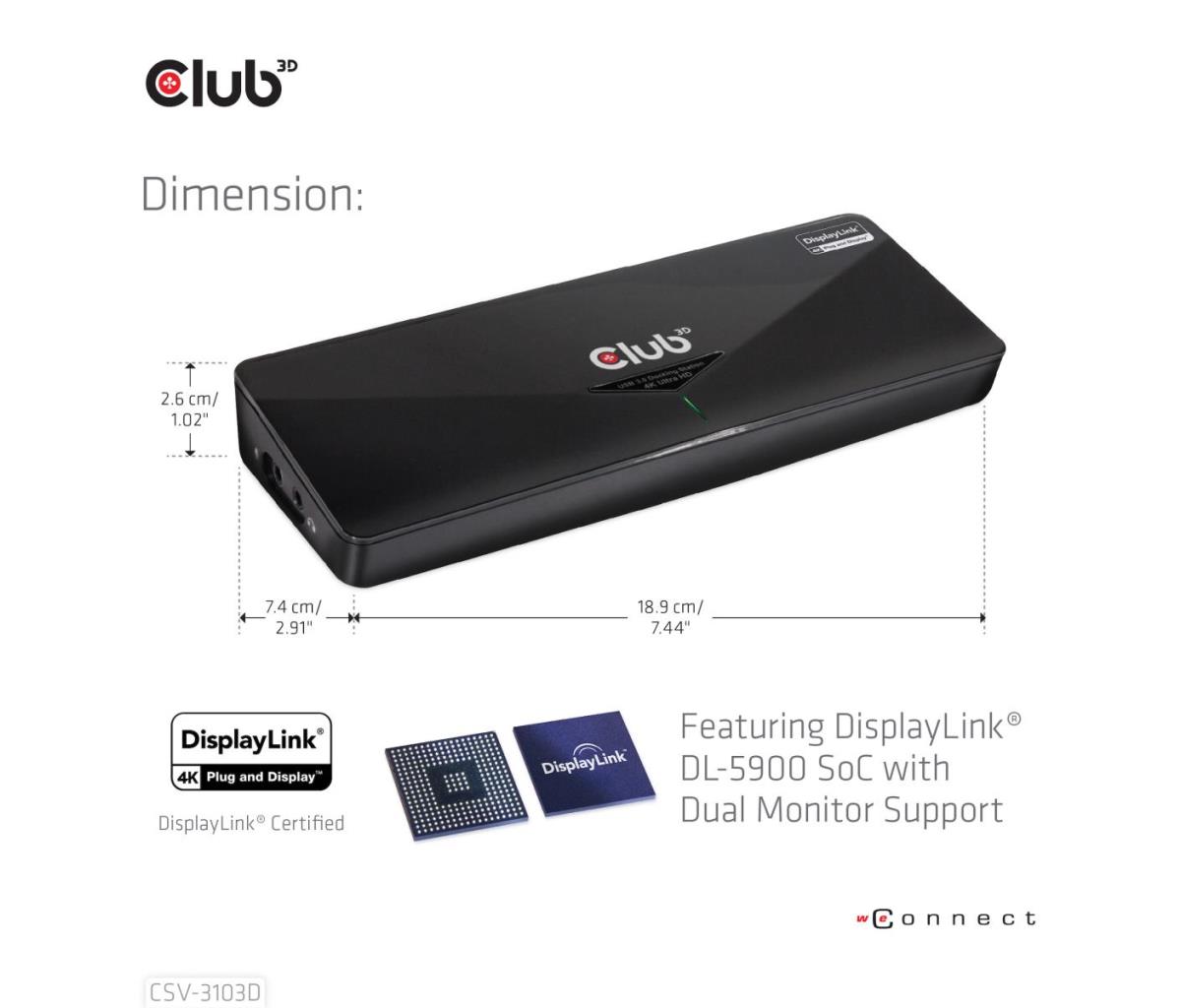

Width | 189 mm |
Depth | 74.5 mm |
Height | 26.3 mm |
Weight | 200 g |
Packaging content | |
Cables included | USB |
AC adapter included | Yes |
Quick start guide | Yes |
User guide | Yes |
Technical details | |
Compliance certificates | RoHS |
Logistics data | |
Harmonized System (HS) code | 84733020 |
Other features | |
Number of microphone inputs | 1 |
