USB Type C To DisplayPort 1.2a Cable 1.2m 4k Uhd 60hz M/m
ITCurry #: M4192750 | Article #: CAC-1517-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

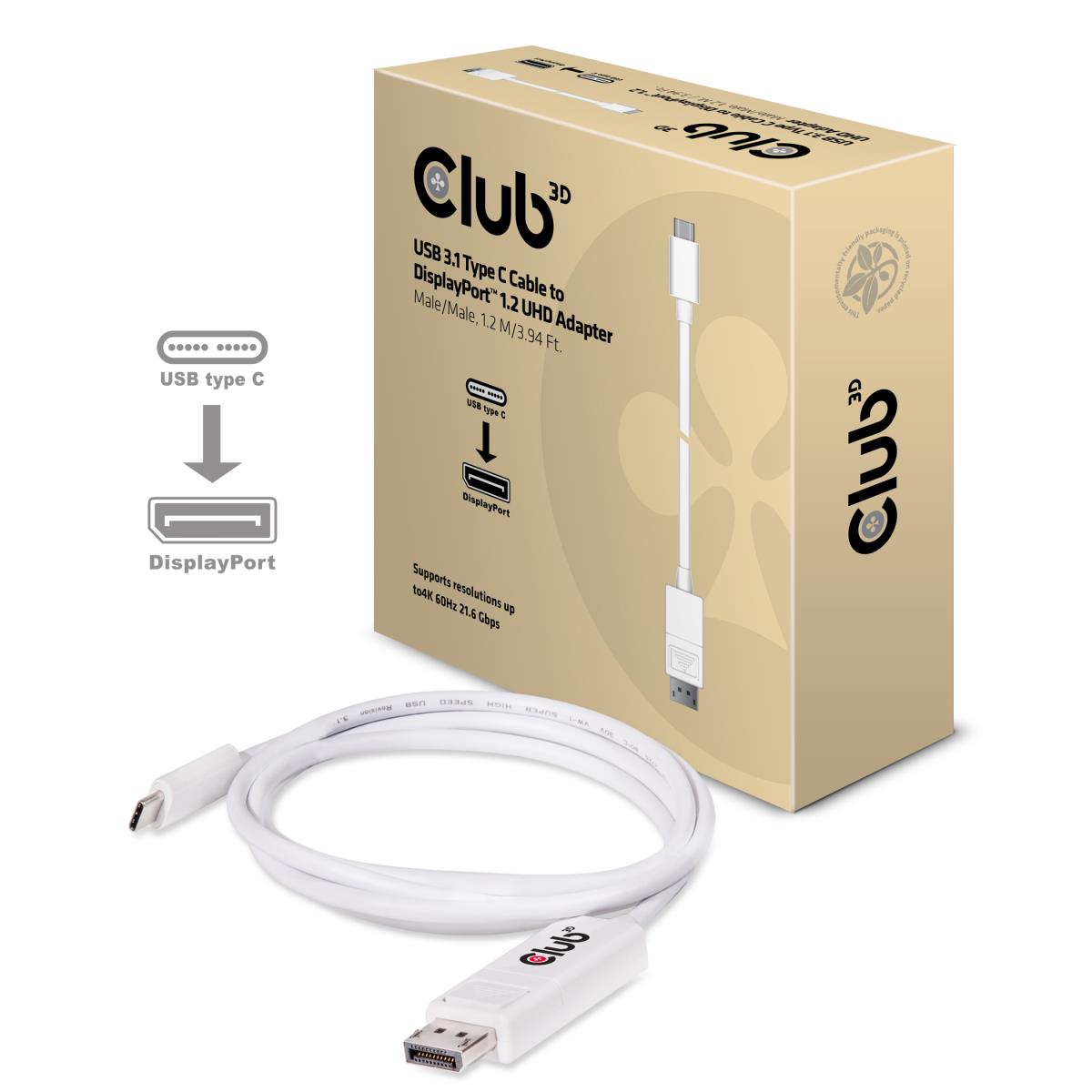

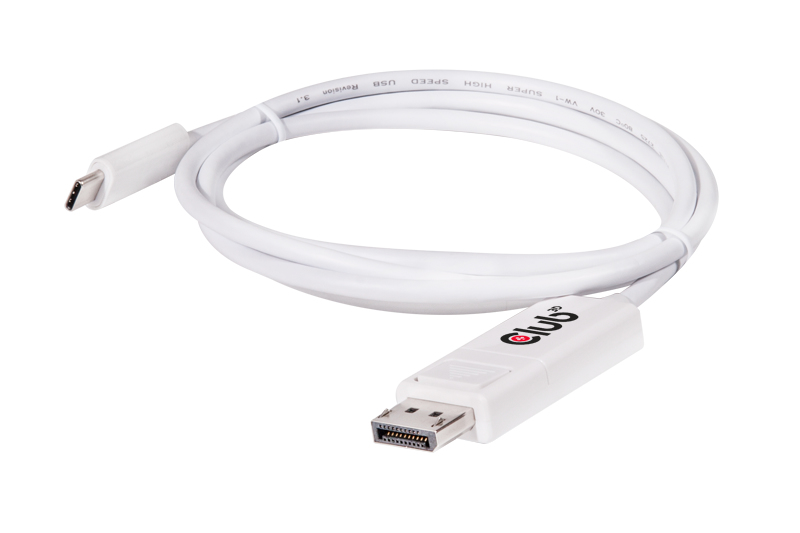

The Club 3D CAC-1517 is a DisplayPort™ signal converter. The USB 3.1 Type C
Cable to DisplayPort™ 1.2 UHD Adapter is the easiest solution for connecting
your USB 3.1 Type C source device featuring DisplayPort™ Alternate Mode to a
DisplayPort™ 1.2 enabled (Ultra) High Definition Monitor, Television or Projector.
Powered by the USB Type C port, the adapter requires no external power
and is ideal for use with the latest notebooks / MacBook (pro) and Tablets.
Supports up to 4K UHD Resolution at 60Hz and AMD FreeSync.
The USB 3.1 Type C Cable to DisplayPort™ 1.2 UHD Adapter supports (U)HD
resolutions up to 4K UHD @ 60Hz for a clear, sharp picture. The support for
60 frames per second provides exceptionally smooth video. Use the adapter
to play games, view video or browse the internet from your USB 3.1 Type-C
enabled device on a (Ultra) High Resolution monitor or TV. Supporting up to
8 channels of audio, the adapter provides high-definition digital audio and
video. Does not support Dual Mode DisplayPort™ (DP++)
Compatible with all Operating Systems
The USB 3.1 Type C Cable to DisplayPort™ 1.2 UHD Adapter supports all USB
3.1 Type-C devices with DisplayPort™ ALT mode and operating systems, including
Apple OS X, Windows 7, 8.1 and 10 and Google Chrome OS.
Please refer to your device's user manual to confirm the specification and
functionality of the USB-C port.
| Ports & interfaces | |
| Connector 1 | USB Type C |
| Connector 2 | Displayport 1.2 |
| Cable length | 1.2 m |
| DisplayPort version | 1.2a |
| Warranty | |
| Base Warranty | Non Non |
| Performance | |
| Product colour | White |
| Data transfer rate | 21.6 Gbit/s |
| USB required | No |
| Maximum resolution | 3840 x 2160 pixels |
| Converter type | Active video converter |
| Maximum refresh rate | 60 Hz |
| Plug and Play | Yes |
| Certification | FCC, ROHS, CE |
| Compatible operating systems | Apple OS X Microsoft Windows Google Chrome OS |
| Weight & dimensions | |

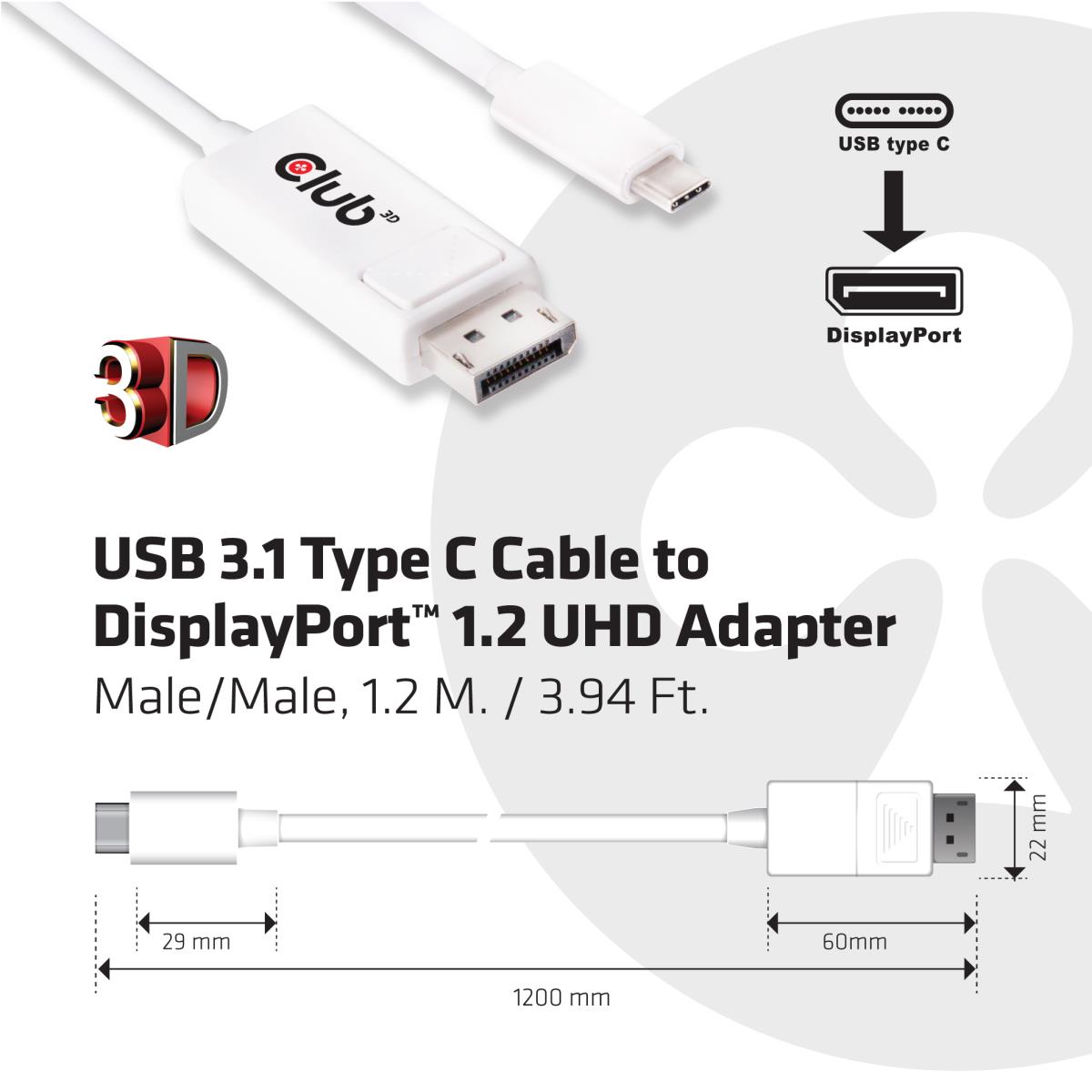

| Width | 22 mm |
| Depth | 8, 1200 |
| Weight | 47 g |
| Packaging data | |
| Package width | 145 mm |
| Package depth | 45 mm |
| Package height | 145 mm |
| Technical details | |
| Compliance certificates | RoHS |
