Product Information

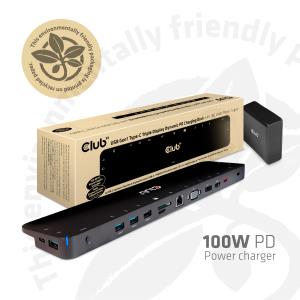

The Club 3D CSV-1566 USB Gen1 Type-C Triple Display DP™ Alt mode + Displaylink™/ USB mode™ Dynamic PD Charging Dock with 120 Watt PS, is an integrated solution combining Video, Data, Power, Ethernet and Audio. This Dock is perfectly suited for extending a Type-C port or USB-A port(via a Type-C to USB converter) to provide multiple audio, video, data and power ports, providing an ideal solution to satisfy users who require multiple ports. This dock has 3 video ports (2 HDMI™, one from DP™1.2 Alt mode, one from USB mode, 1 Displayport™ from USB mode) for video experience, 4 USB Gen1 Type-A and 1 USB Gen1 Type-C for data transmission, RJ45 for super high speed Ethernet, SD/TF card slots for connecting memory cards. Besides, it has a smart charging port, bringing fast charging performance for connected mobile devices (Apple, Samsung phones, pads, etc). A 120W power adapter is provided to supply power for the function of this dock and charge the host with a max 80W (20V/4A). This dock is a bottom design with can be put underneath the host. It can work on DP™1.2 Alt mode supported USB Type-C and -A hosts.
| Ports & interfaces | |
| Connectivity technology | Docking |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Product colour | Black |
| Plug and Play | Yes |
| Compatibility | Lenovo Dell Acer Asus. MSI. Toshiba Apple HP Razer |
| Certification | Meets ROHS, FCC, and CE EMI requirements |
| Power | |
| Power source type | DC |
| Weight & dimensions | |
| Width | 304 mm |
| Depth | 77 mm |
| Height | 18 mm |
| Weight | 358 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 360 mm |
| Package depth | 115 mm |
| Package height | 65 mm |
| Package weight | 726 g |
| Packaging content | |
| Cables included | USB Type-C |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Packaging composition | |
| Plastic packaging weight | 5 g |
| Paper/cardboard packaging weight | 168 g |
| Logistics data | |
| Harmonized System (HS) code | 8473 3020 |
| Other features | |
| Voltage | 20.5 V |
| Warranty | |
| Base Warranty | Non Non |
