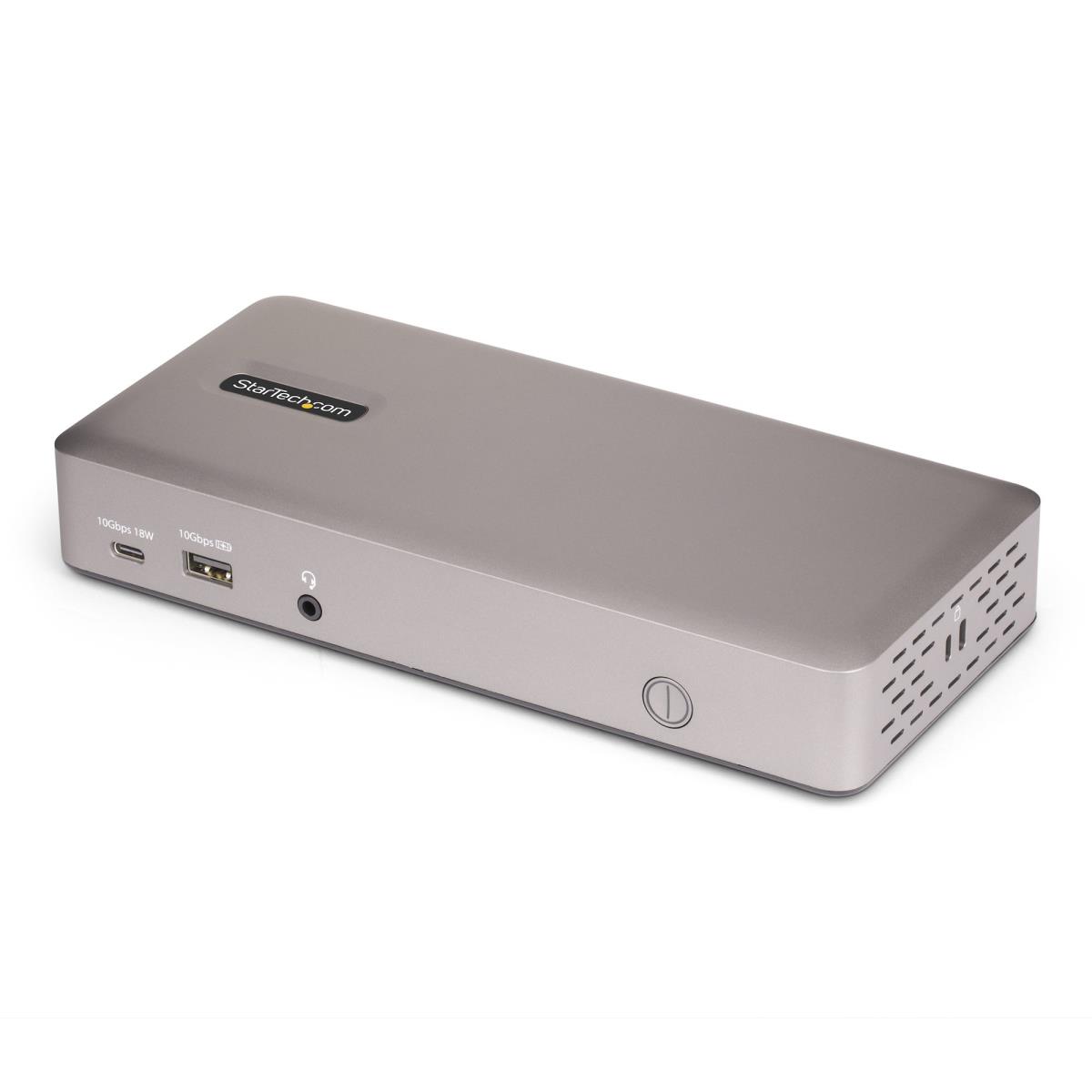

Triple-monitor USB4 Dock - USB-c Dock 4k 60hz 100w Pd
ITCurry #: 7564C395 | Article #: 150UE-USB4DOCKTRIPLE-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Expand your workspace with a high-performance docking station that delivers triple 4K 60Hz display output, 2.5G Ethernet, and broad device connectivity, all through a single USB4 or Thunderbolt 4 connection.
High-Performance Display and Networking
Connect up to three 4K 60Hz displays via a single USB4 or Thunderbolt 4 port, leveraging full GPU capabilities without software or compression. Boost productivity with fast 2.5GbE networking, supporting PXE Boot and Wake-on-LAN for streamlined IT-managed deployments.
Comprehensive Connectivity and Power
The dock offers three video outputs (HDMI or DisplayPort), four USB-A ports (10Gbps), two USB-C ports (10Gbps and 5Gbps), and delivers up to 100W of host charging. A 180W power adapter ensures all ports operate at full capacity.
Driverless Deployment with Secure Mounting Options
Driverless setup with native Windows and ChromeOS support. Built-in lock slots and VESA or surface mounting options (accessories sold separately) provide secure, flexible installation.
Enterprise Management Tools
StarTech.com Connectivity Tools offer practical utilities to support device management and increase productivity in modern IT environments. With features like MAC address pass-through, Wi-Fi auto switch, and USB device monitoring, the software helps IT teams streamline deployment and strengthen security across diverse setups.
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | USB4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| HDMI ports quantity | 3 |
| DisplayPorts quantity | 3 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Wake-on-LAN ready | Yes |
| Full duplex | Yes |
| Performance | |
| Card reader integrated | No |
| Data transfer rate | 40 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Number of displays supported | 3 |
| Maximum refresh rate | 144 Hz |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington, Nano |
| Product colour | Grey |
| UASP support | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| Input current | 2.5 A |
| Output voltage | 20 V |
| Output current | 9 A |
| Power consumption (max) | 180 W |
| Compatible power plug types | US |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Other operating systems supported | ChromeOS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 70 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 95 mm |
| Depth | 210 mm |
| Height | 34 mm |
| Weight | 1.06 kg |
| Packaging data | |
| Package width | 145 mm |
| Package depth | 235 mm |
| Package height | 99 mm |
| Package weight | 1.4 kg |
| Packaging content | |
| Cables included | USB Type-C |
| AC adapter included | Yes |
| Technical details | |
| Compliance certificates | CE |
| Other features | |
| Chipset | VIA - VL830, VIA - VL163, VIA - VL162, VIA - VL105, Realtek - RTL8156BS, Realtek - ALC4030U, Parade - PS8469 |
| Warranty | |
| Base Warranty | Non Non |
