USB Tc3.2 Gen 1 Uni Trip 4k Cd 60w
ITCurry #: M4192809 | Article #: CSV-1562-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

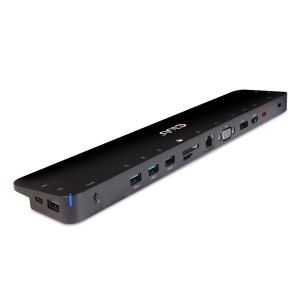

The CSV-1562 is a USB C 3.2 Gen1 Universal Triple 4K Charging Docking Station. The Universal Charging Dock is designed to cater for your most versatile connectivity demands. The USB 3.2 Gen 1 interface supports up to 5 Gbps bandwidth, which enables you to enjoy super speed data transmission between your favourite USB peripherals and allows for up to three external 4K displays simultaneously in addition it offers a wired network connection as well as audio and micro¬pone output. By adopting Power Delivery charging technology, the upstream charging function through USB-C 3.2 Gen1 interface, you can charge a connected cell phone / tablet / laptop. Furthermore, the added Kensington Lock option allows you to secure your dock as well. All it needs is a free USB 3.2 Gen 1 port on your Laptop or Ultrabook to connect to the Universal Triple 4K Charging Docking Station via a single USB cable.
| Ports & interfaces | |
| Connectivity technology | Docking |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery | Yes |
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 2 |
| Microphone in | Yes |
| Combo headphone/mic port | No |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| Line-in | No |
| Line-out | No |
| USB connector type | USB Type-A, USB Type-C |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Number of displays supported | 3 |
| Product colour | Black |
| LED indicators | Power |
| Charging function | Yes |
| Country of origin | China |
| Compatibility | Lenovo Dell Acer Asus. MSI. Toshiba Apple HP Razer |
| Certification | FCC, CE and EMI |
| Software | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Mac compatibility | Yes |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Width | 250 mm |
| Depth | 83 mm |
| Height | 43 mm |
| Weight | 399 g |
| Packaging data | |
| Package width | 298 mm |
| Package depth | 92 mm |
| Package height | 150 mm |
| Package weight | 282 g |
| Packaging content | |
| Mounting brackets included | No |
| Travel case | No |
| Cables included | USB Type-C to USB Type-C |
| AC adapter included | Yes |
| Manual | Yes |
| Drivers included | Yes |
| Anti-slip pads | No |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| USB data transfer rates | 5000 Mbit/s |
| Warranty | |
| Base Warranty | Non Non |
