| Specifications |
General
| Width |
22.6 cm |
| Depth |
22.6 cm |
| Height |
4.9 cm |
| Device Type |

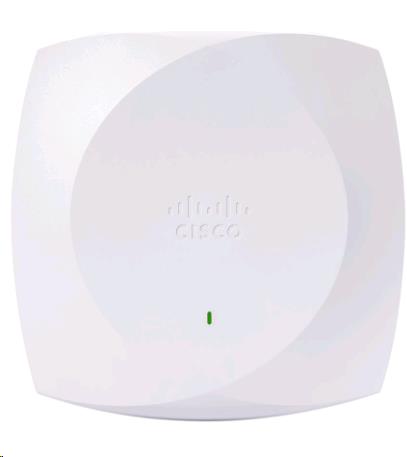

Radio access point |
| Ruggedized Design |
Indoor |
| Weight |
1.52 kg |
Expansion / Connectivity
| Interfaces |
1 x 100M/1G/2.5/5 Gigabit Ethernet - RJ-45 1 x management - RJ-45 1 x USB 2.0 |
Networking
| Form Factor |
External |
| Connectivity Technology |
Wireless |
| Status Indicators |
Status |
| Spread Spectrum Method |
OFDMA |
| Frequency Band |
2.4 GHz, 5 GHz, 6 GHz |
| Line Coding Format |
4096 QAM, 1024 QAM, OFDMA |
| Data Link Protocol |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n, Bluetooth 5.3 LE |
| Features |
Multi-Link Operation (MLO), preamble puncturing, Target Wake Time (TWT), BSS Coloring, Maximum Ratio Combining (MRC), packet aggregation A-MPDU, packet aggregation A-MSDU, Dynamic Frequency Selection (DFS), cyclic shift diversity (CSD), beamforming technology, 4x4 MU-MIMO technology, 802.1x authentication, image signing, secure boot, Cisco Trust Anchor module |
| Encryption Algorithm |
WPA2, WPA3, AES, 128-bit AES-GCMP, 256-bit AES-GCMP, 256-bit AES-CCMP, SHA-256 |
| Authentication Method |
EAP-TLS, EAP-TTLS, PEAPv0, PEAPv1, EAP-FAST, EAP-GTC, EAP-SIM, EAP-MSCHAPv2, MS-CHAP v.2, Extensible Authentication Protocol (EAP) |
| Compliant Standards |
IEEE 802.11d, IEEE 802.11h, IEEE 802.11i, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, Wi-Fi CERTIFIED 6, Wi-Fi CERTIFIED 6E, Wi-Fi CERTIFIED 7 |
Miscellaneous
| Compliant Standards |
IEC 60950-1, IEC 62368-1 Third Edition, EN 60950-1, EN 62368-1 Third Edition, UL 60950-1, UL 62368-1 Third Edition, CAN/CSA-C22.2 No. 60950-1, CAN/CSA-C22.2 No. 62368-1 Third Edition, AS/NZS 60950-1, AS/NZS 62368-1 Third Edition, UL 2043, Class 3, CISPR 32:2015+AMD1:2019, EN 55032:2015/A11:2020, EN IEC 61000-3-2:2019/A1:2021, EN 61000-3-3:2013+A1:2019, AS/NZS CISPR32:2015+AMD1:2020, FCC 47 CFR part 15 B class B, ICES-003 issue 7 Class B, VCCI-CISPR 32:2016, CNS 13438 (2006), KS C 9832:2019, QCVN 118:2018/BTTTT, EN 55035:2017+A11:2020, KS C 9835:2019, EN 301 489-1 V2.2.3 (2019-11), EN 301 489-17 V3.2.4 (2020-09), QCVN 18:2014, QCVN 112:2017/BTTTT, KS X 3124:2020, KS X 3126:2020, EN 61000-6-1:2019, EN 60601-1-2:2015 + A1:2021, EN 300 328 V2.2.2, EN 301 893 V2.1.1, Draft EN 303 687 V0.0.14, AS/NZS 4268:2017, FCC CFR47 Part 15 C, FCC Part 15.247, FCC Part 15.407, RSP-100, RSS-GEN, RSS-247, LP0002, Japan Std. 66, Japan Std. 71, EN 50385:2017, AS/NZS 2772:2016, 47 CFR Part 2.1091, RSS-102, WEEE |
| Pricing Type |
Ready-to-Go |
Power
| Power Over Ethernet (PoE) Supported |
UPOE |
| Power Device |
External power adapter / power injector (not included) |
Software / System Requirements
| OS Required |
Cisco IOS XE 17.18.2 or later |
Environmental Parameters
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
50 °C |
| Humidity Range Operating |
10 - 90% (non-condensing) |
Processor / Memory / Storage
| Flash Memory |
16 GB |
| RAM |
4096 MB |
Aerial
| Antenna |
Internal |
| Directivity |
Omni-directional |
Internet of Things (IoT)
| Internet of Things (IoT) Compatible |
Yes |
| Communications Technology |
Bluetooth 5.3 LE |
|
