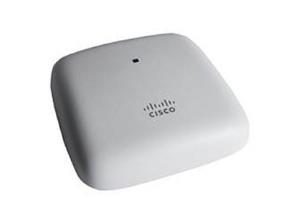

Aironet 1815i - Radio Access Point - Wi-Fi 5 - 2.4 GHz, 5 GHz - Refurbished
ITCurry #: 0918Z953 | Article #: AIR-AP1815I-EK9-RF-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The Cisco Aironet 1815i delivers industry-leading wireless performance with support for the latest Wi-Fi standard, IEEE’s 802.11ac Wave 2. It also meets the growing requirements of wireless networks by delivering a better user experience.
The 1815i extends support to a new generation of Wi-Fi clients, such as smartphones, tablets, and high-performance laptops that have integrated 802.11ac Wave 1 or Wave 2 support.
By adhering to the 802.11ac Wave 2 standard, the 1815i offers a data rate of up to 867 Mbps on the 5-GHz radio. This exceeds the data rates offered by access points that support the 802.11n standard. It also enables a total aggregate dual-radio data rate of up to 1 Gbps. This provides the necessary foundation for enterprise and service provider networks to stay ahead of the performance expectations and needs of their wireless users.
Due to its convenience, in recent years corporate users have increasingly preferred wireless access as the form of network connectivity. Along with this shift, there is an expectation that wireless should not slow down users’ day-to-day work, but should enable a high-performance experience while allowing users to move freely. The 1815i delivers industry-leading performance for highly secure and reliable wireless connections and provides a robust mobility end-user experience. Table 1 lists the features and benefits of the 1815i.
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.412 - 2.472, 5.745 - 5.805 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.11r, IEEE 802.1x |
| Number of users | 400 user(s) |
| Channels quantity | 17 channels |
| Channel bandwidth | 80 MHz |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| VLAN support | Yes |
| Maximal-Ratio Combining (MRC) | Yes |
| Cyclic Shift Diversity (CSD) | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| Data unit aggregation | A-MSDU, A-MPDU |
| Transmitting power | 20 dBmW |
| Security | |
| Security algorithms | 802.1x RADIUS, AES, EAP-FAST, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, WPA, WPA2 |
| MAC address filtering | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| WAN connection | Ethernet (RJ-45) |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Power consumption (max) | 8.3 W |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| LED indicators | Yes |
| Antenna | |
| Antenna type | Internal |
| Antenna gain level (max) | 4 dBi |
| Performance | |
| Built-in processor | Yes |
| Processor frequency | 710 MHz |
| Flash memory | 256 MB |
| Internal memory | 1024 MB |
| Certificates | |
| Certification | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, UL 2043, IEC 60950-1, EN 60950-1, FCC Part 15.247, 15.407, RSS-247 (Canada), EN 300.328, EN 301.893 (Europe), ARIB-STD 66 (Japan), ARIB-STD T71 (Japan), EMI and susceptibility (Class B), FCC Part 15.107 and 15.109, ICES-003 (Canada), VCCI (Japan), EN 301.489-1 and -17 (Europe), EN 50385 |
| Weight & dimensions | |
| Width | 150.8 mm |
| Depth | 150.8 mm |
| Height | 33 mm |
| Weight | 400 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -30 - 70 øC |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4572 m |
| Warranty | |
| Base Warranty | Non Non |
