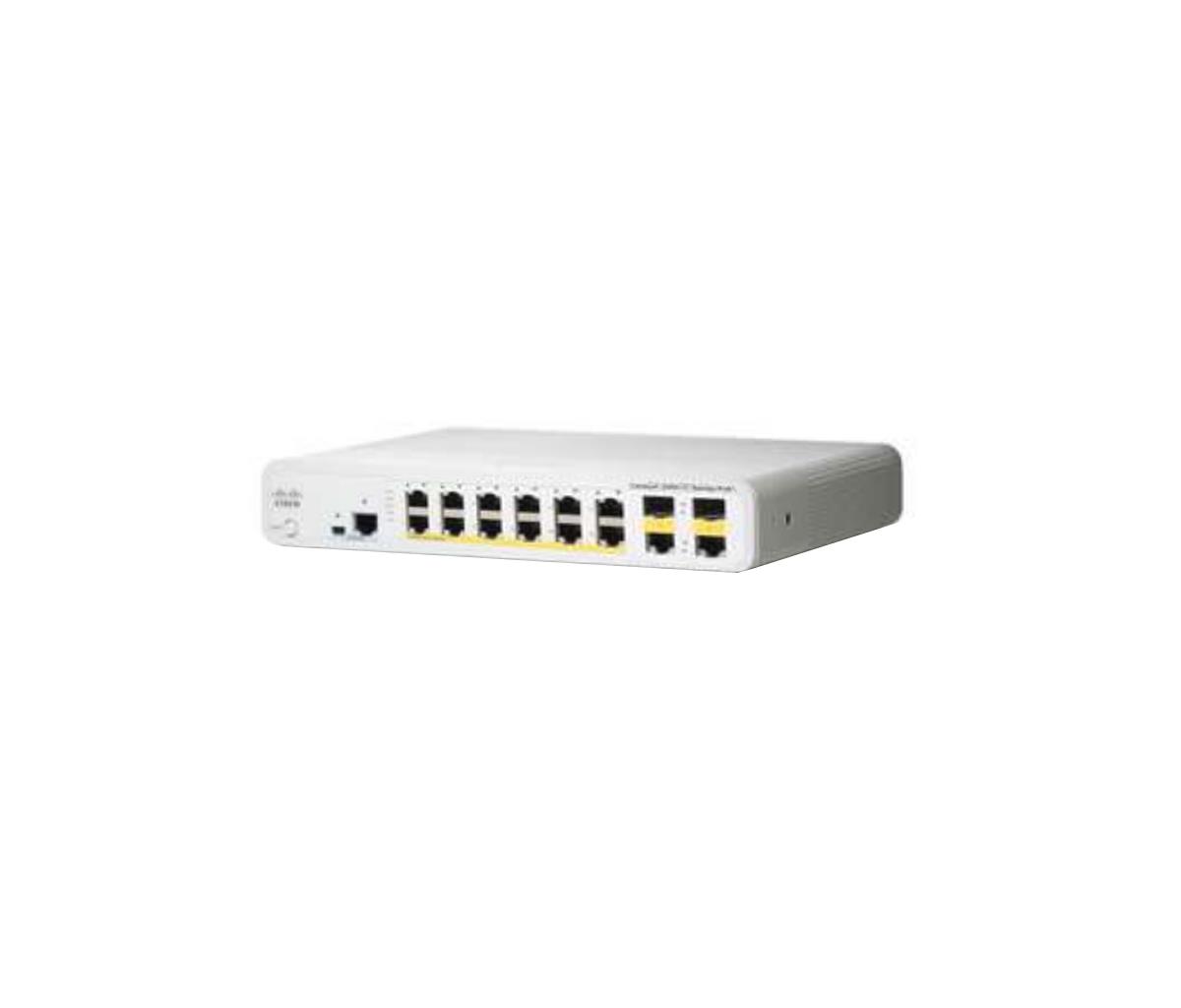

Cisco Catalyst 2960-C Compact Switches
Cisco® Catalyst® compact switches easily extend an intelligent, fully managed Cisco Catalyst wired switching infrastructure, including end-to-end IP and Borderless Network services, with a single Ethernet cable or fiber from the wiring closet. These attractive, small form-factor Fast Ethernet switches are ideal for connecting multiple devices on the retail sales floor; in classrooms, hotels, and factories; and for extending wireless LAN networks: wherever space is at a premium and multiple cable runs could be challenging.
Cisco Catalyst 2960-C Compact Switches highlights:
- Extend a highly secure, intelligent, managed Cisco Catalyst infrastructure with a single Ethernet cable or fiber from the wiring closet;
- Support for advanced security and services, including voice, video, and Cisco Borderless Network services, to remote endpoints;
- Power over Ethernet (PoE) pass-through enables the compact switch to draw power from the wiring closet and pass it to end devices;
- Attractive, small form factor and fanless operation fit in confined spaces where multiple cable runs could be challenging;
- Easy to deploy, manage and extend the network loop free;
- Enhanced limited lifetime hardware warranty.
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Traffic classification | Yes |
| ARP inspection | Yes |
| System event log | Yes |
| MIB support | RMON I/II, IF-MIB, Bridge-MIB, Eth-MIB |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 12 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Combo SFP ports quantity | 2 |
| SFP/SFP+ slots quantity | 2 |
| Console port | RS-232 |
| USB 2.0 ports quantity | 1 |
| Network | |
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 1000BASE-TX, 100BASE-T, 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| IP routing | Yes |
| Routing entries | 4000 |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN |
| Number of VLANs | 255 |
| Optical fiber | |
| Fiber ethernet cabling technology | 1000BASE-LH, 1000BASE-LX, 1000BASE-SX, 1000BASE-ZX, 100BASE-BX, 100BASE-FX, 100BASE-LX |
| Data transmission | |
| MAC address table | 8000 entries |
| Jumbo frames support | Yes |
| Security | |
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS, SSH |
| Static port security | Yes |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | IGMPv3, SNMPv1/2c/3 |
| Switching protocols | SDM |
| Data link protocols | UDLD |
| Supported network protocols | IPv4, IPv6, TCP, ICMP, UDP, TFTP, ARP, MVR, NTP, LLDP, ICMP, OSPF, BOOTP, Telnet |
| Design | |
| Rack mounting | No |
| Stackable | No |
| Product colour | White |
| LED indicators | LAN, Power, Status |
| Safety | UL, CAN/CSA, EN, IEC, CE, GB, IEC |
| Performance | |
| Internal memory | 128 MB |
| Flash memory | 64 MB |
| Mean time between failures (MTBF) | 357027 h |
| Power | |
| Power supply included | Yes |
| Number of power supply units | 1 |
| Input current | 1.6 - 8 A |
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 158 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 12 |
| Total Power over Ethernet (PoE) budget | 124 W |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 øC |
| Storage temperature (T-T) | -25 - 70 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 4000 m |
| Heat dissipation | 91 BTU/h |
| Weight & dimensions | |
| Width | 269 mm |
| Depth | 213 mm |
| Height | 44.4 mm |
| Weight | 1.86 kg |
| Certificates | |
| Certification | FCC, EN, AS/NZS, VCCI, KCC, ANATEL, CCC, GOST |
| Warranty | |
| Base Warranty | Non Non |
