Product Information

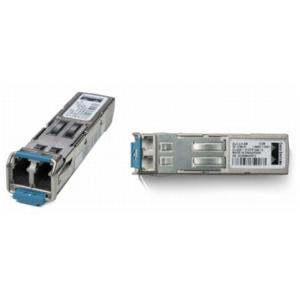

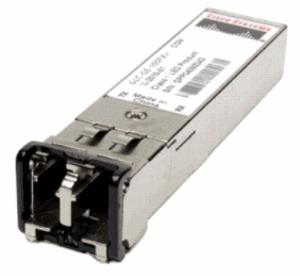

The Cisco® 100BASE-X Small Form-factor Pluggable (SFP) is a hot-swappable input/output device that plugs into a Fast Ethernet port or slot, linking the port with the network.
Main features:
- Hot-swappable when deployed, the switch or router does not have to reboot.
- Supports the "pay-as-you-populate" model.
- Interchangeable with other 100BASE-X SFPs on the same line card.
- Supports the Cisco quality ID feature that enables the switch or router to identify whether or not the SFP is a Cisco qualified SFP.
- Optically interoperable with respective 100BASE-X Ethernet interfaces on the same link.
Performance | |
Maximum transfer distance | 10000 m |
Wavelength | 1310 nm |
Design | |
Compliance industry standards | IEEE 802.3ah Draft 3.0, IEEE 802.3 |
Safety | Laser Class 1 21CFR1040 |
Operational conditions | |
Operating temperature (T-T) | 0 - 70 øC |
Storage temperature (T-T) | -40 - 85 øC |
Logistics data | |
Harmonized System (HS) code | 85176990 |
Other features | |
Transmit power range | -8 - -15 dBmW |
Connector(s) | Dual LC |
Fiber type | SMF |
Warranty | |
Base Warranty | Non Non |
