Multi Mode Fiber Media Converter Sc 10/100 mbps 2km

ITCurry #: 75645625 | Article #: ET90110SC2
Price:
75.42 Ex VAT
Shipping:
FREE Shipping on orders over 100€ Ex VAT.
Out of Stock. Contact Us!
Email us for assistance

Related products

slide 6 to 10 of 15

Product Information

Convert and extend a 10/100 Mbps Ethernet connection up to 1.2 miles/2km over Multi Mode SC fiber

The ET90110SC2 10/100 Mbps Multimode Fiber Media Converter SC (2 km) lets you extend a Fast Ethernet network (10/100Mbps) over multimode fiber, at distances up to 2 km (1.2 miles).

A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet-to-fiber solution, featuring an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

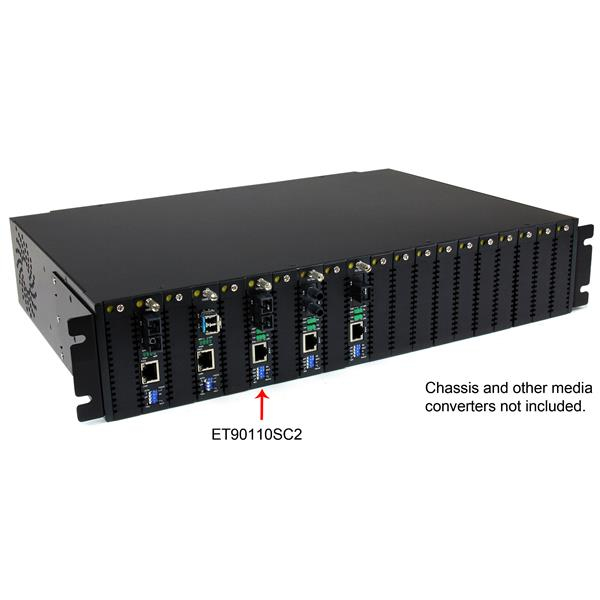

For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Link loss forwarding, remote status monitoring help ensure maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments

Network
Maximum data transfer rate 200 Mbit/s
Networking standards IEEE 802.3, IEEE 802.3u
Auto MDI/MDI-X Yes
Duplex system Full, Half
Ports & interfaces
Connectivity technology Wired
Ethernet LAN (RJ-45) ports 1
Fiber ports quantity 1
Fiber optic connector SC
Performance
Maximum transfer distance 2000 m
Wavelength 1310 nm
Wavelength-division multiplexing (WDM) No
Fiber mode structure Multi-mode
Design
Internal No
Product colour Black
Housing material Steel
Certification CE, FCC
Warranty
Base Warranty Non Non
Power
Input voltage 100 - 240 V
Output voltage 12 V
Output current 1.6 A
Power over Ethernet (PoE) No
Power plug type Type M
Weight & dimensions
Width 87 mm
Depth 153 mm
Height 24 mm
Weight 600 g
Packaging data
Package width 190 mm
Package depth 233 mm
Package height 77 mm
Package weight 779 g
Packaging content
AC adapter included Yes
Manual Yes
Technical details
Compliance certificates RoHS
Logistics data
Harmonized System (HS) code 85176990
Other features
Dimensions (WxDxH) 95 x 160 x 20 mm
Full duplex Yes
