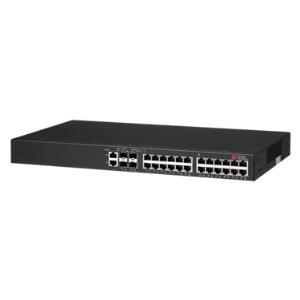

Switch Icx6450-24 24 Port 1g With 10g Sfp+
ITCurry #: M1993916 | Article #: ICX6450-24-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Brocade ICX 6430 and 6450 Switches deliver enterprise-class stackable switching at an entry-level price. Designed for small to medium-size enterprises, branch offices, and distributed campuses, these intelligent, scalable edge switches are fully featured yet affordable–stretching IT budgets without compromising on performance and reliability.
Today's organizations expect their enterprise campus LANs to deliver more services to more users at a lower cost. These services include next-generation business applications as well as anytime, anywhere access for mobile devices. At the same time, campus LANs must be able to scale easily to meet future demands and efficiently evolve within dynamic business environments.
Brocade ICX 6430 and 6450 Switches provide feature-rich enterprise-class stackable LAN switching solutions to meet the scalability and reliability demands of evolving campus networks–at an affordable price. The Brocade ICX 6430 and 6450 are available in 24- and 48-port 10/100/1000 Mbps models and 1 Gigabit Ethernet (GbE) or 10 GbE dual-purpose uplink/stacking ports–with or without IEEE 802.3af and 802.3at Power over Ethernet/Power over Ethernet Plus (PoE/PoE+–to support enterprise edge networking, wireless mobility, and IP communications.
Highlights include:
- Offers enterprise-class stackable switching at an entry-level price, allowing organizations to buy what they need now and easily scale as demand grows and new technologies emerge
- Delivers unprecedented feature/price value for enterprise applications, including Unified Communications (UC) and mobility with 10 Gigabit Ethernet (GbE) and PoE/PoE+
- Provides unmatched availability for low-cost switching with redundant uplink/stacking ports, hitless stacking failover, and configurable power redundancy
- Simplifies network operations and protects investments with Brocade HyperEdge™ technology*, enabling single-point network lifecycle management and advanced services sharing across a heterogeneous stack
- Includes the Brocade Assurance Limited Lifetime Warranty and three years of technical support
Built for Maximum Cost-efficiency and Investment Protection
With Brocade ICX 6430 and 6450 Switches, organizations can buy only what they need today and easily scale user ports and services as their network requirements evolve. Brocade offers maximum investment protection through flexible software licensing options that bring advanced services and performance to lower-cost ports.
In particular, Brocade HyperEdge technology will allow premium switch features and services to be shared with entry-level switches across heterogeneous switch stacks. The Brocade ICX switches also are hardware-ready for easy software implementation (software available in a future release) of emerging security (IEEE 802.1AE MACSec) and energy savings (IEEE 802.3az EEE) standards, helping to protect today's investments while supporting tomorrow's needs.
Brocade ICX 6430 and 6450 Switches come with three years of technical support from the Brocade Technical Assistance Center and free software updates. With these capabilities, organizations gain peace of mind while freeing up IT budget and resources to grow their businesses.
Automated Deployment and Management
Brocade ICX 6430 and 6450 Switches help simplify network deployment and management by enabling auto-discovery of new Brocade ICX switches within the stack. IT organizations can auto-configure switches using pre-set instructions on the network. To further simplify management, these stacked switches collectively utilize only a single IP address and offer transparent forwarding across the stack.
By embedding sFlow capabilities into the Brocade ICX 6450, Brocade delivers an "always-on" monitoring technology that operates with wire-speed performance. sFlow dramatically reduces implementation complexity compared to traditional network monitoring solutions that rely on mirrored ports, probes, and line-tap technologies. With HyperEdge technology, further automation will be available with single-point network lifecycle management for campus LANs–including initialization, maintenance, troubleshooting, and upgrades. This type of capability will enable network managers to push campus-wide common policies out to the network edge with a single CLI command, minimizing the chance of human error and enhancing compliance enforcement.
High Availability and Resiliency
Brocade Ethernet switch stacking technology helps IT organizations meet growing user demands by delivering high availability through real-time state synchronization across the stack and instantaneous hitless failover support. In addition, organizations can use hot-insertion and removal of stack members to avoid interrupting network service when adding or replacing a switch. High-performance Link Aggregation Groups (LAGs) increase 10 GbE uplink bandwidth and redundancy to the core, giving users uninterrupted high performance to support the most demanding applications. Brocade ICX 6430 and 6450 Switches also offer an external power supply for added resiliency and increased PoE/PoE+ port availability.
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| SFP/SFP+ slots quantity | 2 |
| SFP module slots quantity | 2 |
| SFP+ module slots quantity | 2 |
| Console port | RJ-45 |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Number of VLANs | 4096 |
| Data transmission | |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 104 Gbit/s |
| MAC address table | 8000 entries |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
| Security | |
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Safety | EN 55022: 2006+A1: 2007 Class A, EN 61000-3-2: 2006+A1:2009+A2:2009 Class A, EN 61000-3-3: 2008, EN 61000-6-1: 2007, EN 61000-6-3: 2007, EN 55024: 1998+A1:2001+A2:2003, EN 300 386 (V1.4.1): 2008, IEC 61000-4-2: 2008 ED. 2.0, IEC 61000-4-3: 2006+A1:2007+A2:2010 ED. 3.2, IEC 61000-4-4: 2004+A1:2010 ED. 2.0, IEC 61000-4-5: 2005 ED. 2.0, IEC 61000-4-6: 2008 ED. 3.0, IEC 61000-4-8: 2009 ED. 2.0, IEC 61000-4-11: 2004 ED. 2.0 |
| Performance | |
| Noise level | 37.9 dB |
| Mean time between failures (MTBF) | 906243 h |
| Power | |
| Power source | AC |
| Number of power supply units | 1 |
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 525 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Storage relative humidity (H-H) | 5 - 95% |
| Non-operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Weight | 3.35 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Dimensions (WxDxH) | 443 x 240 x 43.4 mm |
| Connectivity technology | Wired |
| Networking features | Gigabit Ethernet |
| Wi-Fi | No |
| Power LED | Yes |
| Input frequency | 50 - 60 Hz |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Warranty | |
| Base Warranty | Non Non |
