Product Information

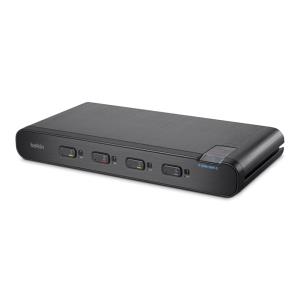

DisplayPort is a complex protocol with the capability to transfer various types of information beyond just display signals, thereby presenting specific security challenges. In 2014, Belkin was the first to introduce Common Criteria products in the market which supported DisplayPort systems. Belkin is now offering its lineup of Belkin Advanced Secure Ultra High Definition KVMs, compliant with the latest security standards and perfect for applications that require high-resolution support.
Ports & interfaces | |
Number of computers controlled | 4 |
Keyboard port type | USB, PS/2 |
Mouse port type | USB, PS/2 |
Video port type | HDMI/DisplayPort |
HDMI ports quantity | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 1 |
PS/2 ports quantity | 2 |
Audio connections | Yes |
Headphone outputs | 1 |
DC-in jack | Yes |
Network | |
Ethernet LAN | No |
Performance | |
Maximum resolution | 3840 x 2160 pixels |
Maximum digital resolution | 3840 x 2160 pixels |
Design | |
Rack mounting | No |
Product colour | Black |
LED indicators | Yes |
Certification | FCC Class B certified, UL, RoHS, ICES, EAL 2+ |
Display | |
Built-in display | No |
Power | |
Input voltage | 100-240 V |
External power adapter | Yes |
Warranty | |
Base Warranty | Non Non |
Sustainability | |
Compliance certificates | RoHS |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 øC |
Storage temperature (T-T) | -20 - 60 øC |
Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions | |
Width | 317.5 mm |
Depth | 157.5 mm |
Height | 63.5 mm |
Packaging data | |
Package weight | 2.2 kg |
Logistics data | |
Harmonized System (HS) code | 85176200 |
