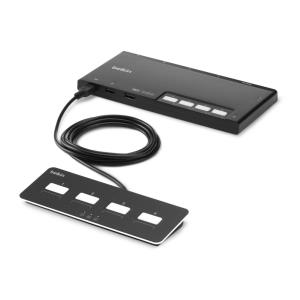

4-port Single Head Hdmi Modular Secure KVM
ITCurry #: 0600J713 | Article #: F1DN104MOD-HH-4-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Belkin Secure Modular KVM Switch Series
The Belkin Secure Modular KVM and KM Switch Series pack the latest in Common Criteria and NIAP Protection Profile version 4.0 required isolation for peripheral switching devices in the smallest form factor available. An included remote control and innovative mount options allow administrators to craft operator stations to meet security requirements while decluttering the desk. A suite of purpose-built cables provides universal video support, allowing any computer to be interfaced with any monitor on any channel of the KVM while accommodating most generations of video standards. Optical data diodes and embedded peripheral emulation allow operators to safely share peripherals across multiple security enclaves without exposing potential vectors for attack. These US-Manufactured and TAA-compliant secure KVM and KM series are ideal for use in IT environments that demand rigorous cybersecurity provisions—including government, military, and healthcare applications.
The Belkin Difference
- Small footprint for 2 or 4 port, single or dual monitor KVM
- Futureproof design supports current and upcoming video standards up to 4k @ 30Hz with replaceable TAA-compliant cables
- Included remote control supports full KVM control while decluttering the desk
- Optional mounting hardware supports VESA mounting and under desk mounting
- Certified for NIAP Protection Profile 4.0 to meet the highest security standards
- US-based free technical support
| Ports & interfaces | |
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| USB connector type | USB Type-A |
| DC-in jack | Yes |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Number of users | 1 user(s) |
| Number of displays supported | 1 |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| Housing material | Aluminium |
| Wired remote switch | Yes |
| Cable length | 0.9 m |
| Maximum cable length | 1.8 m |
| LED indicators | Yes |
| Certification | FCC Class A UL CE RoHS ICES RCM |
| Display | |
| Built-in display | No |
| Power | |
| Power source | AC |
| Input voltage | 100 - 240 V |
| Output voltage | 12 V |
| Output current | 2.5 A |
| External power adapter | Yes |
| Packaging content | |
| Cables included | HDMI |
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Warranty | |
| Base Warranty | Non Non |
