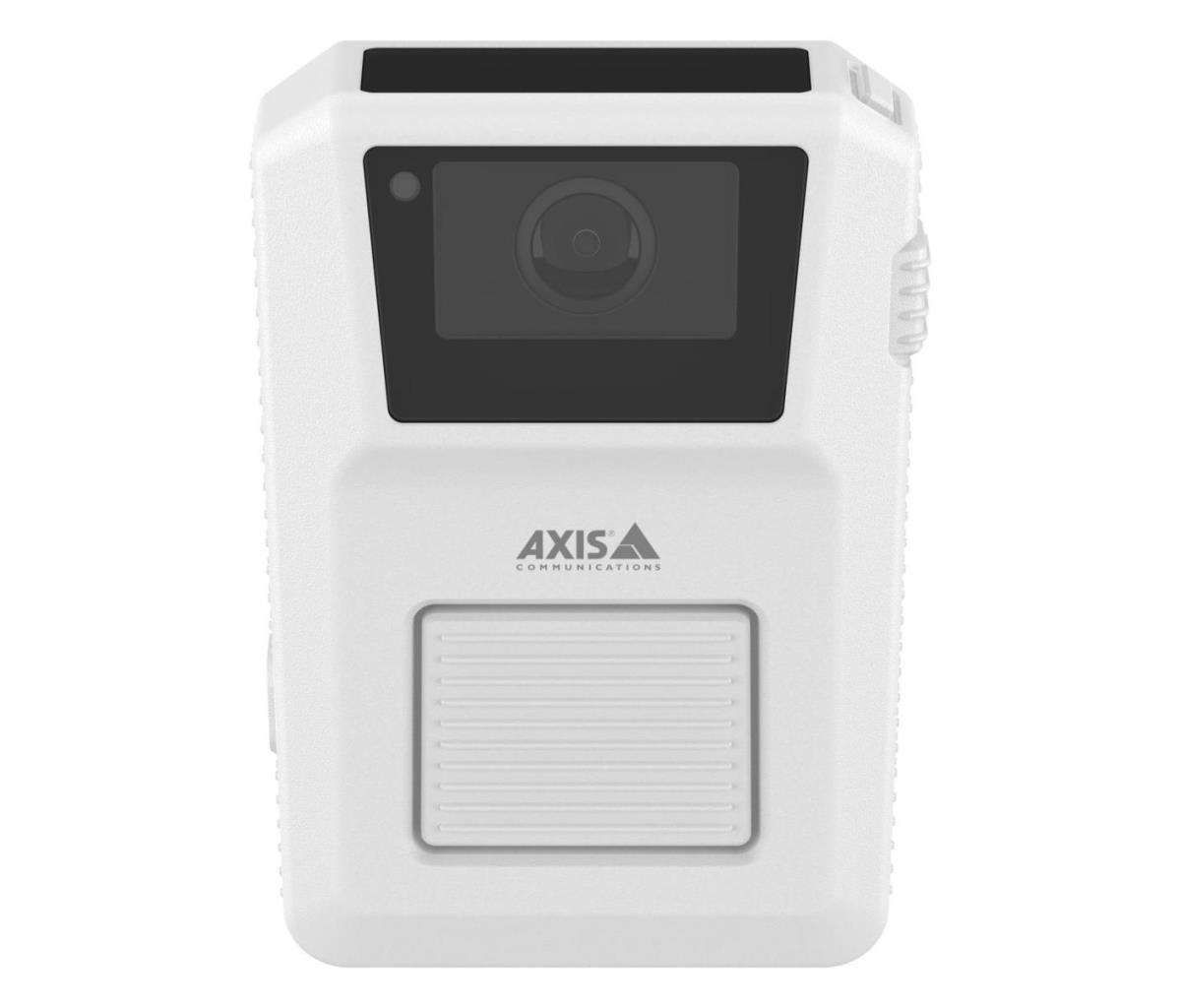

W120 Body Worn Camera White
ITCurry #: 13836466 | Article #: 02681-002-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
AXIS W120 Body Worn Camera
AXIS W120 Body Worn Camera makes wearers feel they're not alone. Thanks to on-demand streaming, and location tracking, someone always knows what’s happening – and where. Plus, AXIS W120 plugs into the system of your choice, and you can manage video your way.
Connected and powerful
AXIS W120 Body Worn Camera offers live streaming via inbuilt LTE/4G, so you can always connect using AXIS Body Worn Live. At the click of a button, you can stream sharper-than-ever images and clear audio with advanced noise and wind suppression. It provides location tracking and it’s robust and waterproof. AXIS W120 buffers up to 120 seconds, so you’ll catch the whole encounter. It has stealth mode for surreptitious recording. And a battery life of up to 15 hours, charging on-the-go with any USB-C charger, and fast offloading make it ready to go when you are, and a snap to put away.
Becomes a part of your – scalable – system
AXIS W120 is built on open architecture for seamless integration with the video or evidence management system you choose. You can use it with your current Axis solution, or we can provide you with a complete end-to-end solution that includes AXIS Camera Station VMS. Or you can use AXIS W120 with a third-party VMS or EMS either on-site or in the cloud. Plus, the cost-efficient docking stations with a separate system controller makes it easy to scale up whenever you need to. So, you decide how and where you want to manage your video evidence – while protecting the value of your existing investments.
The secure choice
This camera features cybersecurity provisions that are second to none. Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. Data at rest and in-transfer is encrypted with AES 256 and HTTP with TLS respectively. And only authorized software works, thanks to secure boot. AXIS W120 uses CJIS approved AES 256bit encryption via its internal hardware. On top of all that, for live streaming, you get full end-to-end XChaCha20-Poly1305 encryption.
Self-assign
By using self-assign, the camera user assigns and pick up any available body worn camera using an RFID tag. The user simply swipes their ID card or tag and will directly get a camera allocated and configured with the specific user information. When docking the camera, after the work shift, it automatically makes the camera available for the next user. This allows different work shifts to share a pool of cameras streamlining the number of cameras needed while keeping the possibility to have fully personalized user profiles. With self-assign you get the flexibility to install your system to best meet your specific needs. The docking stations can be placed either in the same room or in different locations, you decide. Independent of how your system is setup the assigned camera will always be where you scan the RFID tag.
AXIS Body Worn Assistant
AXIS Body Worn Assistant is an app for iPhone or Android that gives you instant access to stored recordings?on your body worn camera. You can start your reporting already out in the field by categorising a recording and attaching?notes to it.?All added information becomes part of the metadata and is automatically transferred of the camera when?docked. The Live View function assists you to position the camera correctly on your body and can be used to view live action from around a corner or behind a barrier.?By using?the help, you?can access?user documentation?on how to operate the camera.
| Camera | |
| Sensor type | CMOS |
| Maximum resolution | 1920 x 1080 pixels |
| Minimum illumination | 0.1 lx |
| Supported video modes | 720p, 1080p |
| Vertical field of view | 76ø |
| Viewing angle, horizontal | 137ø |
| Camera shutter speed | 1/20000 - 1/25 s |
| Fixed focal length | 2.3 mm |
| Maximum aperture number | 2.1 |
| Wide Dynamic Range (WDR) | Yes |
| Maximum frame rate | 60 fps |
| Image stabilizer | Yes |
| Image stabilizer type | Electronic Image Stabilization (EIS) |
| Design | |
| Product type | Torso body camera |
| Housing colour | Black, White |
| Housing material | Plastic |
| International Protection (IP) code | IP67 |
| Network | |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| Mobile network generation | 4G |
| SIM card type | NanoSIM |
| Ports & interfaces | |
| Connectivity technology | Wireless |
| USB port | Yes |
| USB port type | USB Type-C |
| Performance | |
| Internal memory | 64 GB |
| Built-in display | Yes |
| Display diagonal | 2.44 cm (0.96") |
| Display resolution | 160 x 80 pixels |
| Features | |
| GPS (satellite) | Yes |
| GLONASS | Yes |
| Video compression formats | AVC, H.264, MPEG4 |
| Audio codecs | AAC-LC |
| Sample rate | 48 kHz |
| Accelerometer | Yes |
| Gyroscope | Yes |
| Live streaming | Yes |
| Power | |
| Power source type | Battery |
| Battery capacity | 3600 mAh |
| Battery life (max) | 15 h |
| Weight & dimensions | |
| Width | 67.7 mm |
| Depth | 34 mm |
| Height | 100.2 mm |
| Weight | 200 g |
| Packaging content | |
| Battery included | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 50 øC |
| Storage temperature (T-T) | -20 - 45 øC |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Warranty | |
| Base Warranty | Non Non |
| Technical details | |
| Compliance certificates | REACH, RoHS |
| Logistics data | |
| Quantity per pack | 5 pc(s) |
