Product Information

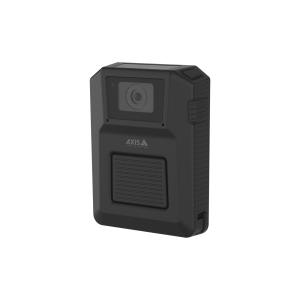

AXIS W101 Body Worn Camera is a robust and easy-to-use body worn camera featuring the Klick FastTM mounting system. It delivers clear audio with noise suppression and exceedingly sharp images in every frame. Axis Zipstream technology lowers bandwidth and storage requirements without compromising video quality. AXIS W101 offers up to 17 hours of battery time and charging with any USB-C® charger. Recording is activated automatically upon unholstering and person down. And the location of the camera can be continuously recorded with the built-in GNSS receiver (location tracking). Built-in Bluetooth®, and network technologies provide wireless communication with, for example, the AXIS Body Worn Assistant mobile app.
Camera | |
Sensor type | CMOS |
Maximum resolution | 1920 x 1080 pixels |
Minimum illumination | 0.1 lx |
Vertical field of view | 82ø |
Viewing angle, horizontal | 141ø |
Camera shutter speed | 1/32000 - 1/25 s |
Fixed focal length | 2.1 cm |
Maximum frame rate | 30 fps |
Design | |
Housing colour | White |
Housing material | Plastic |
International Protection (IP) code | IP67 |
Network | |
Wi-Fi | Yes |
Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Bluetooth | Yes |
Bluetooth version | 4.1 |
Ports & interfaces | |
Connectivity technology | Wireless |
Performance | |
Internal storage capacity | 64 GB |
Features | |
Video compression formats | AVC, H.264, MPEG4 |
Accelerometer | Yes |
Gyroscope | Yes |
Certification | EN 55032 Class B, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-3(B)/NMB-3(B), RCM AS/NZS CISPR 32 Class B EN 300328, EN 301489-1, EN 301489-17, EN 303413, FCC Part 15 Subpart C, RSS-247 IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, IEC/EN 60529 IP67 MIL-STD-810H (Method 501.7, 503.7, 505.7, 509.7, 512.6, 516.8) |
Power | |
Power source type | USB |
Battery capacity | 3600 mAh |
Battery life (max) | 17 h |
Battery life (story mode) | 12 h |
Weight & dimensions | |
Width | 68 mm |
Depth | 27 mm |
Height | 94 mm |
Weight | 179 g |
Packaging content | |
Mounting kit | Yes |
Operational conditions | |
Operating temperature (T-T) | -20 - 55 øC |
Storage temperature (T-T) | -20 - 45 øC |
Operating relative humidity (H-H) | 10 - 100% |
Storage relative humidity (H-H) | 5 - 95% |
Warranty | |
Base Warranty | Non Non |
