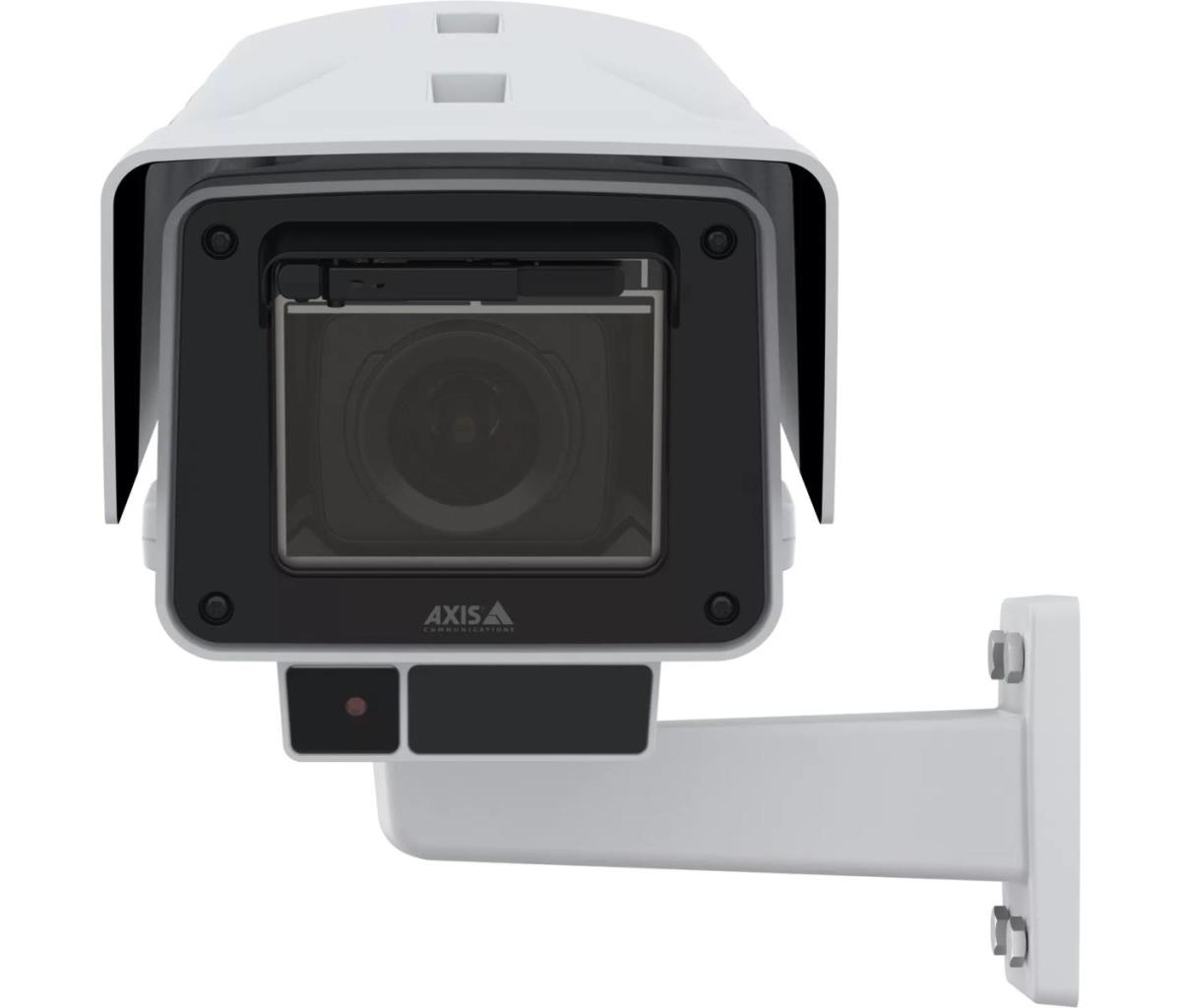

Built on ARTPEC-9, this AI-powered block camera offers accelerated performance and lets you run impressive analytics applications on the edge. Available with a wide (4.7-10 mm) lens, it features a built-in wiper to withstand harsh outdoor environments.
Superior image quality
AXIS Q1726-LE offers 4 MP resolution at 60 fps and features a large 1/1.8" sensor to ensure consistent performance even in low light. Thanks to Lightfinder 2.0 and Forensic WDR, it delivers true colors and great forensic detail in challenging light or near darkness. Axis Zipstream with support for AV1, H.264, and H.265 significantly lowers bandwidth and storage requirements. What’s more, it’s available with a wide (4.7-10 mm) lens with a 101.8°-44° horizontal field of view for surveillance in wide, open areas. Plus, the built-in lens with remote zoom and focus is perfectly calibrated to save you time and effort.
For harsh, outdoor environments
Ideal for any outdoor location, AXIS Q1726-LE comes with a built-in wiper and front window with carbon nanotube film heater to guarantee great images even in snow, rain, ice, and fog. It can operate in temperatures from -40 °C to 60 °C (-40 °F to 140 °F). And it can withstand winds up to 60 m/s (134 mph). This future-proof camera has a standardized enclosure design that can be reused with any Axis block camera. This makes it a more efficient and environmentally friendly option and ensures you get the full value from your investment. What’s more, the front glass is IK08-rated, and the enclosure is IK10-, NEMA 4X-, NEMA TS-2-, IP66-, and IP67-rated to withstand harsh weather conditions and impacts.
ARTPEC-9 for unmatched performance
ARTPEC-9 refines the remarkable features and capabilities that characterized previous generations of our in-house-designed SoC: low bitrate, AI-powered analytics, superior imaging, and built-in cybersecurity. It also introduces AV1, an open-source video encoding standard from the Alliance for Open Media. With support for AV1 and enhanced image processing, ARTPEC-9 delivers high-quality video with uncompromised detail and clarity, and best-in-class bitrate. Together with Axis Zipstream, AV1 also ensures hassle-free video both on-prem and in the cloud. What’s more, ARTPEC-9 powers advanced analytics applications that detect objects earlier and analyze events more precisely.
Powerful with strong security
Featuring a deep learning processing unit (DLPU), this AI-based camera lets you run advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans, vehicles, and types of vehicles. With AXIS Image Health Analytics preinstalled, you’ll be notified if your image is blocked, degraded, under exposed, or redirected. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operations.
| Performance | |
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| PTZ modes | Digital PTZ |
| Preset points | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Languages support | Multi |
| Dynamic range | 120 dB |
| Design | |
| Form factor | Box |
| Mounting type | Ceiling/Wall/Pole |
| Product colour | White |
| Housing material | Plastic, Aluminium |
| Protection features | Vandal proof, Wind resistant |
| International Protection (IP) code | IP66, IP67 |
| IK code | IK10 |
| Fog proof | Yes |
| Camera | |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0 lx |
| Lens viewing angle, horizontal | 101.8 - 44ø |
| Lens viewing angle, vertical | 54 - 24.6ø |
| Camera pixel size | 2.9 æm |
| Camera shutter speed | 1/49500 - 2 s |
| Image sensor | |
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8") |
| Sensor type | CMOS |
| Lens system | |
| Zoom capability | Yes |
| Optical zoom | 2.17x |
| Number of lenses | 1 |
| Focal length range | 4.7 - 10 mm |
| Auto focus | Yes |
| Focus | Motorized |
| Maximum aperture number | 1.2 |
| Minimum aperture number | 1.1 |
| Normal focusing range | 0.5 - m |
| Detect distance (wide) | 65 m |
| Detect distance (tele) | 141 m |
| Observe distance (wide) | 26 m |
| Observe distance (tele) | 56 m |
| Recognize distance (wide) | 13 m |
| Recognize distance (tele) | 28 m |
| Identify distance (wide) | 6.4 m |
| Identify distance (tele) | 14 m |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 50 m |
| LED type | IR |
| Video | |
| Maximum resolution | 2688 x 1512 pixels |
| Total megapixels | 4 MP |
| Video compression formats | H.264, H.265, AV1 |
| Supported graphics resolutions | 2688 x 1512 |
| Supported video modes | 1512p |
| Frame rate | 120 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Gain control type | Auto |
| Image quality adjustment | Contrast |
| Image stabilizer | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Audio | |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Built-in microphone | No |
| Audio detection | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1AE, IEEE 802.1ar |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2 , HTTP/ 2, TLS2 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP©, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Wi-Fi | No |
| Bluetooth | No |
| Cabling technology | 10/100/1000Base-T(X) |
| Storage | |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDXC, MiniSDHC |
| Flash memory | 8 MB |
| Internal memory | 4 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-422 ports | 1 |
| RS-485 ports | 1 |
| Microphone in | Yes |
| DC-in jack | Yes |
| Security | |
| Alarm input channels | 4 |
| Alarm output channels | 4 |
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| HTTPS encryption | Yes |
| Privacy protection | Yes |
| Power | |
| Power source type | PoE, DC |
| Power consumption (typical) | 6.9 W |
| Power consumption (max) | 25.5 W |
| Power consumption (Power over Ethernet (PoE)) | 7.7 W |
| DC output voltage | 10, 28 |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 60 øC |
| Storage temperature (T-T) | -40 - 65 øC |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 178 mm |
| Depth | 441 mm |
| Height | 303 mm |
| Weight | 4.84 kg |
| Sustainability | |
| Compliance certificates | RoHS, Electromagnetic Compatibility (EMC), CE, EAC, Federal Communications Commission (FCC), ICES, RCM, UL, VCCI, Trade Agreements Act (TAA), REACH |
| Packaging content | |
| Number of cameras | 1 |
| Other features | |
| Doesn't contain | Lead, Mercury, Cadmium |
| Technical details | |
| Iris | Yes |
| Suitable for outdoor use | Yes |
| Warranty | |
| Base Warranty | Non Non |
