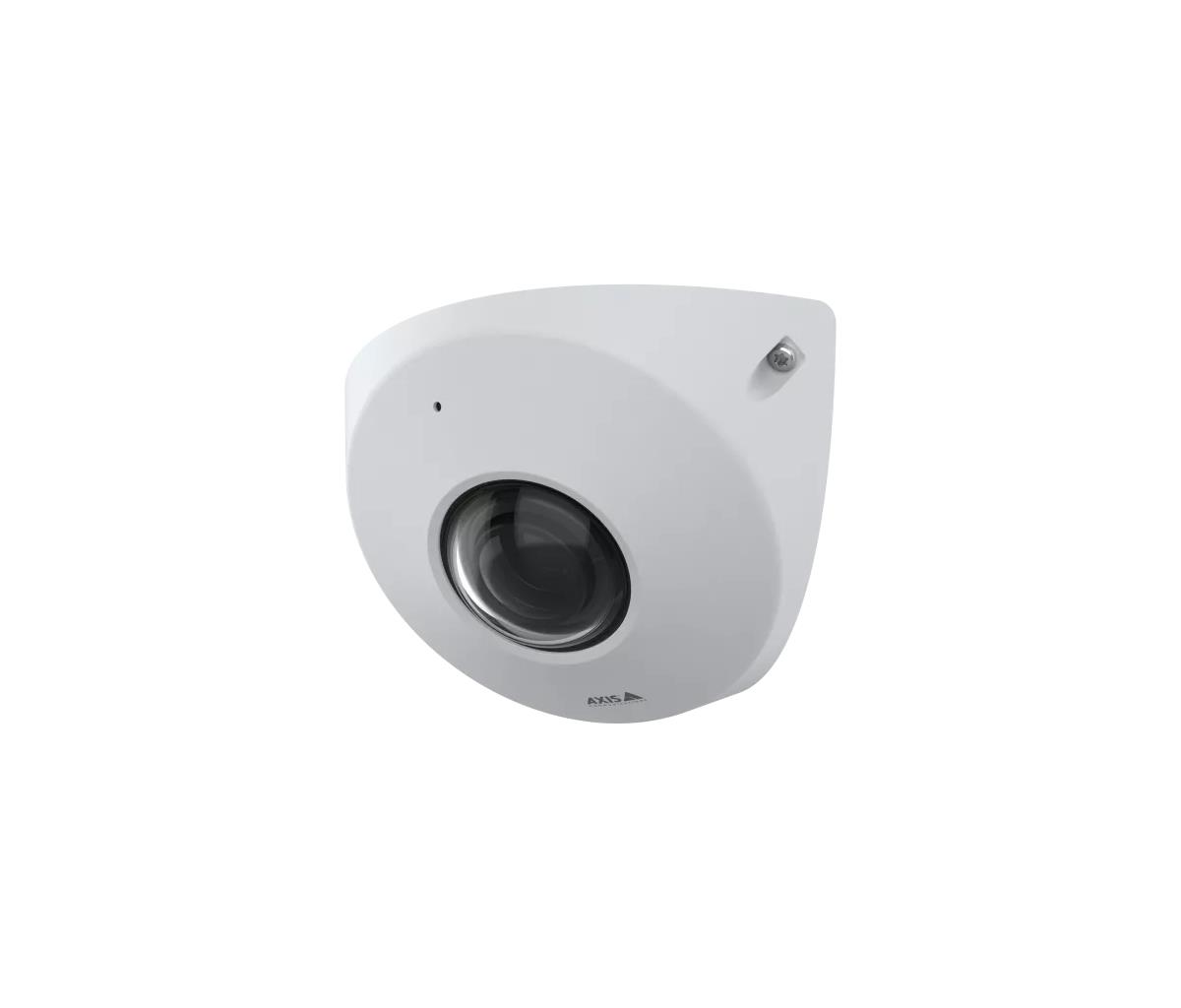

This indoor ligature-resistant (anti-ligature) corner camera delivers 360° panoramic view with no blind spots. Compact and vandal-resistant, it’s easy to clean and install.
Great video performance
AXIS P9117-PV is a 6 MP corner camera that delivers full coverage with no blind spots. It includes Axis Lightfinder 2.0 to capture images with more realistic and saturated colors and sharper images of moving objects. And, with Axis Forensic WDR you’re sure to capture high-quality images even when there’s both dark and light areas in the scene.
Extended possibilities
Built on an Axis system-on-chip, AXIS P9117-PV features Axis edge vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. With this AI-powered camera, you can run advanced analytics on the edge. For instance, it comes with AXIS Object Analytics preinstalled to detect and classify different objects of interest. With a built-in microphone, it’s out-of-the-box-ready for AXIS Audio Analytics. In addition, elevator door state detector will display if the elevator door is open unexpectedly which could indicate a safety or service issue.
Easy to install and maintain
AXIS P9117-PV is easy to install, thanks to innovative screw gaskets that hold the screws in place during mounting. With a vandal-resistant, IK10-rated casing, it’s ideal for installation in areas prone to vandalism, such as elevators and stairwells. AXIS TP9801 Cover Steel is also available as an accessory. Furthermore, with an abrasion-and chemical-resistant front cover that’s easy to remove, the window can also be cleaned more thoroughly with detergent or graffiti remover.
| Performance | |
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Design | |
| Form factor | Bullet |
| Mounting type | Ceiling |
| Product colour | White |
| Protection features | Vandal proof |
| International Protection (IP) code | IP66 |
| IK code | IK10 |
| Camera | |
| Camera tilt control | Yes |
| Minimum illumination | 0.04 lx |
| Horizontal field of view (thermal module) | 176ø |
| Lens viewing angle, vertical | 176ø |
| Image sensor | |
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8") |
| Sensor type | CMOS |
| Lens system | |
| Number of lenses | 1 |
| Focal length range | 1.1 mm |
| Maximum aperture number | 2.2 |
| Night vision | |
| Night vision | Yes |
| Video | |
| Maximum resolution | 2160 x 2160 pixels |
| Total megapixels | 6 MP |
| Video formats supported | H.264, H.265, M-JPEG |
| Audio | |
| Audio system | 2-way |
| Built-in microphone | Yes |
| Audio detection | Yes |
| Network | |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x |
| Security | |
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| HTTPS encryption | Yes |
| Power | |
| Power source type | PoE |
| Operational conditions | |
| Operating temperature (T-T) | -15 - 50 øC |
| Warranty | |
| Base Warranty | Non Non |
