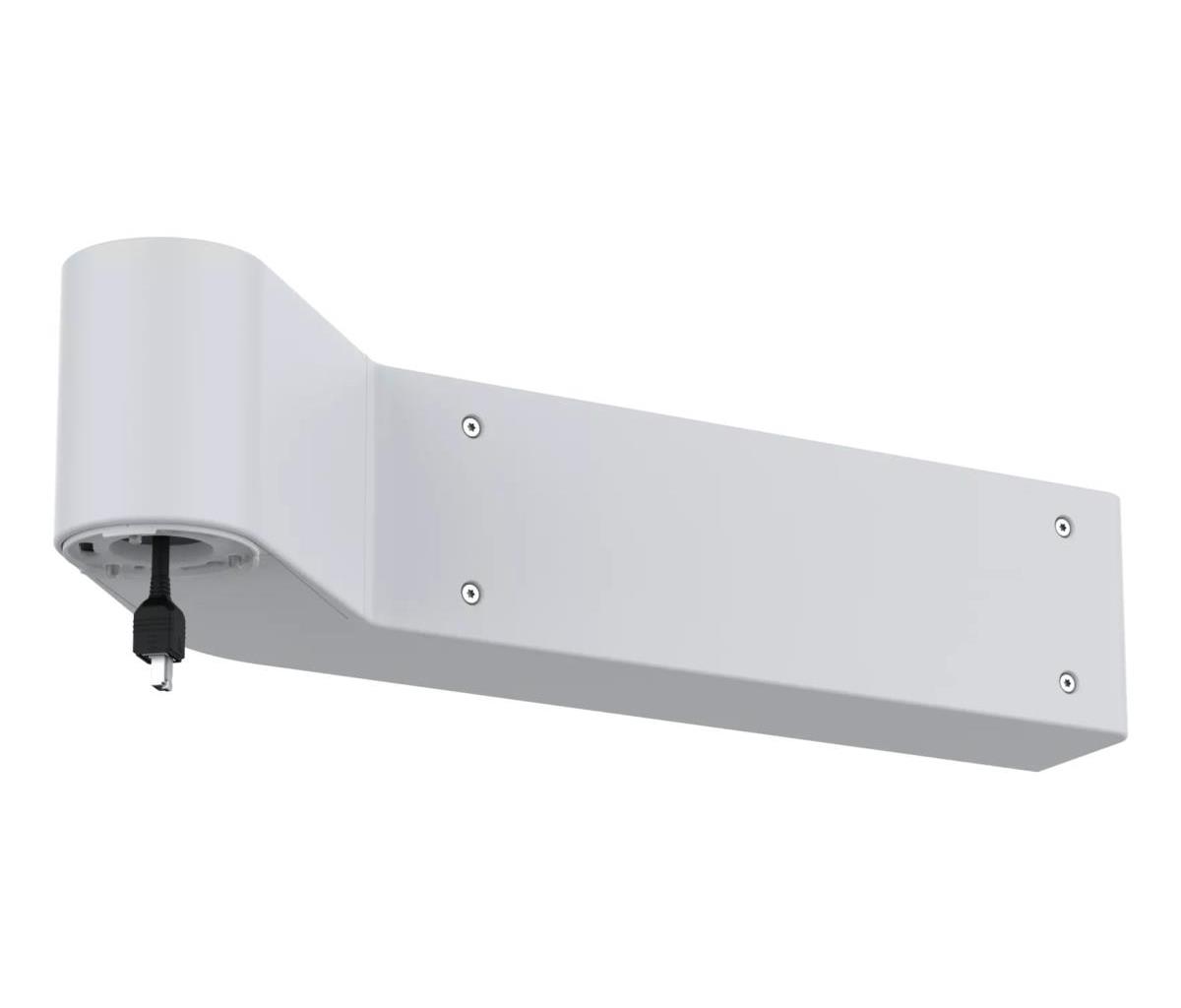

Tq5301-e Corner Mount
ITCurry #: 13836849 | Article #: 03159-001-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
With a stylish design, this compact, all-in-one, outdoor-ready mount blends seamlessly into most indoor and outdoor environments. It offers flexible installation and can be mounted on either the left or right side to suit specific needs.
Stylish and robust
Designed to withstand impact and harsh weather, the outdoor-ready mount is ideal for a wide range of indoor and outdoor environments. With its stylish design, it blends perfectly into most buildings and it’s easily repaintable. This versatile mount allows you to flip the mounting bracket, making it possible to mount on either the left or right side. In addition, it’s built to last with a lifespan that matches the expected lifetime of several cameras. And with the flexibility to install various PTZ cameras, this compact and robust mount helps ensure you preserve the value of your investment, making it a smart, future-proof choice.
Spacious compartment for protection and connectivity
This all-in-one device features an IP66-rated compartment designed to safeguard against water ingress and protect devices like midspans and media converters. Furthermore, a pre-mounted Ethernet cable enables quick and easy connection of power and data to a broad range of Axis PTZ network cameras.
| Features | |
| Type | Corner mount |
| Placement supported | Outdoor |
| Brand compatibility | Axis |
| Compatibility | AXIS M5074 AXIS M5075 AXIS M5075-G AXIS M5526-E AXIS P5654-E Mk II AXIS P5655-E AXIS P5676-LE AXIS Q6020-E AXIS Q6074 AXIS Q6074-E AXIS Q6075 AXIS Q6075-E AXIS Q6078-E AXIS Q6135-LE AXIS Q6215-LE AXIS Q6225-LE AXIS Q6300-E AXIS Q6325-LE AXIS Q6355-LE AXIS Q6358-LE AXIS D2122-VE AXIS D2123-VE |
| Product colour | White |
| Housing material | Plastic |
| Mounting type | Wall |
| International Protection (IP) code | IP66 |
| IK code | IK10 |
| Ergonomics | |
| Number of connectors | 1 |
| Connector gender | Male/Female |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Number of outputs | 1 outputs |
| Number of inputs | 1 inputs |
| Weight & dimensions | |
| Width | 689 mm |
| Depth | 232 mm |
| Height | 145 mm |
| Weight | 4.63 kg |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Mounting kit | Yes |
| Quick installation guide | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 65 øC |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage temperature (T-T) | -40 - 65 øC |
| Storage relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Doesn't contain | PVC, PVC/BFR |
| Warranty period | 3 year(s) |
| Compliance certificates | REACH, RoHS |
| Warranty | |
| Base Warranty | Non Non |
