P1387 Box Camera
ITCurry #: 13836520 | Article #: 02735-001-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

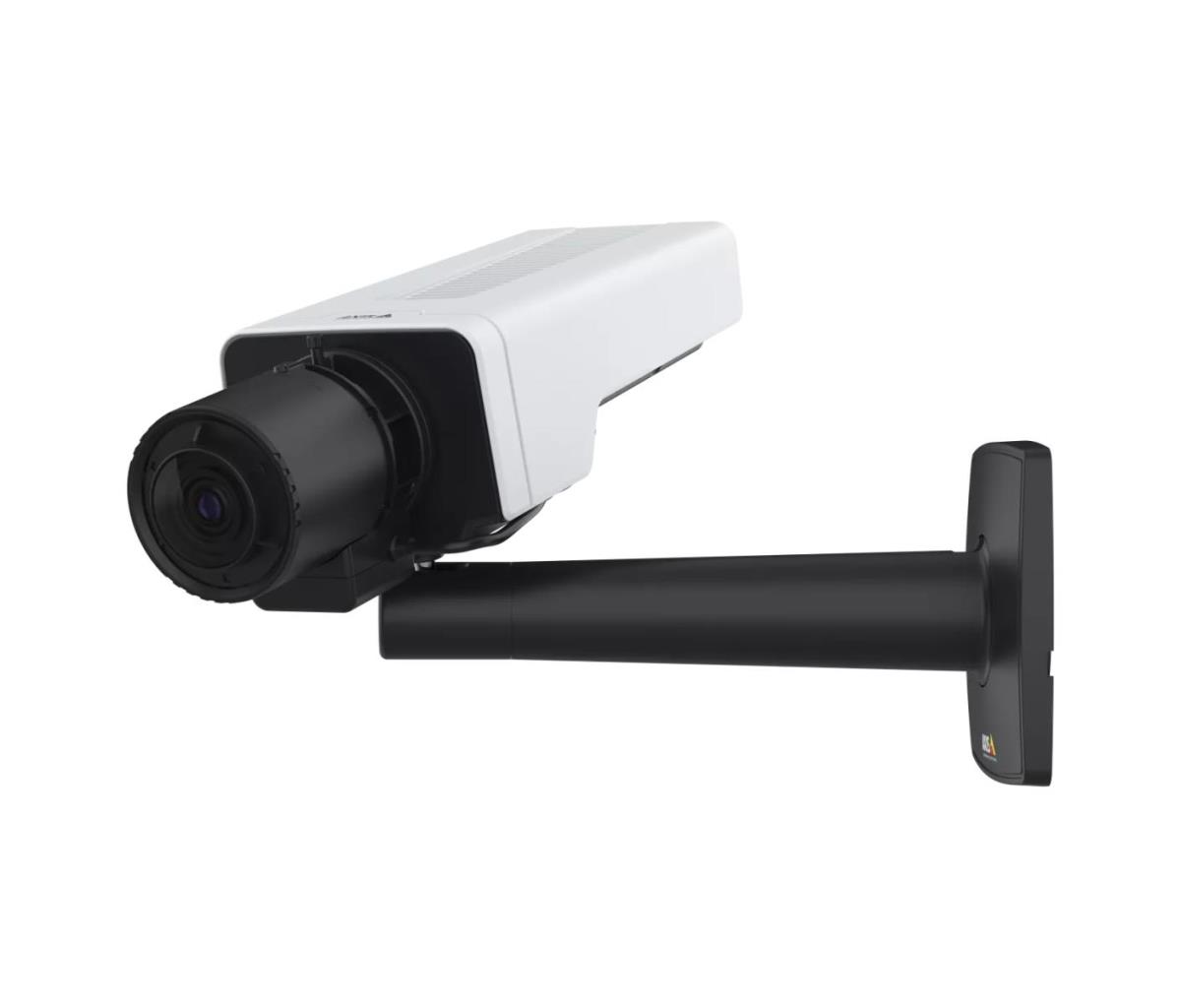

This box camera delivers excellent 5 MP image quality. Ideal for various surveillance situations, it offers an exchangeable lens so you can change the lens to suit your needs. Plus, it’s designed for use outdoors in housing.
A camera you can count on
With electronic image stabilization, AXIS P1387 ensures stable images despite vibration. Scene profiles can be automatically optimized to suit specific scenarios. And thanks to shock detection and a tampering alarm, you’ll be informed if there’s any attempts to interfere with the camera. Barrel distortion correction delivers great image quality, even at the edges of the image. Plus, corridor format ensures the video is perfectly adapted to monitored corridors or tunnels. With support for PoE and redundant DC power, this box camera offers flexible installation. Furthermore, it’s designed to fit into outdoor housing.
More light or less
With an exchangeable lens and i-CS support, you can easily change the lens, making this camera ideal for various surveillance situations. Use our lens calculator to select a lens that meets your specific needs. This box camera offers excellent image quality in 5 MP. With Lightfinder 2.0, and Forensic WDR it delivers true colors and great detail in challenging light or near darkness. In addition, P-Iris ensures images with better contrast, clarity, resolution, and depth of field.
Secure and powerful
AXIS P1387 offers Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. Built on an Axis system-on-chip, it includes a deep learning processing unit (DLPU) so you can run advanced features and powerful analytics on the edge. For instance, AXIS Object Analytics can detect and classify different types of objects. This DLPU also ensures improved processing and storage capabilities so you can collect and analyze even more data than before. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video.
| Performance | |
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Processor model | ARTPEC-8 |
| Built-in processor | Yes |
| Languages support | Multi |
| Dynamic range | 120 dB |
| Design | |
| Form factor | Box |
| Mounting type | Wall |
| Product colour | White |
| Housing material | Aluminium |
| Camera | |
| Minimum illumination | 0.008 lx |
| Lens viewing angle, horizontal | 24 - 112ø |
| Lens viewing angle, vertical | 18 - 80ø |
| Camera pixel size | 2 æm |
| Camera shutter speed | 1/66500 - 2 s |
| Image sensor | |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Sensor type | CMOS |
| Lens system | |
| Number of lenses | 1 |
| Focal length range | 2.8 - 13 mm |
| Auto focus | Yes |
| Minimum aperture number | 1.4 |
| Detect distance (wide) | 56.2 m |
| Detect distance (tele) | 244.2 m |
| Observe distance (wide) | 22.3 m |
| Observe distance (tele) | 96.9 m |
| Recognize distance (wide) | 11.2 m |
| Recognize distance (tele) | 48.8 m |
| Identify distance (wide) | 5.6 m |
| Identify distance (tele) | 24.4 m |
| Video | |
| Maximum resolution | 2592 x 1944 pixels |
| Total megapixels | 5 MP |
| Video compression formats | H.264, H.265, M-JPEG, MPEG4 |
| Supported graphics resolutions | 160 x 120, 160 x 90, 2592 x 1944 |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Gain control type | Auto |
| Image quality adjustment | Brightness, Contrast, Sharpness |
| Flip & mirror | Yes |
| Privacy masking | Yes |
| Image stabilizer | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Audio | |
| Audio system | 2-way |
| Audio formats supported | G.711, G.726, LPCM, OPUS |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Built-in microphone | Yes |
| Audio detection | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Wi-Fi | No |
| Bluetooth | No |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Storage | |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 8192 MB |
| Internal memory | 2048 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-422 ports | 1 |
| RS-485 ports | 1 |
| Microphone in | Yes |
| Terminal block port | Yes |
| DC-in jack | Yes |
| Security | |
| Alarm input channels | 2 |
| Alarm output channels | 2 |
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| Intelligent Video Surveillance (IVS) system features | Face detection, Human detection, Line crossing detection, Scene change, Vehicle detection |
| Power | |
| Power source type | DC, PoE |
| Power consumption (typical) | 4.26 W |
| Power consumption (max) | 10.57 W |
| Power consumption (Power over Ethernet (PoE)) | 11.73 W |
| DC output voltage | 10, 28 |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 55 øC |
| Storage temperature (T-T) | -40 - 65 øC |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 80 mm |
| Depth | 225 mm |
| Height | 63.5 mm |
| Weight | 480 g |
| Weight (with stand) | 775 g |
| Sustainability | |
| Compliance certificates | CE, EAC, KC, RCM, REACH, RoHS, UKCA, UL, VCCI, cUL |
| Packaging content | |
| Number of cameras | 1 |
| Mounting kit | Yes |
| Manual | Yes |
| Terminal block included | Yes |
| Other features | |
| Doesn't contain | BFR |
| Warranty | |
| Base Warranty | Non Non |
