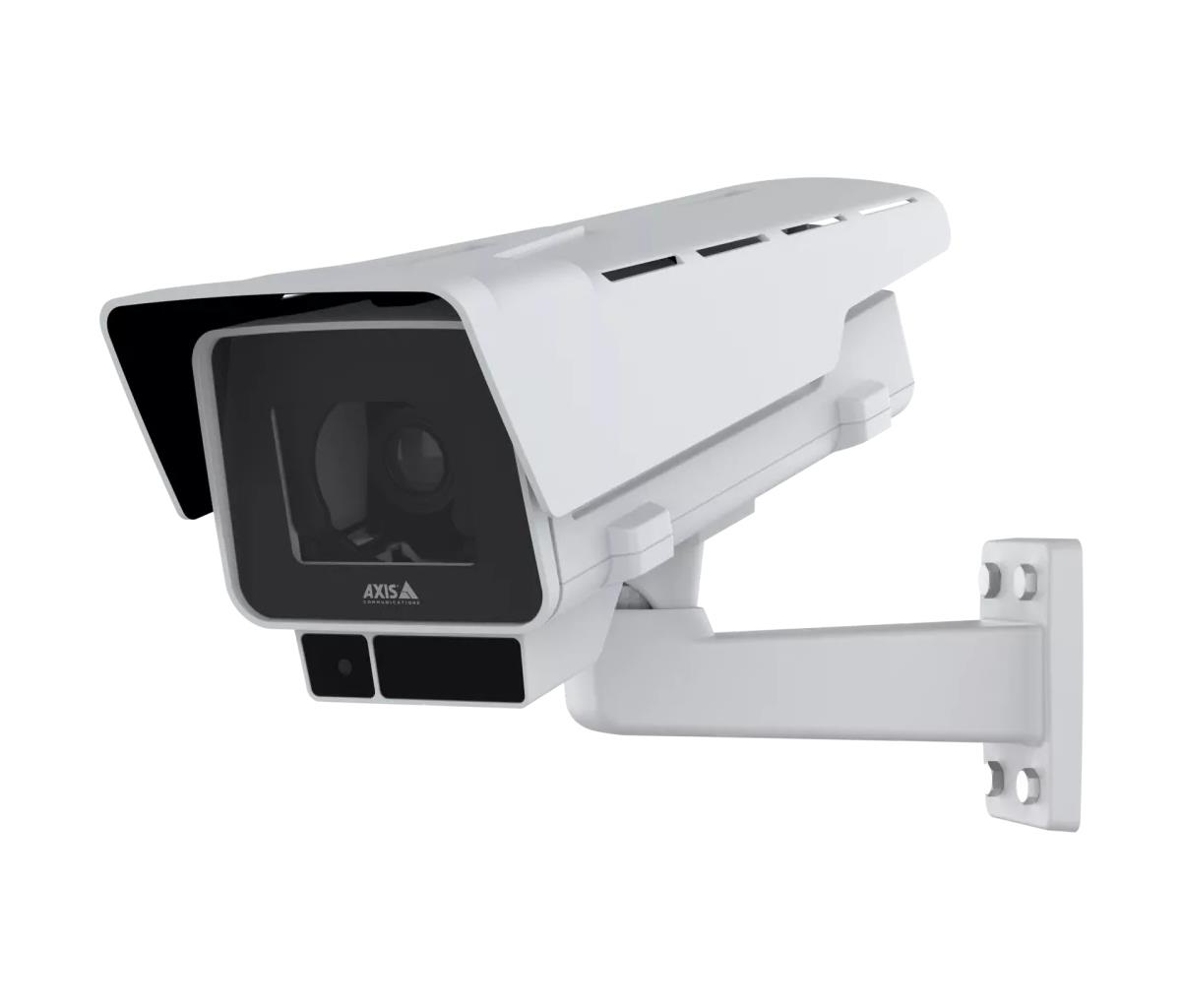

P1388-le 1/1.8in Image Sensor Outdoor Box Camera
ITCurry #: 13836494 | Article #: 02738-001-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
This robust, outdoor camera has a clear deterrent effect. It offers excellent 8 MP image quality even in challenging light conditions. Ideal for various surveillance situations, it includes an exchangeable lens and delivers clear, sharp images you can count on.
Made for the great outdoors
This IP66-, IP67-, IK10- and NEMA 4X-rated camera can handle temperatures from -40 °C to 60 °C (-40 °F to 140 °F). A front heater ensures the lens is free of ice and fog. Plus, with barrel distortion correction and defogging functionality, it delivers clear, sharp images. AXIS P13 Weathershield Extension A is also available for extreme protection against snow or rain, and to prevent reflections. With electronic image stabilization, this robust camera ensures stable images despite vibration. Scene profiles can be automatically optimized to suit specific scenarios. Furthermore, with PoE and redundant DC power, you get flexible installation, and your data is safeguarded in the event of a power outage.
More light or less
With an exchangeable lens and i-CS support, you can quickly and easily change the lens, making this camera ideal for various surveillance situations. Use our lens calculator to select a lens that meets your specific needs. This box camera offers excellent image quality in 4K. Lightfinder 2.0 and Forensic WDR ensure true colors and great detail in challenging light or near darkness. And it offers P-Iris for images with better contrast, clarity, resolution, and depth of field. Additionally, OptimizedIR enables surveillance in total darkness up to 50 m (164 ft). And, with shock detection and a tampering alarm, you’ll be informed if there are any attempts to interfere with the camera.
Secure and powerful
AXIS P1388-LE offers Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. Built on an Axis system-on-chip, it includes a deep learning processing unit (DLPU) so you can run advanced features and powerful analytics on the edge. For instance, AXIS Object Analytics can detect and classify humans, vehicles, and types of vehicles. This DLPU also ensures improved processing and storage capabilities so you can collect and analyze even more data than before. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video.
| Performance | |
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| PTZ modes | Digital PTZ |
| Preset points | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Certification | UL/cUL, UKCA, CE, KC, EAC, VCCI, RCM |
| Design | |
| Form factor | Box |
| Mounting type | Wall |
| Product colour | White |
| Housing material | Aluminium, Plastic |
| Protection features | Impact resistant |
| International Protection (IP) code | IP66, IP67 |
| IK code | IK10 |
| Camera | |
| Minimum illumination | 0.13 lx |
| Angle of rotation | 270ø |
| Vertical field of view (thermal module) | 64ø |
| Horizontal field of view (thermal module) | 122 - 46ø |
| Camera pixel size | 2 æm |
| Camera shutter speed | 1/66500 - 2 s |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8") |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Panoramic camera | |
| Sensor type (panoramic camera) | CMOS |
| Signal-to-Noise Ratio (SNR) (panoramic camera) | 55 dB |
| Lens system | |
| Number of lenses | 1 |
| Focal length range | 3.9 - 10 mm |
| Auto focus | Yes |
| Detect distance (wide) | 78.7 m |
| Detect distance (tele) | 193.5 m |
| Observe distance (wide) | 31.2 m |
| Observe distance (tele) | 76.8 m |
| Recognize distance (wide) | 15.7 m |
| Recognize distance (tele) | 38.7 m |
| Identify distance (wide) | 7.9 m |
| Identify distance (tele) | 19.4 m |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 40 m |
| B/W night vision distance | 40 m |
| LED type | IR |
| Number of illumination LEDs | 2 |
| Infra-red wavelength | 850 nm |
| Video | |
| Maximum resolution | 3840 x 2160 pixels |
| Video formats supported | H.264, H.265 |
| Supported graphics resolutions | 160 x 90, 3840 x 2160 |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Image quality adjustment | Brightness, Contrast, Sharpness |
| Image stabilizer | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Audio | |
| Audio system | 1-way |
| Audio system full duplex | Yes |
| Audio formats supported | AAC, G.711, OPUS, PCM |
| Sample rate | 48 kHz |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Audio detection | Yes |
| Network | |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2 , HTTP/ 2, TLS 2 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP©, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP,NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/ 5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR |
| Streaming method | Multicast |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 8192 MB |
| Internal memory | 2048 MB |
| Ports & interfaces | |
| Microphone in | Yes |
| Terminal block port | Yes |
| DC-in jack | Yes |
| Security | |
| Video motion detection | Yes |
| Human and vehicle targets classification | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (typical) | 9.1 W |
| Power consumption (max) | 25.5 W |
| DC output voltage | 10, 28 |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 60 øC |
| Storage temperature (T-T) | -40 - 65 øC |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Weight | 2.46 kg |
| Weight (with stand) | 3.34 kg |
| Sustainability | |
| Compliance certificates | Trade Agreements Act (TAA) |
| Packaging content | |
| Number of cameras | 1 |
| Manual | Yes |
| Other features | |
| Doesn't contain | BFR, CFR, PVC |
| Technical details | |
| Safety warning | CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, IS 13252 |
| Warranty | |
| Base Warranty | Non Non |
