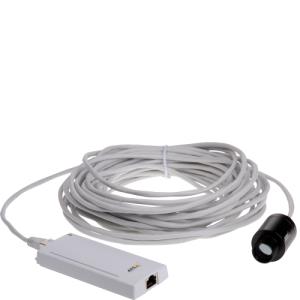

AXIS P1280-E is a cost-effective indoor/outdoor thermal camera that ensures reliable detection with a low rate of false alarms. The camera can be used as a surveillance sensor that doesn’t compromise personal integrity. It features a choice of lenses to meet your specific requirements; a 2.2 mm lens for wide-angle views and a 4 mm lens for narrower views with longer detection distances. AXIS P1280-E comes with built-in analytics as well as support for AXIS Perimeter Defender and 3rd party analytics. The flexible and highly discreet design allows for versatile installation: behind surfaces for discreet surveillance, on walls, or recessed.
Performance | |
Type | IP security camera |
Placement supported | Indoor |
Connectivity technology | Wired |
Design | |
Form factor | Covert |
Mounting type | Wall |
Product colour | White |
Housing material | Polycarbonate (PC) |
Camera | |
Lens viewing angle, horizontal | 63ø |
Lens viewing angle, vertical | 47ø |
Lens system | |
Number of lenses | 1 |
Lens diameter | 2.2 mm |
Video | |
Maximum resolution | 640 x 480 pixels |
Video compression formats | H.264, M-JPEG |
Frame rate | 8.3 fps |
Video streaming | Yes |
Gain control type | Auto |
Time stamp overlay | Yes |
Text caption overlay | Yes |
Network | |
Ethernet LAN | Yes |
Networking standards | IEEE 802.3af, IEEE 802.3at |
Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, MQTT v3.1.1 |
Storage | |
Built-in HDD | Yes |
HDD capacity | 0.5 GB |
Card reader integrated | Yes |
Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
Flash memory | 256 MB |
Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 1 |
Security | |
Password protection | Yes |
IP address filtering | Yes |
Security algorithms | EAP-TLS, HTTPS |
HTTPS encryption | Yes |
Alert notification type | E-mail, Snapshot alert message |
Mirror | Yes |
Pixel counter | Yes |
Power | |
Power source type | PoE |
Power consumption (typical) | 2.5 W |
Power consumption (max) | 4 W |
Power consumption (Power over Ethernet (PoE)) | 2.5 W |
Operational conditions | |
Operating temperature (T-T) | -30 - 55 øC |
Storage temperature (T-T) | -40 - 65 øC |
Operating relative humidity (H-H) | 10 - 100% |
Weight & dimensions | |
Width | 16 mm |
Depth | 46 mm |
Height | 109 mm |
Weight | 72 g |
Packaging content | |
Number of cameras | 1 |
Logistics data | |
Harmonized System (HS) code | 85258900 |
Warranty | |
Base Warranty | Non Non |
