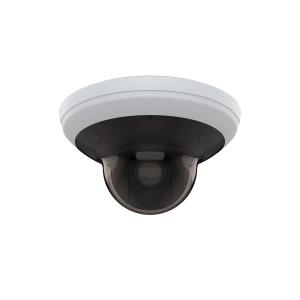

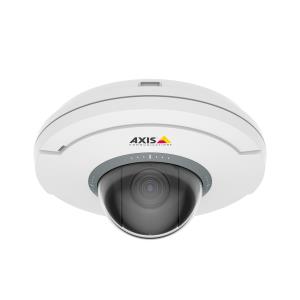

AXIS M5074 is a discreet, palm-sized PTZ camera designed to fit in anywhere. It delivers sharp, detailed video in HDTV 720p/1MP resolution. Thanks to PTZ functionality with 5x optical zoom and 12x digital zoom you can benefit from sweeping overviews and zoom in to get the details. Featuring a built-in microphone, this plug & play solution also includes analytics such as scream detection to alert you whenever a scream is detected in the camera's proximity. Furthermore, built-in cybersecurity features help prevent unauthorized access and safeguard your system.
Performance | |
Type | IP security camera |
Placement supported | Indoor |
Connectivity technology | Wired |
PTZ control | Yes |
PTZ modes | Digital PTZ |
Day/night mode | Yes |
Processor model | ARTPEC-7 |
Number of languages | 12 |
Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian |
Certification | EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 62368-1, IS 13252 IEC/EN 60529 IP51 NIST SP500-267 |
Design | |
Form factor | Dome |
Mounting type | Ceiling/wall |
Product colour | White |
Housing material | Polyvinyl chloride (PVC) |
International Protection (IP) code | IP51 |
Camera | |
Camera pan control | Yes |
Camera tilt control | Yes |
Minimum illumination | 0.1 lx |
Tilt angle range | 0 - 90ø |
Tilt speed | 100 ø/sec |
Pan range | -179 - 179ø |
Pan speed | 100 ø/sec |
Camera shutter speed | 1/17000 - 2 s |
Image sensor | |
Number of sensors | 1 |
Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
Progressive scan | Yes |
Sensor type | CMOS |
Lens system | |
Zoom capability | Yes |
Optical zoom | 5x |
Digital zoom | 12x |
Number of lenses | 1 |
Auto focus | Yes |
Focal length range | 2.2 - 11.0 mm |
Video | |
Maximum resolution | 1280 x 720 pixels |
Total megapixels | 1 MP |
Video formats supported | M-JPEG |
Video compression formats | H.264, H.265 |
Supported video modes | 720p |
Video recording | Yes |
Frame rate | 60 fps |
Video streaming | Yes |
Privacy masking | Yes |
Bit rate | Configurable bit rate |
Digital Wide Dynamic Range (DWDR) | Yes |
Audio | |
Audio system | 1-way |
Audio formats supported | AAC-LC, ADPCM, LPCM, OPUS, PCM |
Built-in microphone | Yes |
Audio detection | Yes |
Network | |
Ethernet LAN | Yes |
Networking standards | IEEE 802.3af |
Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP© , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
Wi-Fi | No |
Bluetooth | No |
Quality of Service (QoS) support | Yes |
Storage | |
Built-in HDD | No |
Card reader integrated | Yes |
Flash memory | 512 MB |
Internal memory | 1024 MB |
Security | |
Password protection | Yes |
Video motion detection | Yes |
Active tampering alarm | Yes |
IP address filtering | Yes |
Security algorithms | EAP-TLS, HTTPS, SNMP |
HTTPS encryption | Yes |
Alert notification type | |
Power | |
Power source type | PoE |
Power consumption (typical) | 4.2 W |
Power consumption (max) | 9.3 W |
Operational conditions | |
Operating temperature (T-T) | 0 - 45 øC |
Storage temperature (T-T) | -30 - 60 øC |
Operating relative humidity (H-H) | 10 - 90% |
Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions | |
Diameter | 13 cm |
Length | 63 mm |
Weight | 380 g |
Packaging content | |
Number of cameras | 1 |
Mounting kit | Yes |
Manual | Yes |
Logistics data | |
Harmonized System (HS) code | 85258900 |
Warranty | |
Base Warranty | Non Non |
