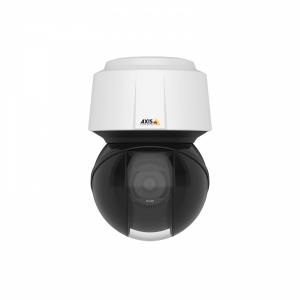

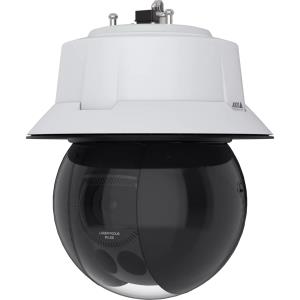

AXIS Q6215-LE PTZ Network Camera
AXIS Q6215-LE is a reliable and robust network camera specially designed with high precision pan, tilt and zoom and long-range IR to cover wide and long-distance surveillance. This tough camera can recognise and identify targets in large open areas even in poor light or complete darkness. From harbors and airports to highways, AXIS Q6215-LE is ideal for 24/7, all-weather surveillance anywhere you need it.
A camera that can take it
This heavy-duty PTZ camera meets the MIL-STD-810G standard, ensuring reliable operation in extreme weather conditions and can withstand winds up to 245 km/h (152 mph). With vandal-resistant IK10-rated casing and IP66/IP68 ratings, you can rest assured that the camera housing is resistant to both harsh weather conditions and impacts. Thanks to the flexible design the camera can be mounted facing up or down depending on your needs. Out-of-the-box it includes an installation plate with sliders for safe and easy installation. Furthermore, with built-in wiper you can get good images even in snow and rain.
Great image quality both far and wide
AXIS Q6215-LE Network Camera is a high-performance, HDTV 1080p, PTZ camera with 30x optical zoom. Featuring long-range OptimizedIR enables the camera’s IR LEDs to automatically adjust to the camera zoom, so the entire field of view is always evenly illuminated, even in scenes with complete darkness. AXIS Q6215-LE features very light-sensitive ½” inch sensor, WDR and Lightfinder for sharp, clear images even when there’s both dark and light areas in the scene. It also offers Axis’ Zipstream technology to save bandwidth and storage by up to 50% – without sacrificing quality.
Intelligent protection
AXIS Q6215-LE is packed with built-in analytics to alert you when needed. It comes with AXIS Guard Suite analytics, including AXIS Motion Guard, AXIS Fence Guard and AXIS Loitering Guard, for detecting motion, intrusion and loitering.
| Performance | |
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Auto-tracking | Yes |
| Tour recording | Yes |
| Preset points | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Number of languages | 11 |
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian |
| Certification | MIL-STD-810G, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IEC/EN 62471 risk group 2, IEC/EN 60529 IP66/IP68, NEMA 250 Type 4X, NEMA TS 2 (Subsection 2.2.7-2.2.9), IEC/EN 62262 IK10, MIL-STD-810G (Method 501.5, 502.5, 506.5, 509.5, 521.3), IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, NIST SP500-267, EN 60950-1, GS, UL, cUL, CE, FCC, VCCI, CB |
| Design | |
| Mounting type | Ceiling/Pole |
| Product colour | Grey |
| Housing material | Aluminium |
| International Protection (IP) code | IP68 |
| IK code | IK10 |
| Weatherproof | Yes |
| Fog proof | Yes |
| Camera | |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.01 lx |
| Lens viewing angle, horizontal | 58.6ø |
| Lens viewing angle, vertical | 34.1ø |
| Tilt angle range | -90 - 90ø |
| Tilt speed | 150 ø/sec |
| Pan range | 0 - 360ø |
| Pan speed | 150 ø/sec |
| Camera shutter speed | 1/30000 - 1/6 s |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 1.9 mm (1 / 1.9") |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Lens system | |
| Zoom capability | Yes |
| Optical zoom | 30x |
| Digital zoom | 21x |
| Number of lenses | 1 |
| Auto focus | Yes |
| Maximum aperture number | 5.3 |
| Minimum aperture number | 1.6 |
| Focal length range | 6.7 - 201 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 400 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Maximum resolution | 1920 x 1080 pixels |
| Video formats supported | M-JPEG |
| Video compression formats | AVC, H.264, MPEG4 |
| Supported graphics resolutions | 320 x 180, 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Privacy masking | Yes |
| Text caption overlay | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Networking standards | IEEE 802.1x |
| Supported network protocols | IPv4/v6, HTTP, HTTPS , SSL/TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, NTCIP |
| Streaming method | Multicast |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
| Flash memory | 512 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
| Password protection | Yes |
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Alert notification type | |
| Power | |
| Power source type | AC, PoE |
| AC input voltage | 100-240 V |
| Power consumption (typical) | 25 W |
| Power consumption (max) | 71 W |
| Operational conditions | |
| Operating temperature (T-T) | -50 - 55 øC |
| Storage temperature (T-T) | -40 - 65 øC |
| Operating relative humidity (H-H) | 10 - 100% |
| Weight & dimensions | |
| Width | 330 mm |
| Depth | 210 mm |
| Height | 313 mm |
| Weight | 8.5 kg |
| Packaging content | |
| Number of cameras | 1 |
| Manual | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85258900 |
| Warranty | |
| Base Warranty | Non Non |
