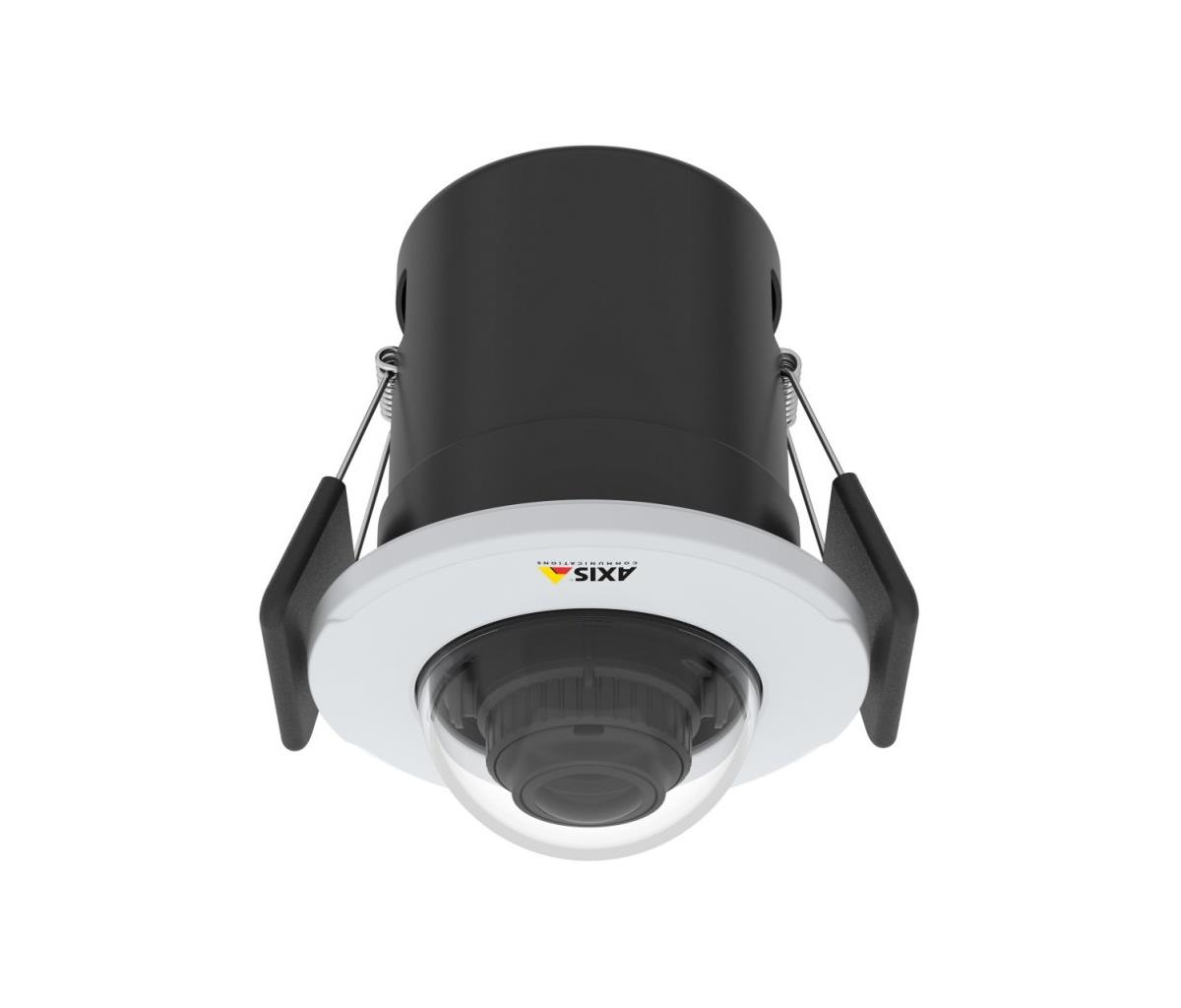

AXIS M3016 Network Camera
AXIS M3016 Network Camera is designed for quick and easy recessed installation. Delivering 3 MP video at full frame rate in a small and compact design, AXIS M3016 is perfect for stylish retail stores and other areas that require discreet surveillance.
Designed for discretion
AXIS M3016 is seriously discreet. Specially designed for recessed mounting, this small, unobtrusive camera resembles a spotlight. Its cover is optionally available in black and is also easy to repaint to blend in anywhere.
Best-in-class quality
You would have to look far to find better video quality in a camera in this class. AXIS M3016 offers 3 MP video at 30 fps, with WDR for excellent video quality both in the brightest and the darkest area of a scene. It also gives you large area coverage with a wide field of view.
Great on performance. Small on price
AXIS M3015 comes with the advanced Axis Zipstream technology that keeps storage and bandwidth requirements low and video quality high. The Axis Corridor Format option allows for optimal coverage of isles and corridors. AXIS M3016 is also equipped with a memory slot for optional local video storage. And it’s designed for exceedingly fast, easy and cost-effective installation and integration.
| Performance | |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| PTZ modes | Digital PTZ |
| Auto-tracking | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Number of languages | 11 |
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian |
| Certification | EN 55032 Class B, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A and B, ICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 32 Class B, KCC KN32 Class B, KN35, IEC/EN/UL 62368-1, IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-2, IEC 60068-2-14 |
| Design | |
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | Black, White |
| Housing material | Aluminium |
| Camera | |
| Minimum illumination | 0.35 lx |
| Angle of rotation | 350ø |
| Lens viewing angle, horizontal | 152ø |
| Lens viewing angle, vertical | 80ø |
| Tilt angle range | -85 - 85ø |
| Pan range | -105 - 105ø |
| Camera shutter speed | 1/30 - 1/32500 s |
| Image sensor | |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Lens system | |
| Fixed focus | Yes |
| Maximum aperture number | 2.4 |
| Fixed focal length | 1.8 mm |
| Video | |
| Maximum resolution | 2304 x 1296 pixels |
| Video compression formats | H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Supported video modes | 1080p |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Full HD | Yes |
| Image quality adjustment | Brightness, Contrast, Sharpness |
| Text caption overlay | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Supported network protocols | IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP |
| Wi-Fi | No |
| Bluetooth | No |
| Cabling technology | 10/100Base-T(X) |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD |
| Flash memory | 512 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
| Password protection | Yes |
| Video motion detection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Intelligent Video Surveillance (IVS) system features | People counting |
| Power | |
| Power source type | PoE |
| Power consumption (typical) | 2.9 W |
| Power consumption (max) | 3.8 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -40 - 65 øC |
| Operating relative humidity (H-H) | 15 - 85% |
| Weight & dimensions | |
| Height | 115 mm |
| Diameter | 9.1 cm |
| Weight | 350 g |
| Packaging content | |
| Number of cameras | 1 |
| Manual | Yes |
| Technical details | |
| Iris | Yes |
| Lens mount interface | M12 |
| Logistics data | |
| Harmonized System (HS) code | 85258900 |
| Warranty | |
| Base Warranty | Non Non |
