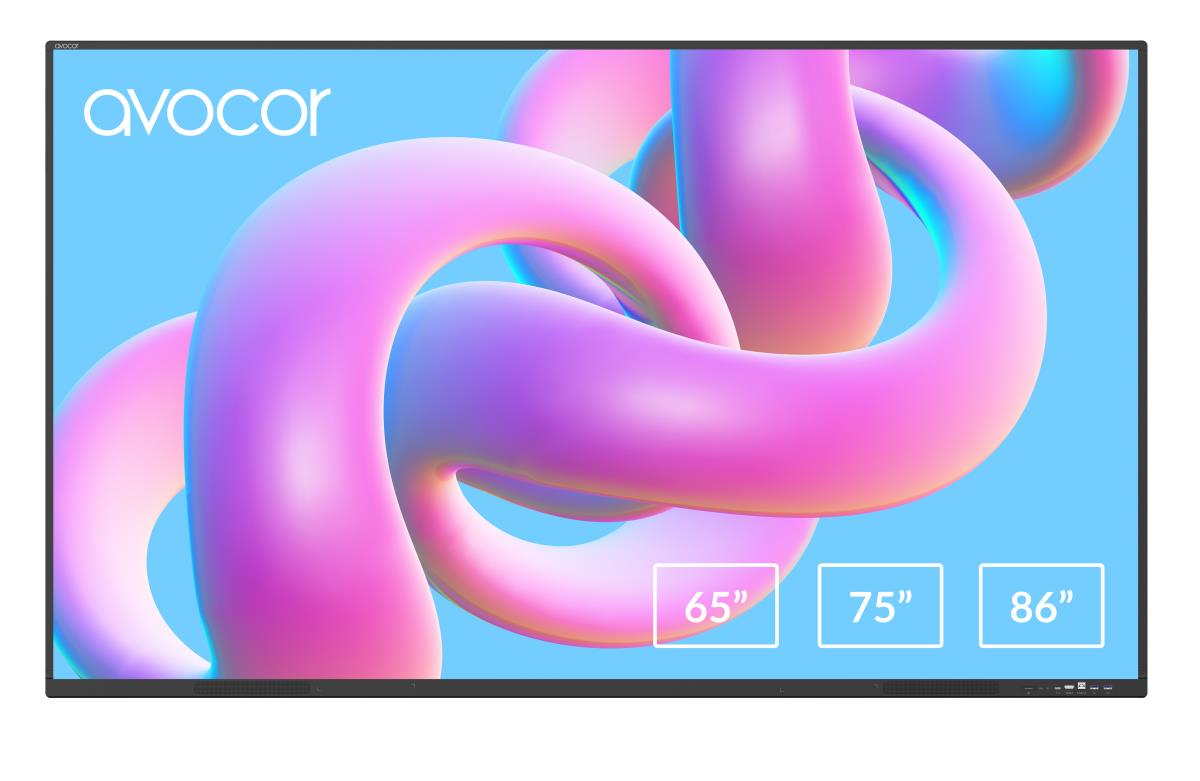

Avs-7510 75in 4k Glass LED Interactive Display
ITCurry #: W0722171 | Article #: AVS-7510
Related products
Product Information
The Avocor S Series is a part of our portfolio designed to elevate educational environments, combining sleek design with advanced touch technology. Ideal for classrooms, lecture halls, and hybrid learning settings, the S Series ensures every interaction is engaging and intuitive.
Ensure every educational session, whether in-person or remote, is seamless with the Avocor S Series. Its modern aesthetics and robust functionality make it the perfect solution for schools and universities seeking high performance, interactive displays.
Its diverse connectivity options support seamless integration with various educational tools and devices.

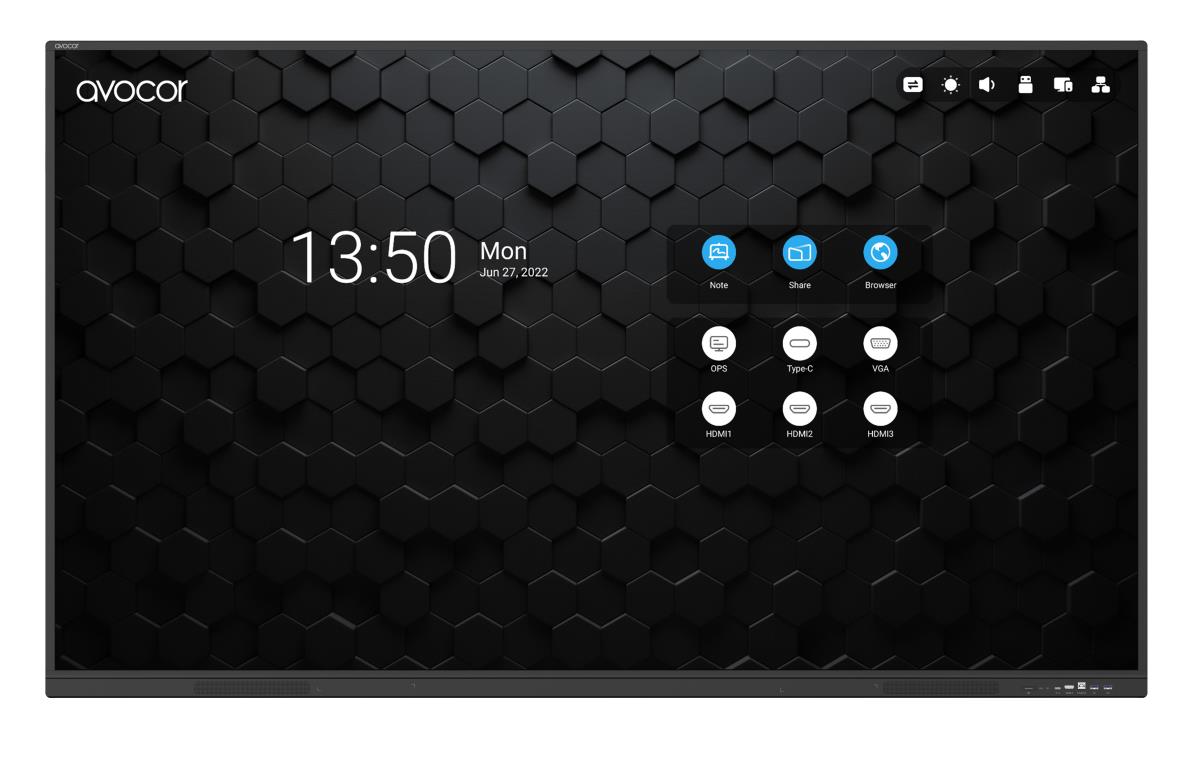

Preloaded with applications like Class, Note, Share, and Browse*, the S Series transforms standard lessons into interactive experiences, keeping students engaged and informed.
| Display | |
| Display diagonal | 190.5 cm (75") |
| Display brightness | 350 cd/mý |
| Display number of colours | 1.07 billion colours |
| Display resolution | 3840 x 2160 pixels |
| Anti-glare screen | Yes |
| HD type | 4K Ultra HD |
| LED backlight | Yes |
| LED backlighting type | Direct-LED |
| Native aspect ratio | 16:9 |
| Contrast ratio (typical) | 5000:1 |
| Maximum refresh rate | 60 Hz |
| Touchscreen | Yes |
| Touch technology | Multi-touch |
| Touchscreen type | Infrared |
| Number of simultaneous touchpoints | 40 |
| Viewing angle, horizontal | 178ø |
| Viewing angle, vertical | 178ø |
| Pen & touch differentiation | Yes |
| Technology | Infrared (IR) |
| Computer system | |
| Operating system installed | Android |
| Operating system version | 13 |
| Built-in processor | Yes |
| Processor architecture | ARM Cortex A76 + ARM Cortex A55 |
| Processor cores | 4 |
| Maximum internal memory | 64 GB |
| RAM capacity | 8 GB |
| Graphics card family | ARM |
| Graphics card | Mali-G51 MP2 |
| Audio | |
| Built-in speaker(s) | Yes |
| Speaker power | 32 W |
| Network | |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Ethernet LAN | Yes |
| Ports & interfaces | |
| HDCP | Yes |
| HDCP version | 2.2 |
| USB connector type | Micro-USB B, Mini-USB A, USB Type-C |
| USB 2.0 Type-A hub ports quantity | 4 |
| USB 2.0 Type-B Touch ports quantity | 2 |
| HDMI ports quantity | 3 |
| USB Type-C ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| HDMI output ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 65 W |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Line-in | Yes |
| Line-out | Yes |
| OPS slot | 1 |
| S/PDIF out port | Yes |
| RS-232 ports | 1 |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 800 x 400 mm |
| Wall mountable | Yes |
| Performance | |
| Ambient light sensor | Yes |
| Operating hours (hours/days) | 16/7 |
| Power | |
| Power consumption (typical) | 360 W |
| Power consumption (standby) | 0.5 W |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 11, Windows 8 |
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Weight & dimensions | |
| Width | 1709 mm |
| Depth | 88 mm |
| Height | 1020 mm |
| Weight | 47.3 kg |
| Packaging data | |
| Package width | 1863 mm |
| Package depth | 225 mm |
| Package height | 1140 mm |
| Package weight | 47.3 kg |
| Quantity per pack | 60750 pc(s) |
| Packaging content | |
| Pen tray included | Yes |
| Remote control included | Yes |
| Batteries included | Yes |
| Mounting brackets included | Yes |
| Stylus included | Yes |
| Stylus pen type | Passive |
| Other features | |
| Warranty period | 3 year(s) |
| Country of origin | China |
| Warranty | |
| Base Warranty | Non Non |
