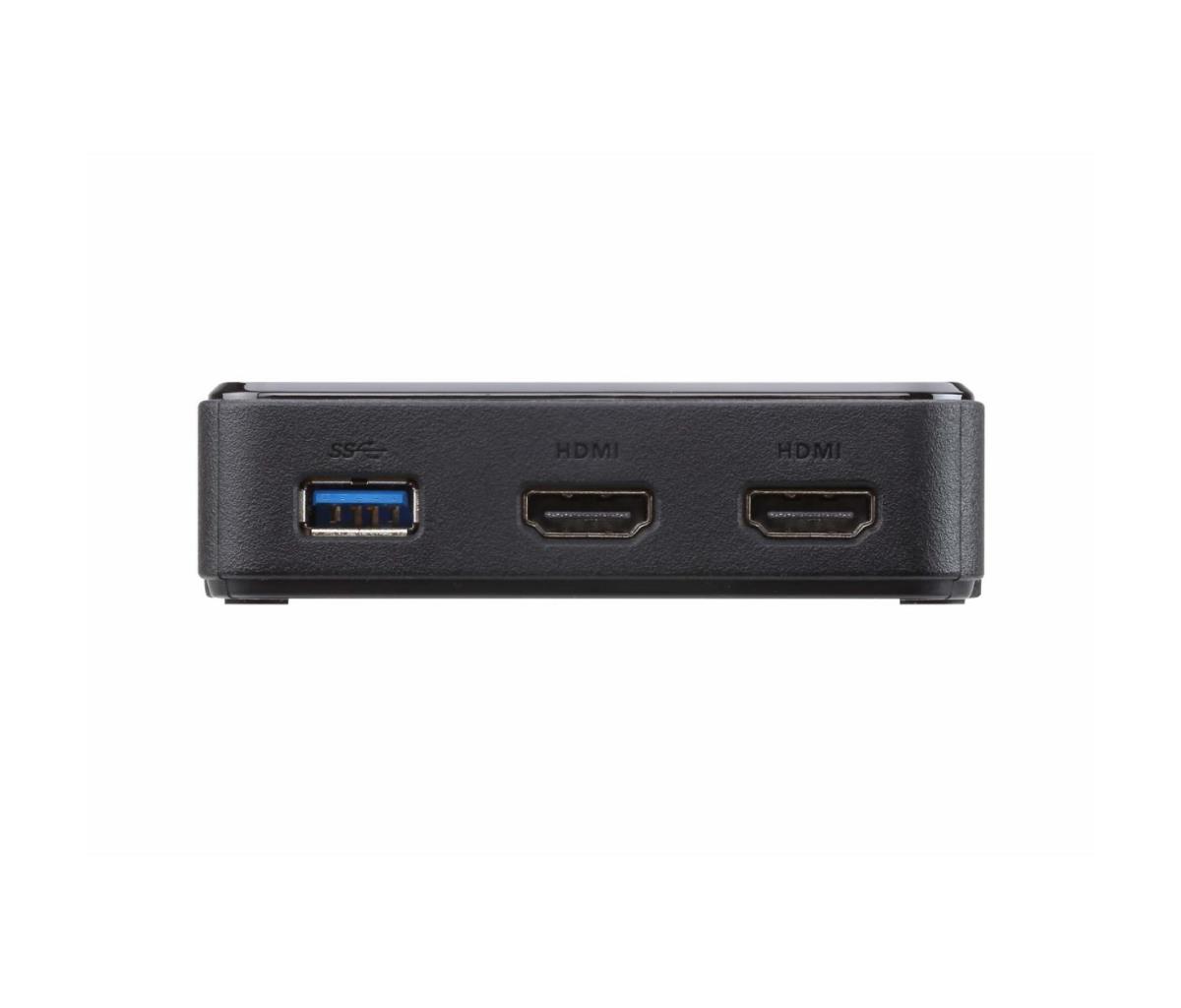

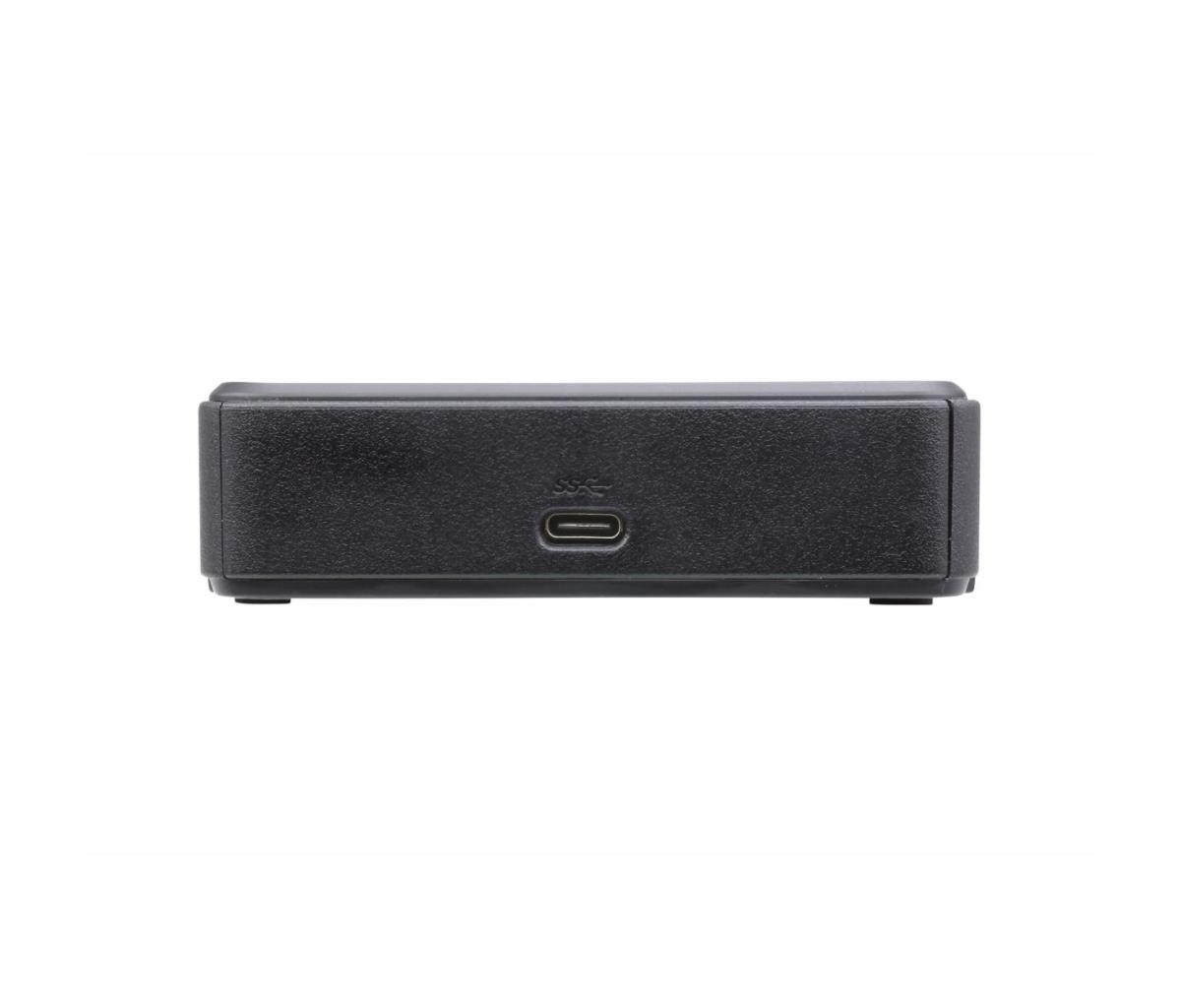

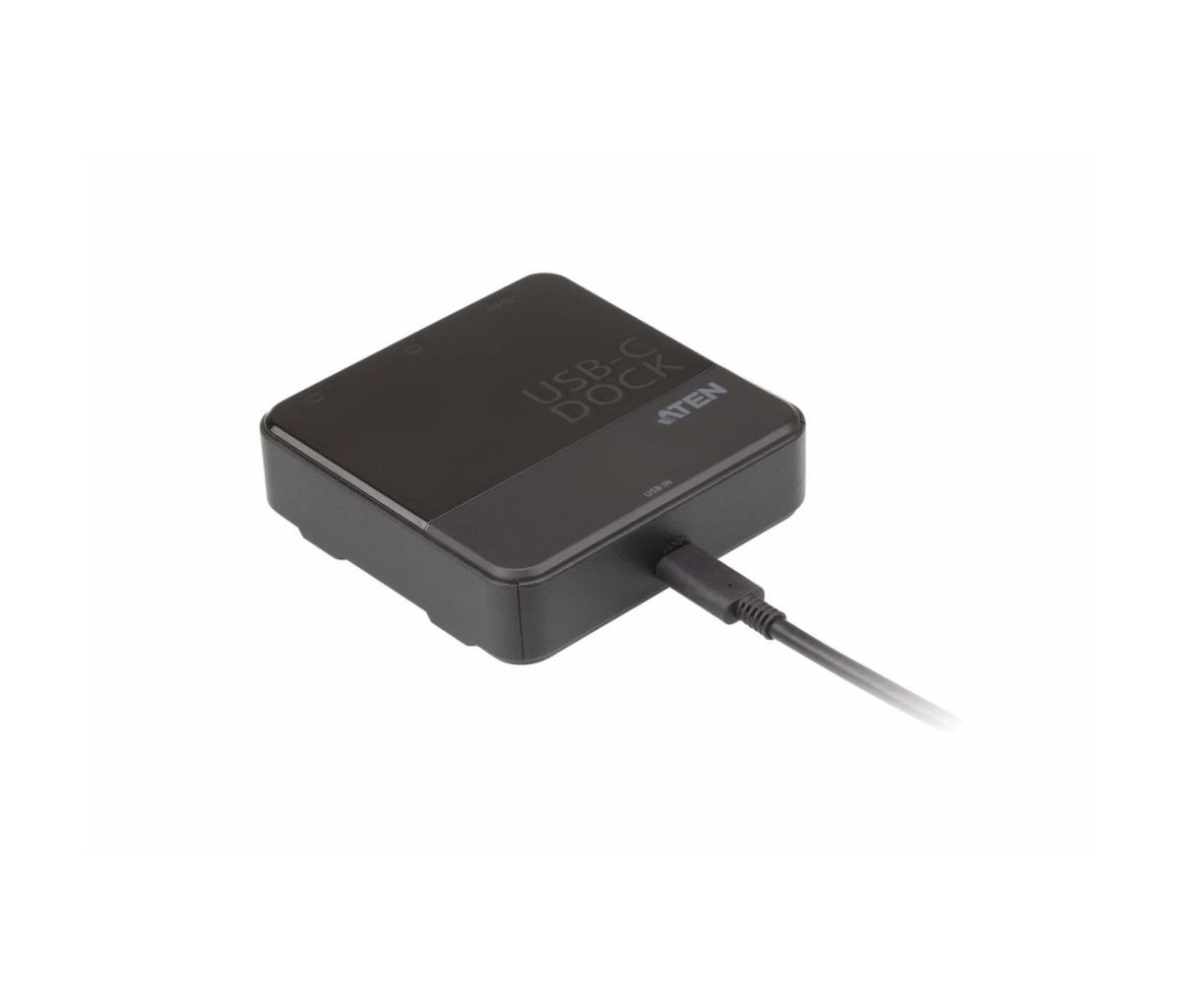

The ATEN UH3233 is a USB-C Dual-HDMI Mini Dock which transforms your USB-C device to a dual monitor workstation. It’s compliant with the latest USB 3.2 Type-C specifications and supports dual display mode. The UH3233 can route video from the source device to two HDMI monitors, splitting the video transmission for a dual-view display via a single cable while maintaining a high quality resolution up to 1080p.
The UH3233 uses USB-C connections to deliver reliable highspeed data transfers. You can connect up to 128 additional peripherals, including Dual HDMI and USB 3.2 Gen1 devices. The UH3233’s slim and light design makes it ideal to maximize your workspace and travel with for business on the go.
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 2 |
| Microphone in | No |
| Network | |
| Ethernet LAN | No |
| Performance | |
| Card reader integrated | No |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Number of displays supported | 2 |
| Product colour | Black |
| LED indicators | Yes |
| Plug and Play | Yes |
| Housing material | Plastic |
| Compatibility | UH3231, UH3230, UH3232, UH7230, CS1842, CS1844 |
| Power | |
| Power source type | USB |
| Power connector | USB Type-C |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 93.7 mm |
| Depth | 93 mm |
| Height | 26.8 mm |
| Weight | 100 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 55 mm |
| Package depth | 155 mm |
| Package height | 185 mm |
| Packaging content | |
| Cables included | USB Type-C |
| Quick start guide | Yes |
| Manual | Yes |
| Logistics data | |
| Master (outer) case width | 297 mm |
| Master (outer) case length | 385 mm |
| Master (outer) case height | 33 mm |
| Master (outer) case gross weight | 5.9 kg |
| Master (outer) case net weight | 2.8 kg |
| Harmonized System (HS) code | 84733020 |
| Warranty | |
| Base Warranty | Non Non |
