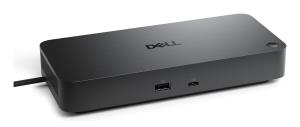

USB-c Docking Station - USB-c Hdmi Hub - 7 Port USB Dock
ITCurry #: 7564A737 | Article #: DK31C3MNCRUE-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
USB-C Docking Station | Triple/Dual 4K | 7x USB Hub | 60W USB Power Delivery | GbE
Connect a USB Type-C/Thunderbolt™ 4 enabled Chromebook and a combination of DisplayPort and HDMI monitors to this USB-C Docking Station. This dock supports Chromebooks and Ultra HD 4K monitors. The 3.3ft (1m) USB-C Screw Lock to USB-C Cable ensures a secure connection to the dock and host device.
Works With Chromebook (WWCB) certified
This USB-C Docking Station is tested and certified to meet Google's compatibility standards. The certification ensures seamless operation with Chromebook devices. This is the ideal dock to deploy in business and education environments. Automatic firmware updates are available through ChromeOS for maximum security, compatibility, and performance.
Enhance Productivity with Triple-4K Video
Connect a combination of one USB-C DP Alt Mode, one HDMI, and/or up to two DisplayPort monitors to the Video 1 and Video 2 Ports and connect one HDMI monitor to the Video 3 Port for a triple-monitor setup at 4K 30Hz, and features up to 4K 60Hz. High-resolution video performance is vital for applications involving detailed graphics, enhancing workplace productivity by expanding the display capabilities of Chromebook devices.
Works With Chromebook Docking Station Features
Connect the docking station to a Chromebook's USB Type-C/Thunderbolt™ 4 port to enable a variety of connectivity options and features.
• 3x USB-A ports with support for USB 10Gbps - one 1.5A charging port
• 2x USB-A ports with support for High-Speed 2.0 (480 Mbps) ports for USB-peripheral devices
• 2x USB-C ports with support for USB 10Gbps and Type-C data and 1.5A charging port, Video 1 Port (DP Alt Mode)
• 1x Gigabit Ethernet port
• 1x 3.5mm Audio Jack 4-pole TRRS for a 3.5mm headset
• 2x Kensington Security Lock Slots
60W USB Power Delivery 3.0
The USB-C Docking Station supports 60W USB Power Delivery, using the universal power adapter.
This product is backed for 3-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.
This product works with devices capable of running the latest version of ChromeOS and has been certified to meet Google's compatibility standards. Google is not responsible for the operation of this product or its compliance with safety requirements. Chromebook and the Works With Chromebook badge are trademarks of Google LLC. USB Type-C® and USB-C® are trademarks of USB Implementers Forum. Thunderbolt™ is trademark of Intel.
The StarTech.com Advantage
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Power Delivery | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 60 W |
| HDMI ports quantity | 2 |
| HDMI version | 2.0b |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Performance | |
| Data transfer rate | 10 Gbit/s |
| HD type | 5K Ultra HD |
| Maximum digital resolution | 5120 x 2880 pixels |
| Maximum refresh rate | 60 Hz |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| LED indicators | Network, Power |
| Power | |
| AC input voltage | 100 - 240 V |
| Input current | 2.37 A |
| Output voltage | 20 V |
| Output current | 6.75 A |
| Power consumption (typical) | 135 W |
| Compatible power plug types | EU, UK |
| Warranty | |
| Base Warranty | Non Non |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 70 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Width | 80 mm |
| Depth | 210 mm |
| Height | 32 mm |
| Packaging content | |
| Cables included | USB Type-C to USB Type-C |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Technical details | |
| Compliance certificates | CE, RoHS |
| Other features | |
| Chipset | Synaptics - VMM5320, Realtek -RTS5420, Parade - PS8469, Parade - PS8468, Parade - PS8805, Parade - PS8803, VIA/VLI - VL822 Realtek - ALC5686, VIA/VLI - VL211, Realtek - RTL8153B |
