Product Information

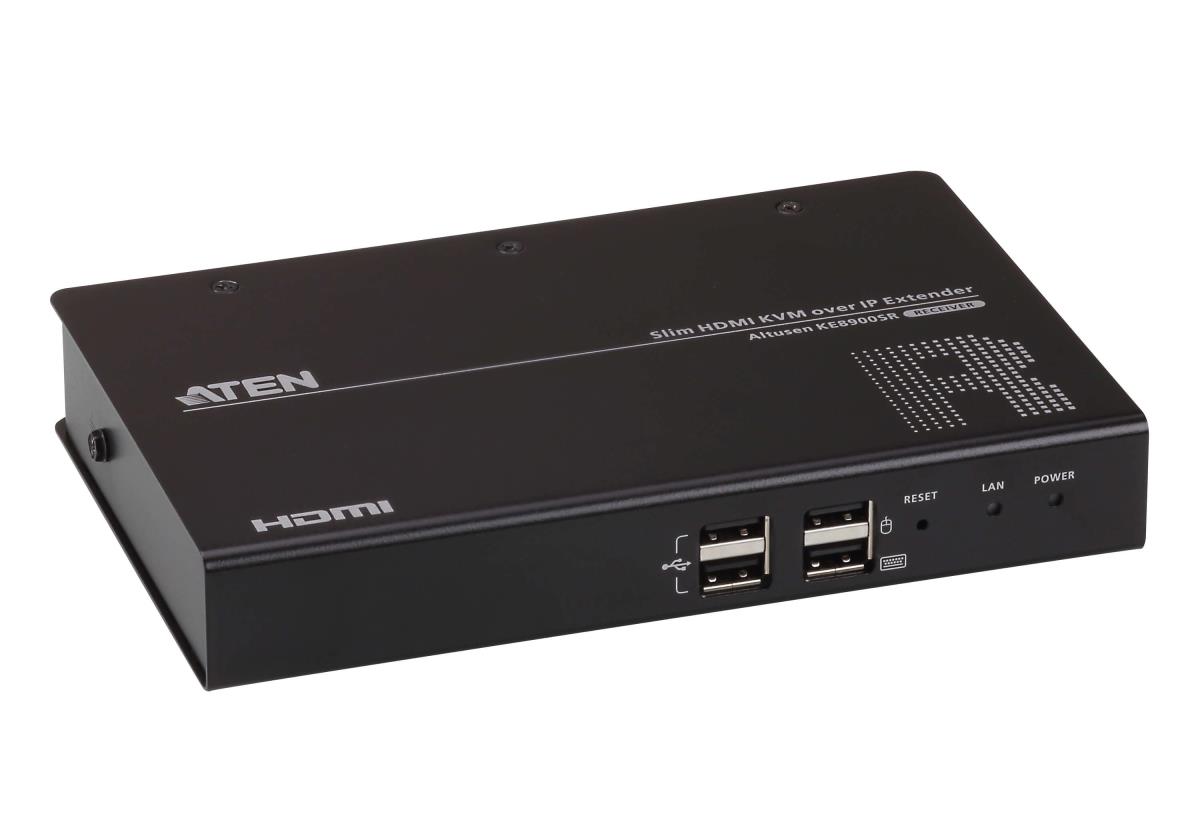

The KE8900S Slim HDMI KVM over IP Extender is a pair of compact and affordable high performance IP-based transmitter (KE8900ST) / receiver (KE8900SR) that allows access to a computer system from a remote USB console (USB keyboard, USB mouse, HDMI monitor) over an intranet, enabling users to locate computers in a secure and temperature controlled environment, which is isolated from users' workstation. The KE8900ST or KE8900SR can be paired with any KE Series* receiver or transmitter for a savings solution that stays within budget.
1x KE8900SR Slim HDMI Single Display KVM over IP Receiver
1x 0AD6-1005-26EG Power Adapter
1x Mounting Kit
1x 0X12-0017-700G HDMI Lockpro
1x User Instructions
Features | |
Type | Receiver |
Connectivity technology | Wired |
Rack mounting | Yes |
Maximum digital resolution | 1920 x 1200 pixels |
KVM port selection | OSD, Push-buttons |
Supported resolutions | 640 x 480 - 1920 x 1200 |
On Screen Display (OSD) | Yes |
Product colour | Black |
Material | Metal |
USB 2.0 ports quantity | 4 |
LED indicators | Yes |
Receiver | |
Receiver local video port type | HDMI |
Receiver local keyboard/mouse port type | USB |
RJ-45 ports quantity (receiver) | 1 |
Power | |
AC adapter output voltage | 5 V |
Power consumption (receiver) (max) | 4.35 W |
Operational conditions | |
Operating temperature (T-T) | 0 - 50 øC |
Storage temperature (T-T) | -20 - 60 øC |
Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions | |
Receiver width | 18.2 cm |
Receiver depth | 11.8 cm |
Receiver height | 2.87 cm |
Receiver weight | 640 g |
Packaging data | |
Package width | 100 mm |
Package depth | 283 mm |
Package height | 173 mm |
Package weight | 1.04 kg |
Technical details | |
Weight | 1.01 kg |
Packaging content | |
AC adapter included | Yes |
Manual | Yes |
Mounting bracket(s) included | Yes |
Ports & interfaces | |
USB port type | USB Type-A |
RS-232 ports | 1 |
Logistics data | |
Master (outer) case net weight | 5.05 kg |
Harmonized System (HS) code | 84733080 |
Master (outer) case width | 292 mm |
Master (outer) case length | 517 mm |
Master (outer) case height | 194 mm |
Master (outer) case gross weight | 5.74 kg |
Products per master (outer) case | 5 pc(s) |
Warranty | |
Base Warranty | Non Non |
