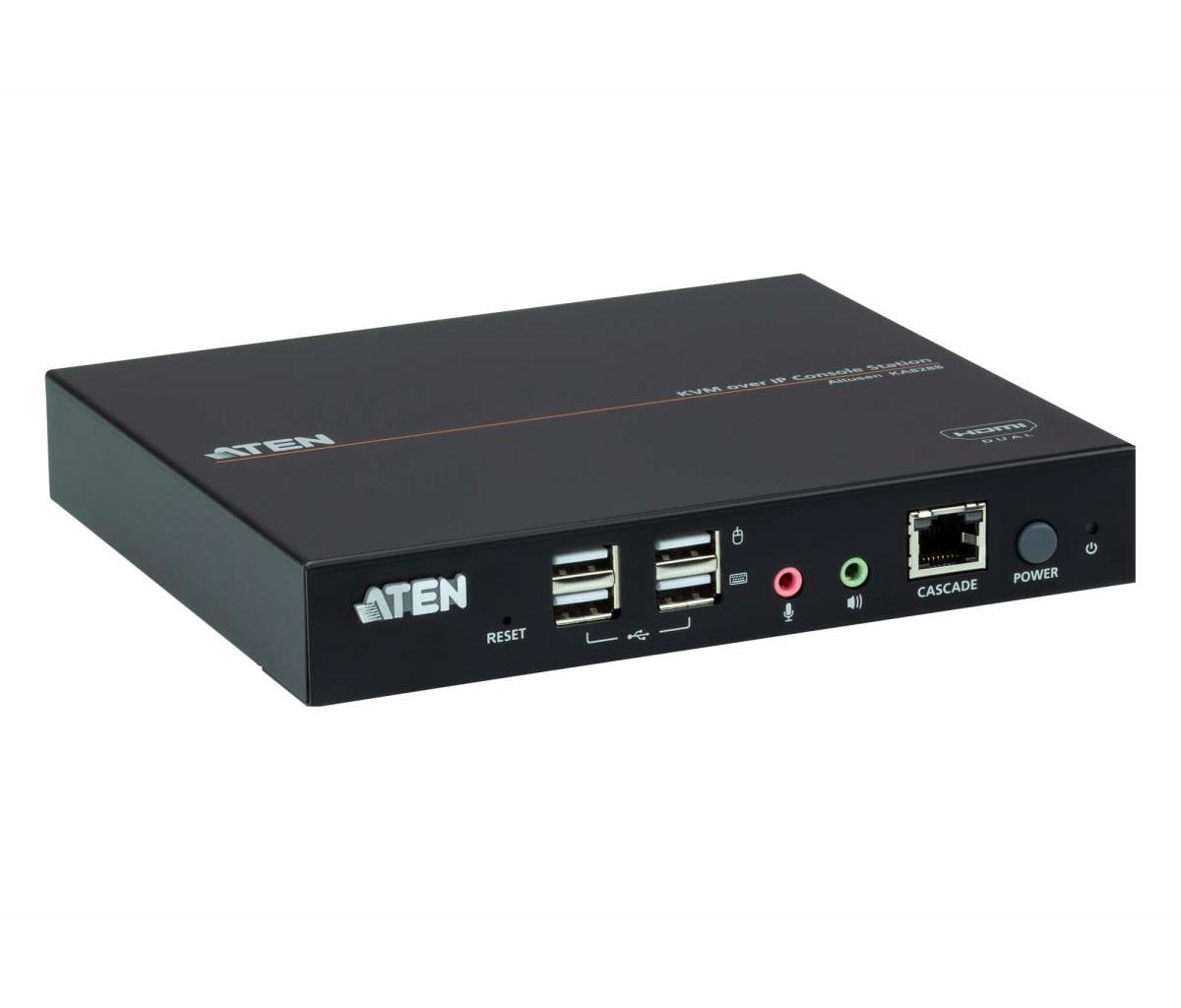

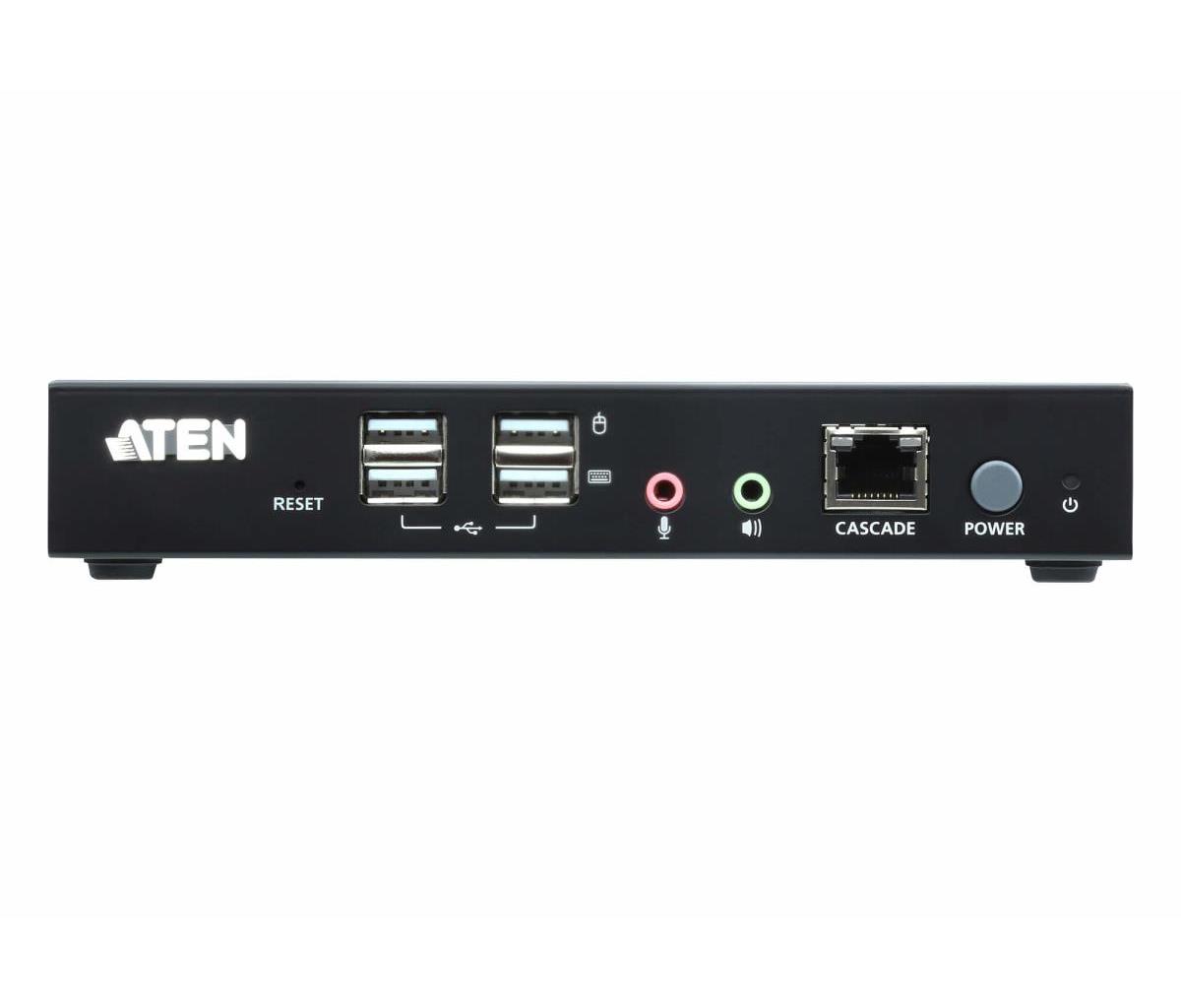

Dual Hdmi KVM Over Ip Console Station
ITCurry #: 90313807 | Article #: KA8288-AX-G
slide 2 of 5
Related products
slide 6 to 10 of 15
Product Information

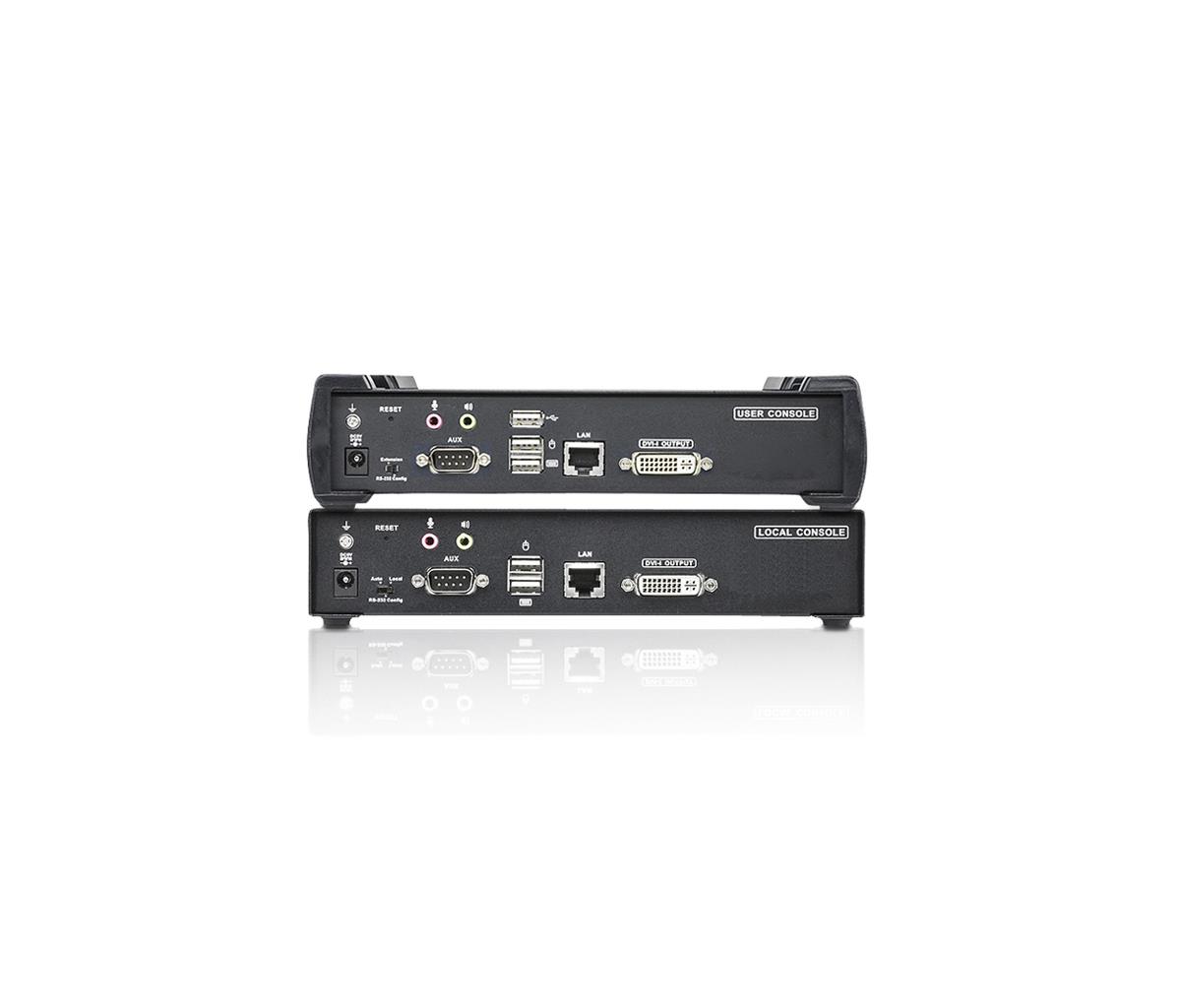

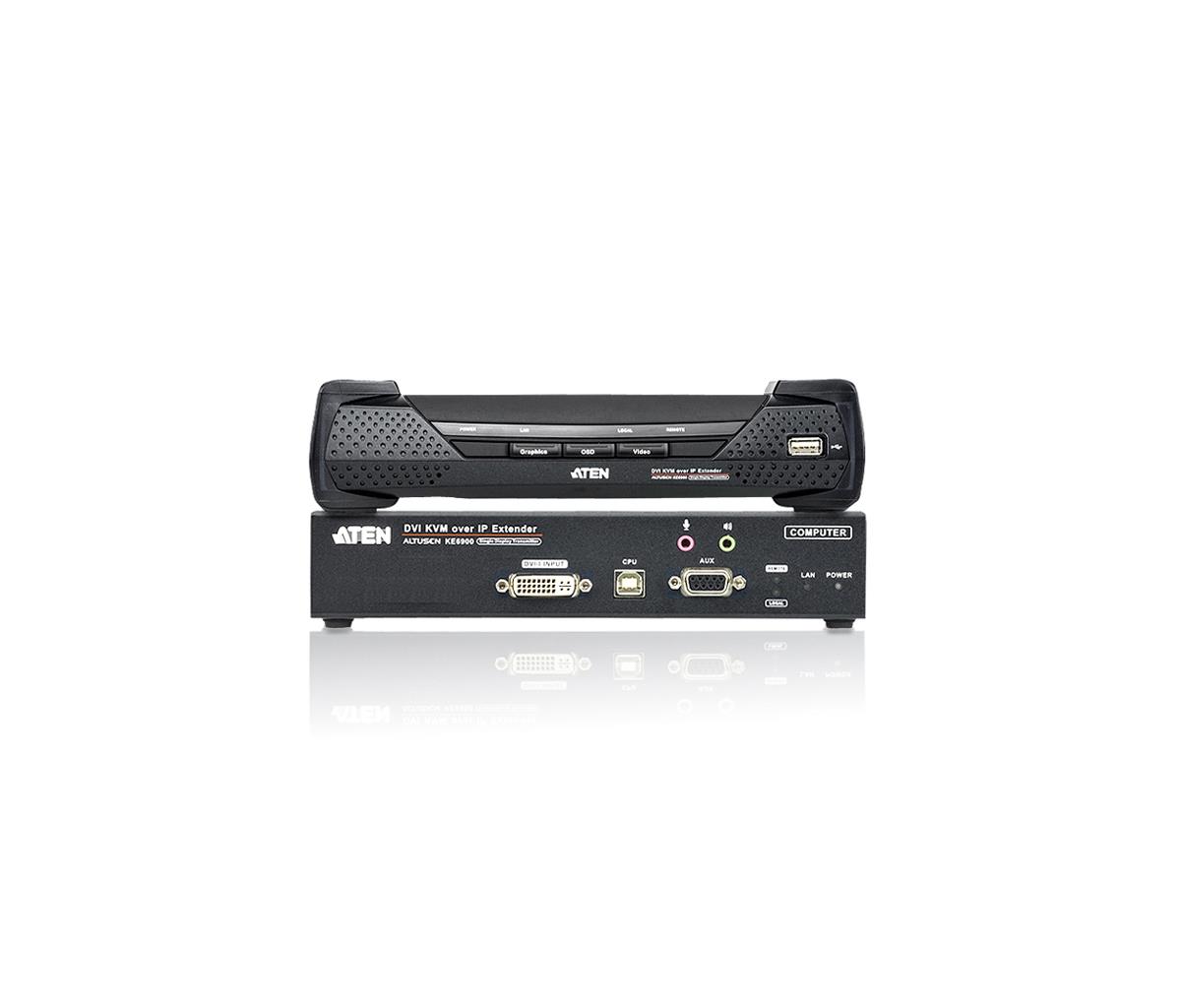

ATEN is well known for delivering innovative technologies that drive connectivity and access management solutions. As such, we introduce the new Altusen™ KE6900 DVI KVM Over IP Extender that brings together a unique blend of features and new technologies that offer the ultimate solution for extending computers to consoles on or off your IT infrastructure.
| Features | |
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1200 pixels |
| LED indicators | Yes |
| Material | Metal |
| Product colour | Black |
| Compatible products | CS72D,CS1642A,CS1184,CS1782A,CS1784A,CM0264,CS1762A,CS1764A,CS1732B,CS1734B,KL1516Ai,CL6700,CM1164,CS1308,CS1732A,CE604,CS1734A,CS1708A,CS22D,CL5716,CS682,KN4140v,KL3116,2L-7D02UI,CE750,2L-7D03UI,2L-7D02U,CCKM,2L-7D03U,CS62U,2L-7D05U,UC10KM,CL5716M,CL5716N,2X-021G,2X-031G,2L-7DX2U,2L-7DX3U,ES0152,ES0152P,CL3884NW |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 2 |
| DVI input ports | 1 |
| DVI output ports | 2 |
| USB ports quantity | 6 |
| USB version | 2.0 |
| USB connector type | USB Type-A, USB Type-B |
| RS-232 input ports | 2 |
| Audio input | 2 |
| Audio output | 2 |
| Serial ports quantity | 3 |
| Serial interface type | RS-232 |
| DC-in jack | Yes |
| Power | |
| Operating voltage (transmitter) | 5 V |
| Operating voltage (receiver) | 5 V |
| Power consumption (transmitter) (max) | 7.34 W |
| Power consumption (receiver) (max) | 6.9 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Receiver dimensions (WxDxH) | 227.5 x 171.6 x 54.8 mm |
| Receiver weight | 1.25 kg |
| Transmitter dimensions (WxDxH) | 215 x 162.9 x 45.6 mm |
| Transmitter weight | 1.14 kg |
| Packaging data | |
| Package width | 247 mm |
| Package depth | 556 mm |
| Package height | 153 mm |
| Package weight | 4.61 kg |
| Packaging content | |
| AC adapter included | Yes |
| Packaging content | 1x KE6900T DVI KVM Over IP Extender (Transmitter) 1x KE6900R DVI KVM Over IP Extender (Receiver) 2x 0AD8-8005-40MG Power Adapters 2x LIN2-418K-E12G Power Cord 1x 2L-7D02U USB DVI-D KVM Cable (1.8m) 1x Mounting Kit for KE6900T 1x Mounting Kit for KE6900T 1x User Instructions |
| Technical details | |
| Country of origin | Taiwan |
| Logistics data | |
| Master (outer) case width | 247 mm |
| Master (outer) case length | 556 mm |
| Master (outer) case height | 153 mm |
| Master (outer) case gross weight | 4.61 kg |
| Master (outer) case net weight | 3.76 kg |
| Products per master (outer) case | 1 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
Dual Hdmi KVM Over Ip Console Station
1009.92
