KVM 17in LCD Console 1u - Cl1000m
ITCurry #: 90312505 | Article #: CL1000M-ATA-XG
slide 2 of 3
Price:
498.29
Ex VAT
Shipping:
FREE Shipping.
Out of Stock. Contact Us!
Related products
slide 6 to 10 of 15
Product Information

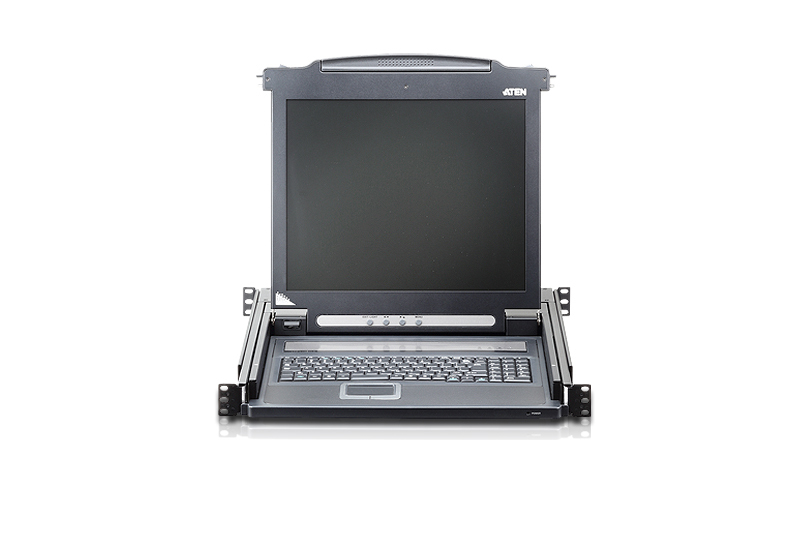

The CL1000 is a LCD KVM console that serves as the front-end for standard KVM switches. The CL1000 features an integrated 17" or 19" LED-backlit LCD panel, full keyboard, and touchpad in a 1U, rack-mountable, Slideaway™ housing.
1x CL1000M or CL1000N with Standard Rack Mount Kit
1x 2L-5202UP Custom KVM Cable (VGA, USB; 1.8m/6ft)
1x LIN2-418K-E12G Power Cord
1x User Instructions
| Warranty | |
| Base Warranty | Carry-in Non |
| Display | |
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Display | TFT-LCD |
| Display brightness | 250 cd/mý |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 170ø |
| Viewing angle, vertical | 160ø |
| Pixel pitch | 0.264 x 0.264 mm |
| Display number of colours | 16.78 million colours |
| Technical details | |
| Material | Metal, Plastic |
| Product colour | Black |
| Operating relative humidity (H-H) | 0 - 80% |
| Maximum resolution | 1920 x 1200 pixels |
| Rack mounting | Yes |
| Connector type | SPHD |
| Number of computers controlled | 1 |
| LED indicators | Yes |
| Compliance certificates | RoHS |
| Rack capacity | 1U |
| Ports & interfaces | |
| Keyboard port type | PS/2 |
| Mouse port type | PS/2 |
| Keyboard | |
| Built-in touchpad | Yes |
| Hot keys | Yes |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Power | |
| Power consumption (typical) | 21.3 W |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50 - 60 Hz |
| Input current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Weight & dimensions | |
| Width | 538.3 mm |
| Height | 44 mm |
| Depth | 480 mm |
| Weight | 12 kg |
| Packaging data | |
| Package weight | 14.6 kg |
| Package width | 650 mm |
| Package depth | 604 mm |
| Package height | 130 mm |
| Packaging content | |
| Cables included | AC, KVM |
| Quick installation guide | Yes |
| Rack mount kit | Yes |
| Logistics data | |
| Master (outer) case net weight | 12 kg |
| Master (outer) case width | 650 mm |
| Master (outer) case length | 604 mm |
| Master (outer) case height | 130 mm |
| Master (outer) case gross weight | 14.6 kg |
| Products per master (outer) case | 1 pc(s) |
