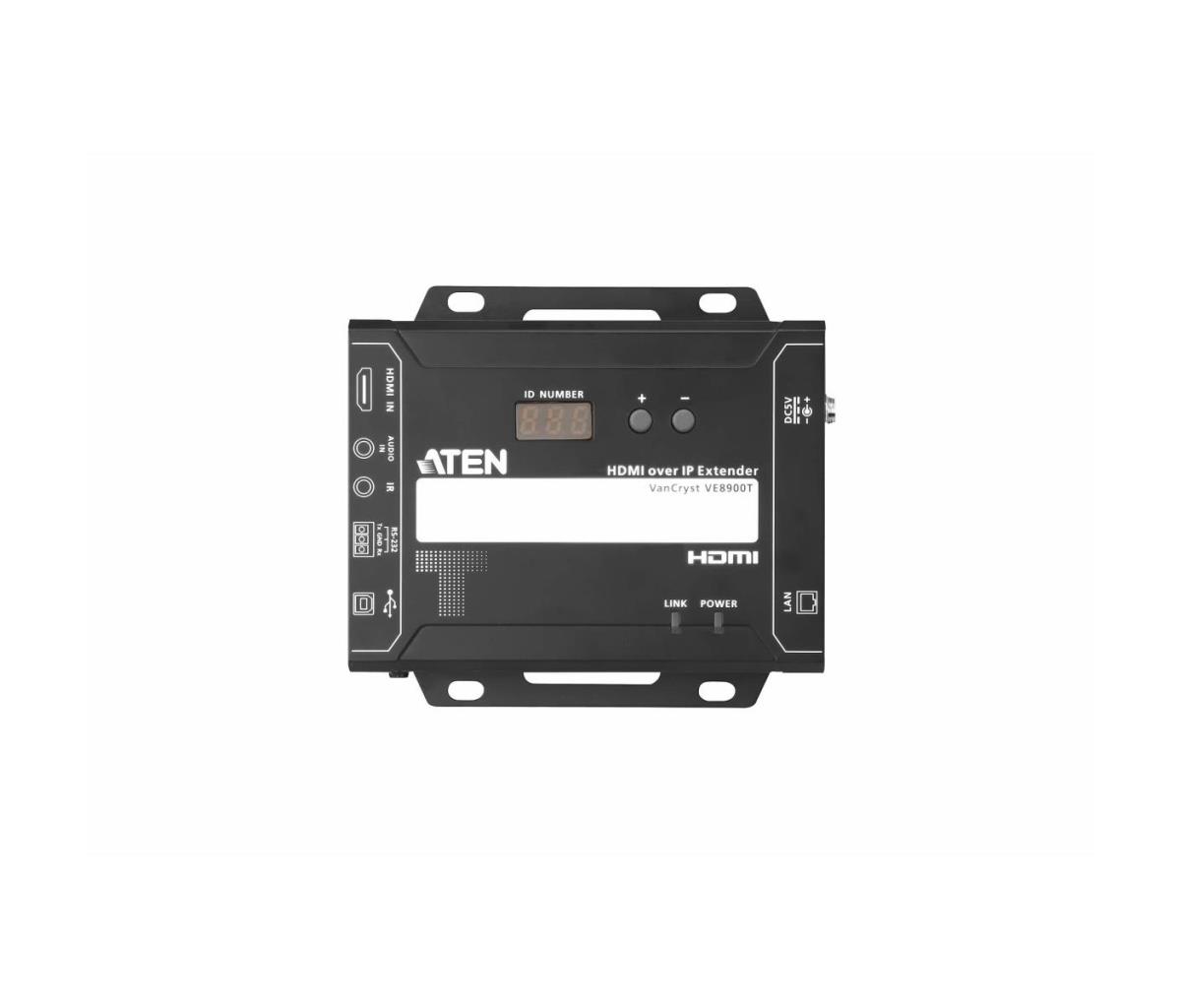

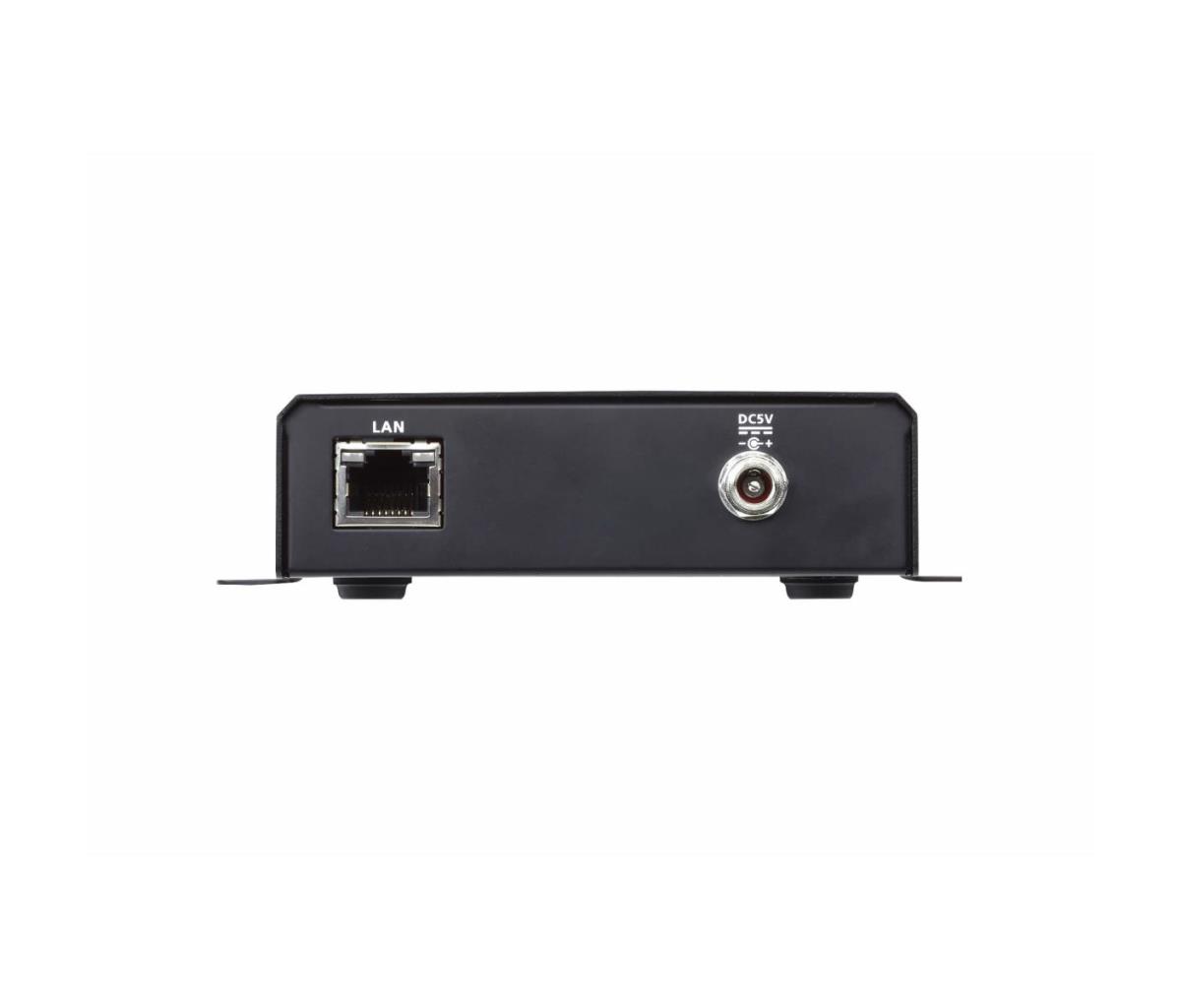

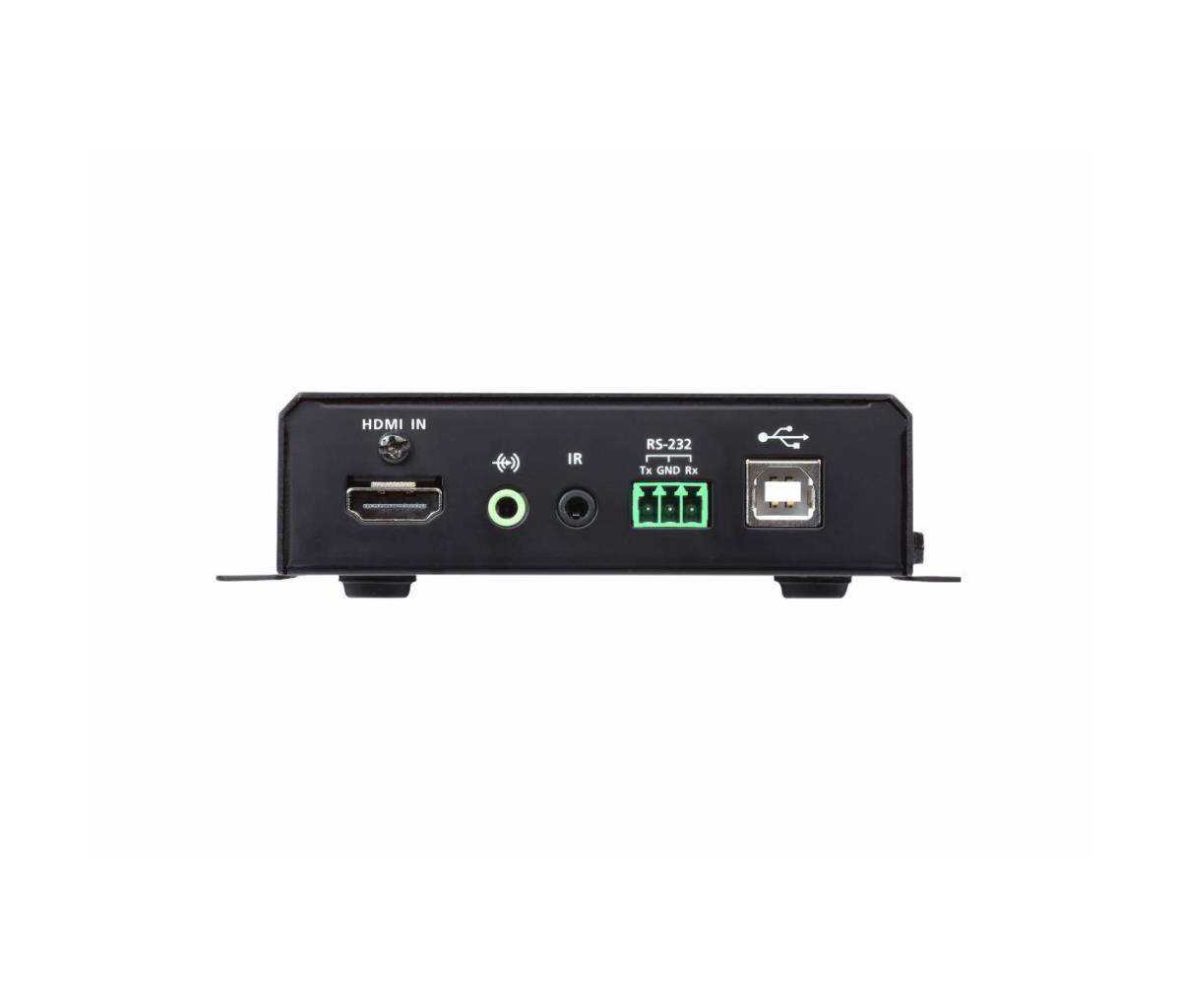

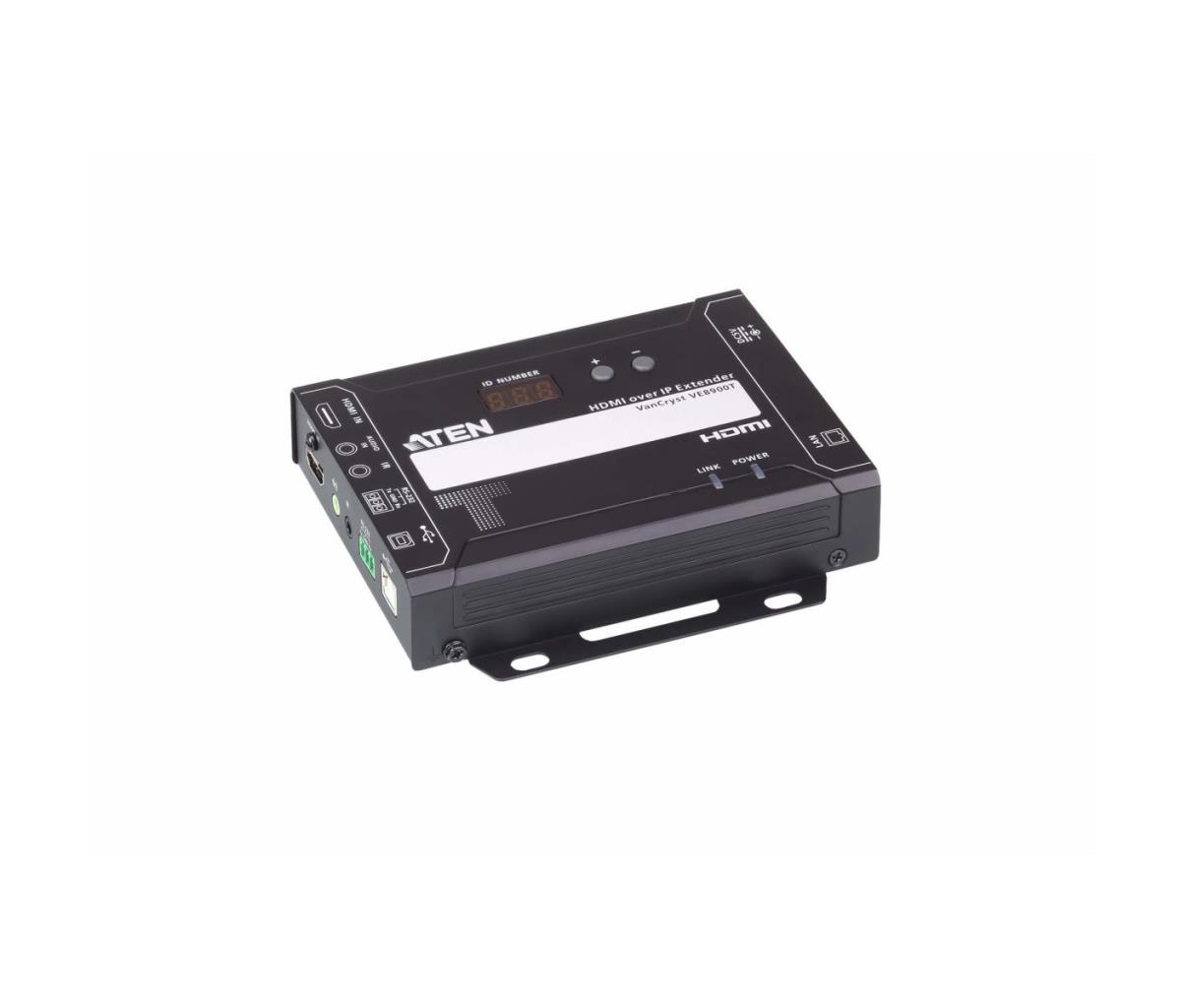

Hdmi Over Ip Transmitter With USB Peripheral Support And Ir / Rs-232 / Ethernet (webgui)
ITCurry #: 90314069 | Article #: VE8900T-AT-G
slide 2 of 5
Price:
607.02
Ex VAT
Shipping:
FREE Shipping.
Out of Stock. Contact Us!
Related products
slide 6 to 10 of 15
Product Information
The ATEN VE8900T Video over IP Transmitter delivers visually lossless 1080p AV signals with low latency over long distance via a local network of standard Gigabit network switch*
1x VE8900T HDMI over IP Transmitter
1x RS-232 Terminal block
1x 0AD8-1F05-30M1 5V Power adapter
1x User instructions
| Features | |
| Type | AV transmitter |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 100 m |
| Maximum refresh rate | 60 Hz |
| Extended display identification data (EDID) | Yes |
| Supported video modes | 1080p |
| Material | Metal |
| Impedance | 100 O |
| Product colour | Black |
| Ports & interfaces | |
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| HDMI in | 1 |
| USB ports quantity | 1 |
| USB connector type | USB Type-B |
| DC-in jack | Yes |
| Power | |
| Operating voltage (transmitter) | 5 V |
| Power consumption (TX) | 3.07 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 136 mm |
| Depth | 101 mm |
| Height | 29.6 mm |
| Weight | 640 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 774 g |
| Packaging content | |
| AC adapter included | Yes |
| Manual | Yes |
| Logistics data | |
| Master (outer) case width | 250 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case gross weight | 4.55 kg |
| Master (outer) case net weight | 3.2 kg |
| Products per master (outer) case | 5 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
