Cl5708n-ata-xg 8 Port 19i LCD KVM Switch WithUSB Peripheral Port

ITCurry #: 90313948 | Article #: CL5708N-ATA-XG
Price:
923.51 Ex VAT
Shipping:
FREE Shipping.
Out of Stock. Contact Us!
Email us for assistance

Related products

slide 6 to 10 of 15

Product Information

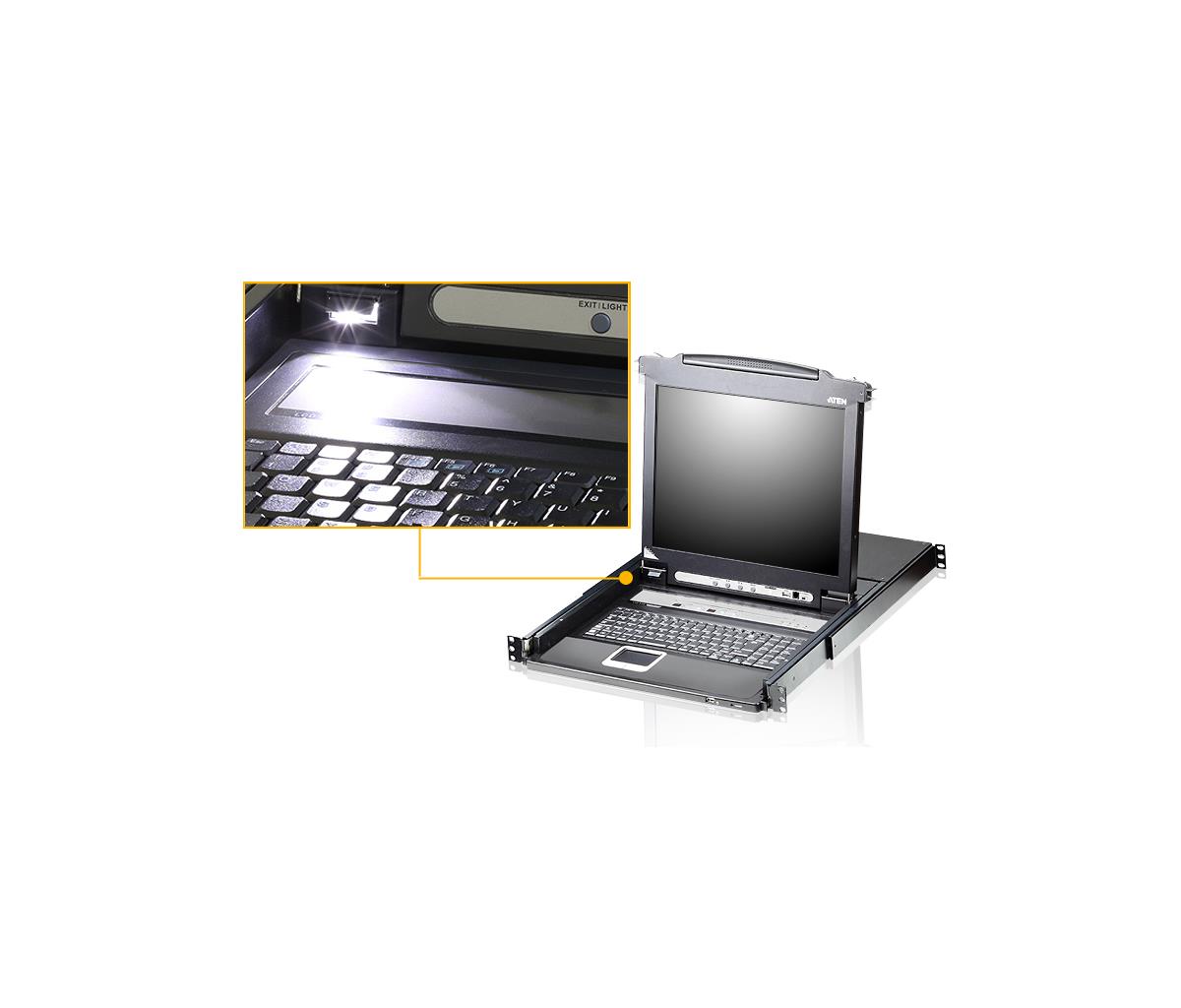

The CL5708 Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708 can control up to 8 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708, so that up to 256 computers can all be controlled from a single KVM console.
1x CL5708 LCD KVM Switch with standard Rack Mount Kit
2x 2L-5202U USB KVM Cable
1x LIN5-27X6-U21G 5-in-1 USB / PS/2 Console Cable
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x LIN2-418K-E12G Power Cord (AC Power Models)
1x User Instructions

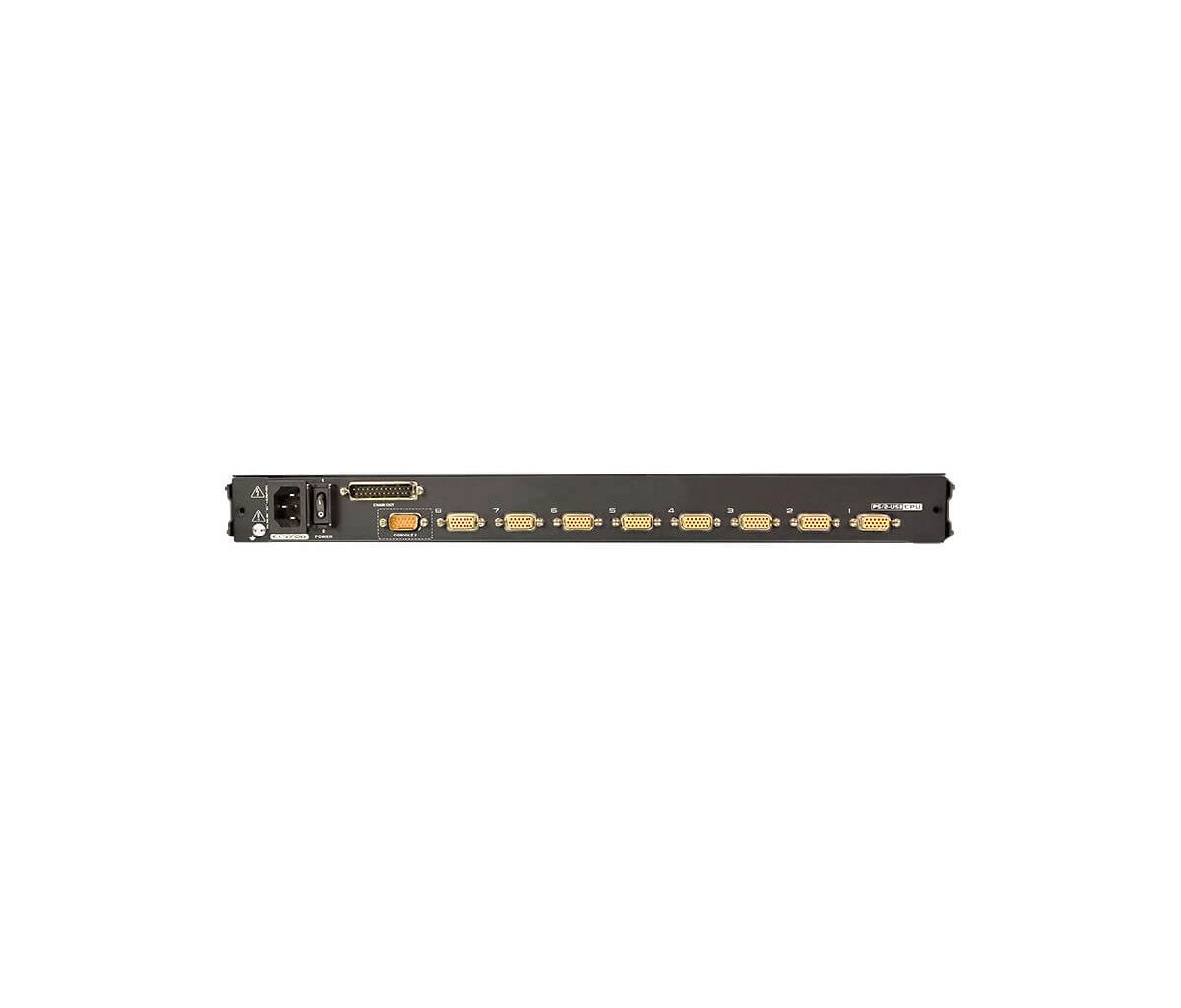

Ports & interfaces
Number of computers controlled 8
Keyboard port type USB
Mouse port type USB
Video port type VGA
Console ports VGA (D-Sub)
USB connector type USB Type-A
Performance
HD type WUXGA
Maximum resolution 1920 x 1200 pixels
Scan interval 1,255 s
DDC2B support Yes
Hot-swap Yes
Design
Rack mounting Yes
Rack capacity 1U
Product colour Black
Housing material Metal, Plastic
LED indicators Yes
Display
Built-in display Yes
Display LCD
Display diagonal 48.3 cm (19")
On Screen Display (OSD) Yes
Power
Power source AC
Input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
System requirements
Windows operating systems supported Yes
Linux operating systems supported Yes
Mac operating systems supported Yes
Operational conditions
Operating temperature (T-T) 0 - 50 øC
Storage temperature (T-T) -20 - 60 øC
Operating relative humidity (H-H) 0 - 80%
Weight & dimensions
Width 689.2 mm
Depth 480 mm
Height 44 mm
Weight 13.6 kg
Packaging data
Package width 668 mm
Package depth 833 mm
Package height 135 mm
Package weight 17 kg
Packaging content
Quick installation guide Yes
Manual Yes
Logistics data
Master (outer) case net weight 13.6 kg
Harmonized System (HS) code 85176200
Master (outer) case width 668 mm
Master (outer) case length 833 mm
Master (outer) case height 135 mm
Master (outer) case gross weight 17.1 kg
Products per master (outer) case 1 pc(s)
Warranty
Base Warranty Non Non
