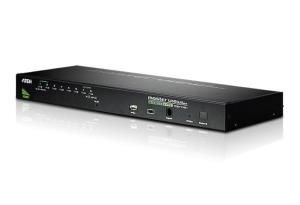

Console 8-port 19in LCD KVM Switch Ps/2-USB Azerty French
ITCurry #: 90313761 | Article #: CL1308N-ATA-XGFlash Sale
Less than 5 units remaining
Less than 10 units remaining
Less than 20 units remaining
More than 20 units are available
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} days remaining
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} day remaining
Price:
1260.14
Inc VAT
Ex VAT
Shipping:
Out of Stock. Contact Us!
Key Specifications
-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Inc VAT
Ex VAT
Out of Stock. Contact Us!
Inc VAT
Ex VAT
Out of Stock. Contact Us!
Related products
Product Information
With limited server room space and rising maintenance costs, network administrators are now more than ever looking for solutions that reduce both costs and space requirements. ATEN LCD KVM Switches offer a space saving, streamlined approach to KVM switching technology by integrating an LCD panel, full keyboard, and touchpad into a 1U rack-mountable sliding housing.
1x CL1308 LCD KVM Switch with Rack Mount Kit
2x 2L-5202U Custom KVM Cable Cable (1.8m)
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x LIN2-418K-E12G Power Cord
1x User Instructions
| Ports & interfaces | |
| Number of computers controlled | 128 |
| Keyboard port type | PS/2 |
| Mouse port type | USB |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 8 |
| Console ports | VGA (D-Sub) |
| Performance | |
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,255 s |
| DDC2B support | Yes |
| Hot-Plug support | Yes |
| Firmware upgradeable | Yes |
| Design | |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Metal, Plastic |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Display | |
| Built-in display | Yes |
| Display | LCD |
| Display diagonal | 48.3 cm (19") |
| On Screen Display (OSD) | Yes |
| Power | |
| Power source | AC |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Power consumption (typical) | 22 W |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Warranty | |
| Base Warranty | Non Non |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 483 mm |
| Depth | 689.2 mm |
| Height | 44 mm |
| Weight | 12.7 kg |
| Packaging data | |
| Package width | 668 mm |
| Package depth | 833 mm |
| Package height | 135 mm |
| Package weight | 16.1 kg |
| Packaging content | |
| Cables included | AC, KVM |
| Quick installation guide | Yes |
| Manual | Yes |
| Rack mount kit | Yes |
| Logistics data | |
| Master (outer) case net weight | 12.7 kg |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 668 mm |
| Master (outer) case length | 833 mm |
| Master (outer) case height | 135 mm |
| Master (outer) case gross weight | 16.5 kg |
| Products per master (outer) case | 1 pc(s) |
