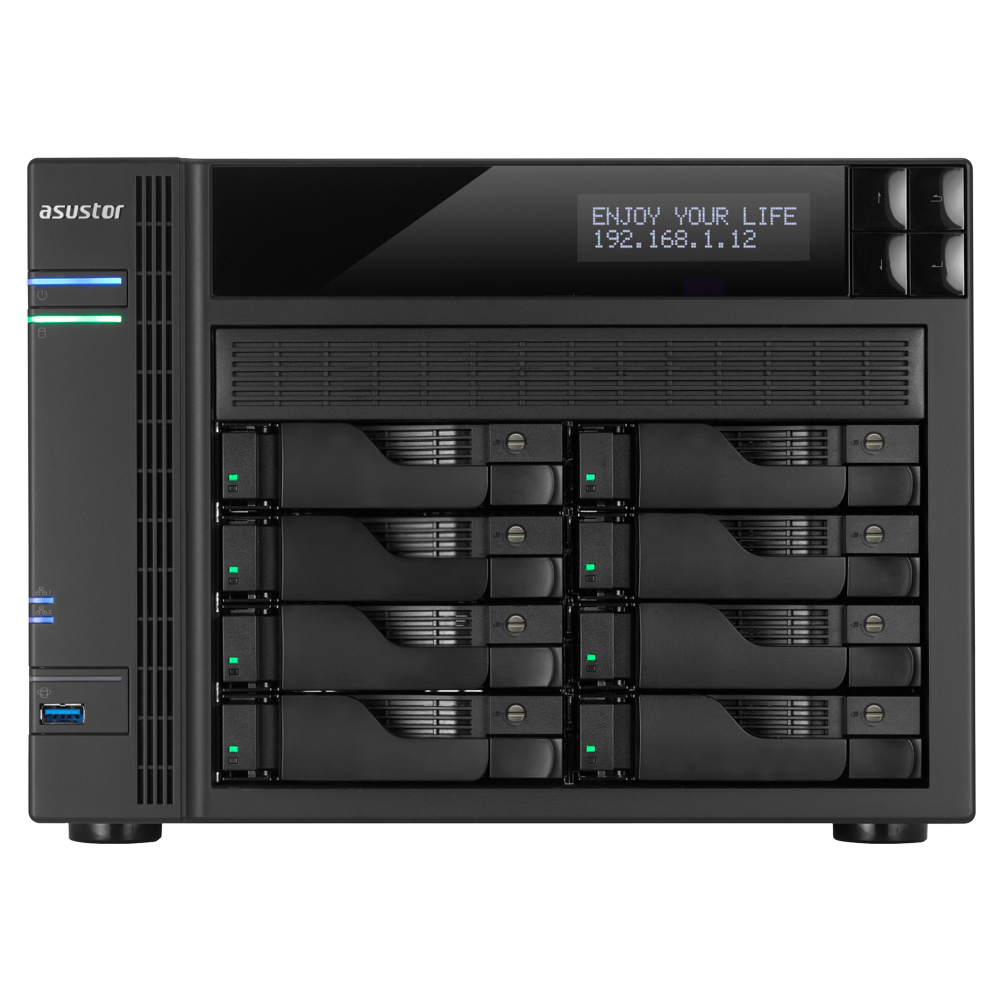

As-7008t 8bay Storage System 3.5GHz 2GB 2x Gbe 3x USB3 2x USB2 Hdmi
ITCurry #: T4062073 | Article #: 90IX00B1-BW3S10-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
A Surge in Data Transfer Performance
ADM 2.6 supports SMB 2.0 which reduces the burden of network traffic on the NAS while simultaneously providing greater data transfer capacity.In the ASUSTOR testing environment, SMB 2.0 was found to increase Windows networking performance by 30%-50%. SMB 2.0 also significantly increases the number of concurrent Windows client connections and simultaneously open files, making ADM 2.6 even more suitable for large-scale Microsoft network environments.
Advanced File Permissions Management - Windows ACL
For IT professionals, file permissions configuration is a very important topic, especially in enterprise environments. Because the native Linux system file permission mechanisms are different than those in Windows, in the past, IT professionals had to create a separate set of permissions for files stored on NAS servers. This also limited the number of permission configuration options that were available to them.
In order to help IT professionals simply their work, ASUSTOR has comprehensively integrated Windows ACL into ADM. Windows ACL provides a set of 13 different permissions settings, allowing administrators to configure permissions for individual files and folders that can be applied to different groups and users. Windows ACL permissions can be configured from within ADM's File Explorer or Microsoft Windows Explorer allowing administrators to easily manage permissions using familiar methods.
Optimized Cooling Design
When there is a high load on the NAS, the CPU will begin to heat up, affecting the stability of the system. A common way of dealing with this is to lower the CPU frequency which will then cause the temperature to decrease. However, this will also lower the overall performance of the system.
ASUSTOR's 70 Series devices utilize fans with wide speed ranges combined with a smart speed control mechanism that allows the CPU to maintain a controlled operating temperature even under high loads. Under most circumstances the fans will operate at a low speed, conserving energy. When the system load and temperature increases, the fans will automatically increase their speed to cool the CPU without it having to lower its frequency. This allows the NAS to maintain stability and high performance even under high loads.
Extreme Multimedia Playback
No matter if it's 4K or 10bit, KODI 17 paired with the Intel Core i3 dual-core processor's powerful built-in graphics engine gives you the ability to play any video files with ease. Get ready to enjoy brilliant and flawless images on ultra high resolution monitors.
Additionally, you can also further add a surround sound amplifier to create an unprecedented high definition multi-channel listening experience. Imagine watching your favorite racing movie and being immersed in the roar of the engines. Feel the thrill and the sense of speed as you listen to the sounds of cars whizzing by. Prepare for an unparalleled entertainment experience that will have you on the edge of your seat.
Even More Reliable After-Sales Service
ASUSTOR has extended the warranty period on all of its products to three years, continuing to make customer service a huge priority. It is ASUSTOR's mission to continue to provide its customers with products of the highest quality along with only the most reliable and attentive after-sales service and technical support.
Secure Disk Tray Lock Design
In order to help users avoid accidentally pushing disk tray buttons and releasing hard disks during operation, ASUSTOR has added a new lock mechanism to its hard disk trays. The lock's flat-head design ensures that users will not need any special keys or tools to unlock it, only a simple flat-head screw driver. The new disks trays can be used with all ASUSTOR NAS devices, providing an additional layer of security for applications requiring the frequent swapping of hard disks (e.g., MyArchive).
We've got it Ready: 4K Ultra High Definition
ASUSTOR Portal offers complete support for 4K ultra high definition output. With 4K ultra high definition, the desktop background and icons appear clearer and sharper giving you a luxurious and immersive visual experience.
Create a Stable, Reliable and High Quality Surveillance System
The powerful 70 Series devices provide you with stress free reliability when installing a surveillance system in your home or office environment. Installing the Surveillance Center App from App Central instantly turns your NAS into 24/7, high definition surveillance system. Surveillance Center provides comprehensive cross-platform support, allowing both Windows and Mac users to use familiar web browsers to access their surveillance feeds. Furthermore, ASUSTOR also offers the free AiSecure mobile app that gives users access to all their surveillance feeds while on the go. AiSecure also provides the ability to receive instant push notifications from Surveillance Center, allowing users to keep up with the latest developments. No matter if you need to protect individual assets, loved ones or your business, the powerful 70 Series devices are your optimal choice when creating a comprehensive surveillance system.
| Storage | |
| Storage drive interface | Serial ATA II, Serial ATA III |
| Storage drive size | 2.5/3.5" |
| Maximum supported storage capacity | 80 TB |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10 |
| Hot-swap drive bays | Yes |
| Storage drives installed | No |
| Number of storage drives supported | 10 |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Processor | |
| Processor manufacturer | Intel |
| Processor generation | 4th gen Intel© CoreT i3 |
| Processor family | Intel© CoreT i3 |
| Processor model | i3-4330 |
| Processor frequency | 3.5 GHz |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor cache | 4 MB |
| Bus type | DMI2 |
| CPU configuration (max) | 1 |
| ECC supported by processor | Yes |
| PCI Express configurations | 2x8, 1x8+2x4 |
| Processor cache type | Smart Cache |
| Processor codename | Haswell |
| Processor lithography | -, 22 |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor socket | LGA 1150 (Socket H3) |
| Scalability | 1S |
| Stepping | C0 |
| Tcase | 66.8 øC |
| Thermal Design Power (TDP) | 65, 54 |
| On-board graphics card model | Intel© HD Graphics 4600 |
| Maximum internal memory supported by processor | 32 GB |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| Conflict-Free processor | Yes |
| Memory | |
| Internal memory type | DDR3 |
| Maximum RAM supported | 16 GB |
| Internal memory | 2 GB |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ports & interfaces | |
| USB port | Yes |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| eSATA ports quantity | 2 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Graphics | |
| On-board graphics card memory | 1 GB |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| On-board graphics card DirectX version | 11.1 |
| On-board graphics card ID | 0x412 |
| Maximum on-board graphics card memory | 1.74 GB |
| Number of displays supported (on-board graphics) | 3 |
| Design | |
| Product colour | Black, Grey |
| LED indicators | HDD, Power, Status |
| Built-in display | Yes |
| Display type | LCD |
| Performance | |
| Type | NAS |
| Backup function | Yes |
| Power | |
| Power consumption (typical) | 350 W |
| Power consumption (sleep) | 1.97 W |
| AC input voltage | 100-240 V |
| Weight & dimensions | |
| Width | 293 mm |
| Depth | 230 mm |
| Height | 215.5 mm |
| Weight | 6.7 kg |
| Processor special features | |
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 22 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Small Business Advantage (SBA) version | 1.00 |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Trusted Execution Technology | No |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel© AES New Instructions (Intel© AES-NI) | Yes |
| Intel© Clear Video HD Technology (Intel© CVT HD) | Yes |
| Intel© Hyper Threading Technology (Intel© HT Technology) | Yes |
| Intel© InTruT 3D Technology | Yes |
| Intel© Quick Sync Video Technology | Yes |
| Intel© Turbo Boost Technology | No |
| Intel© Wireless Display (Intel© WiDi) | Yes |
| Maximum number of PCI Express lanes | 16 |
| Thermal Monitoring Technologies | Yes |
| Thermal solution specification | PCG 2013C |
| Memory channels supported by processor | Dual |
| Logistics data | |
| Harmonized System (HS) code | 84714100 |
| Other features | |
| Processor ARK ID | 77769 |
| Warranty | |
| Base Warranty | Non Non |
