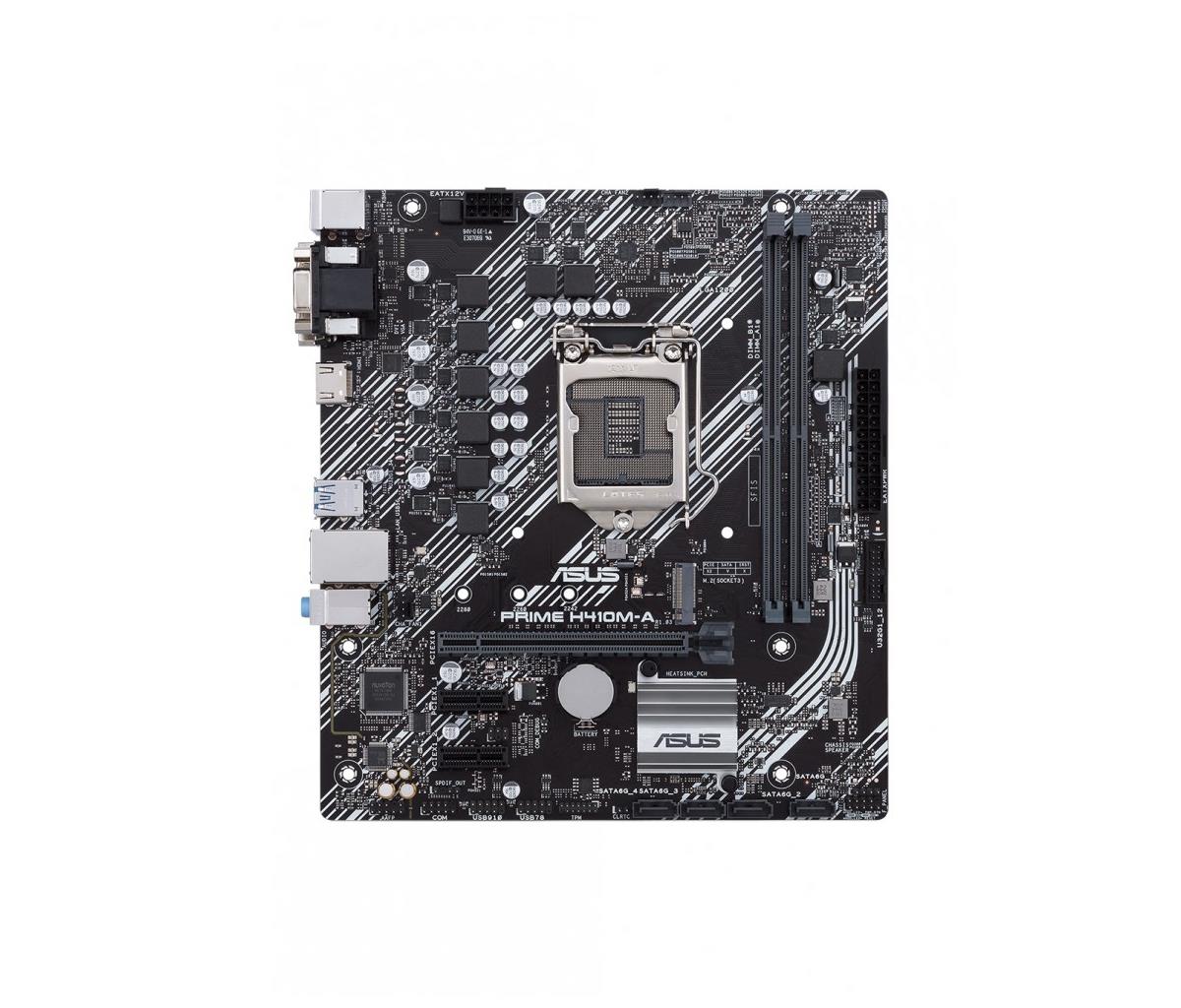

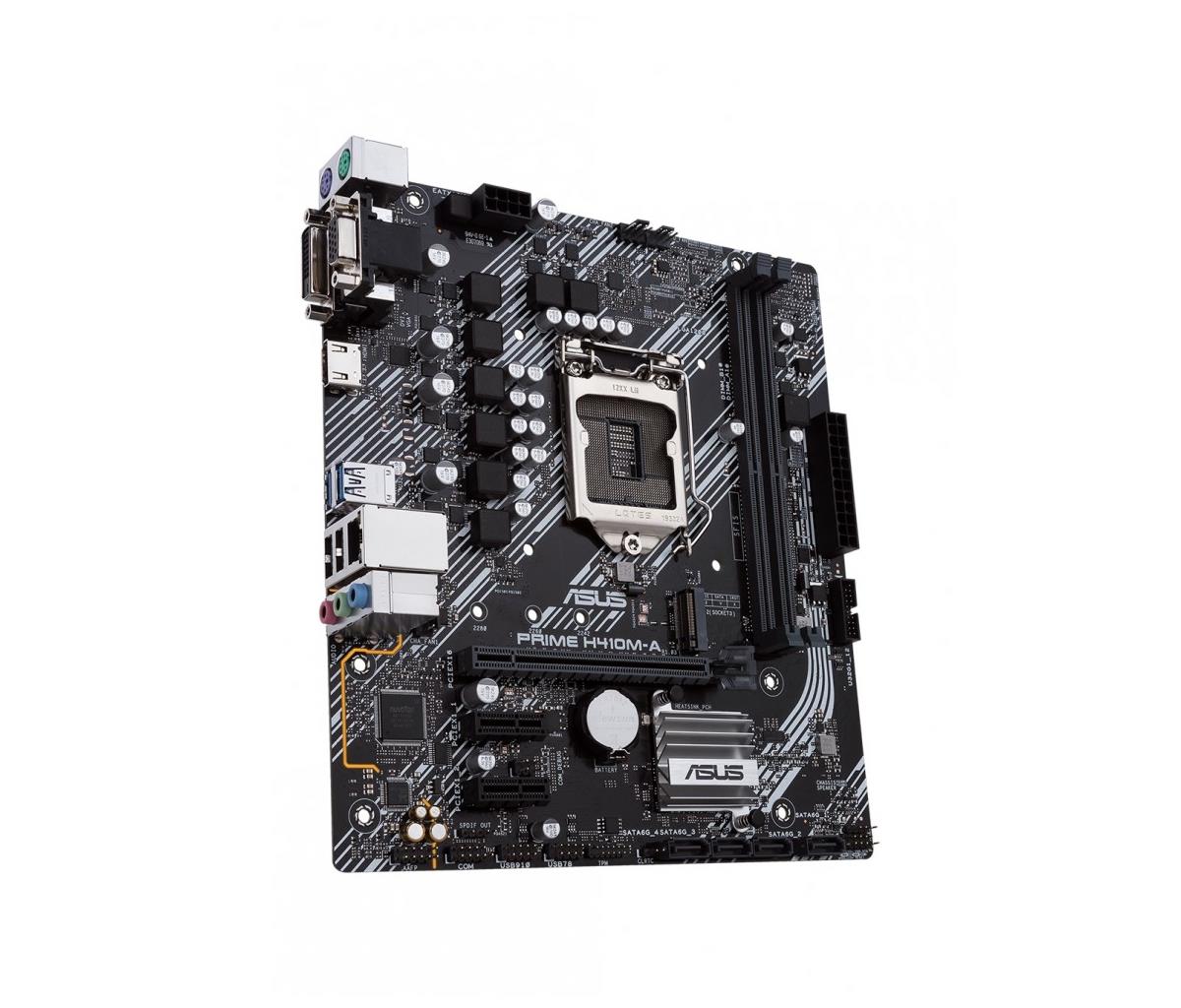

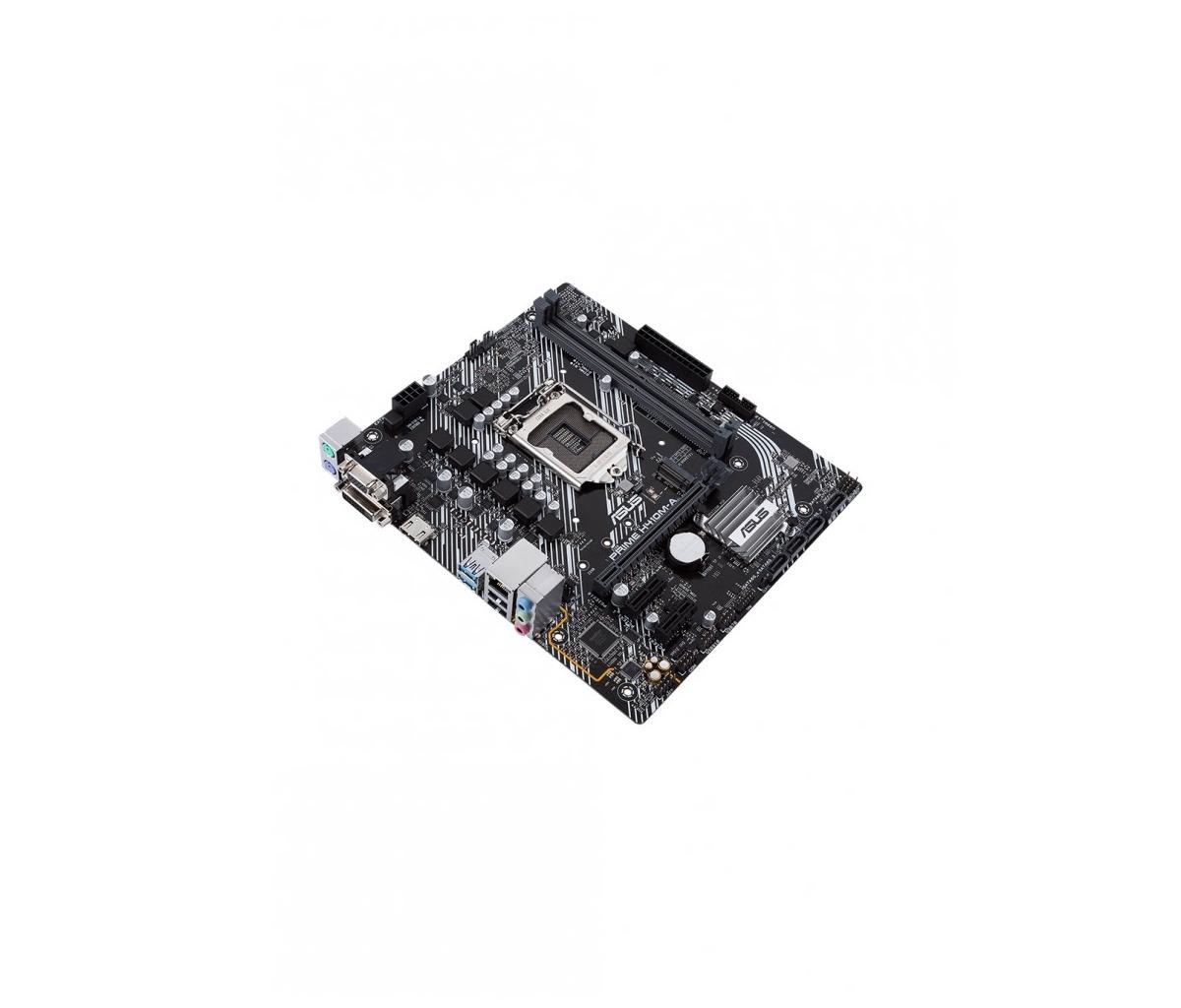

Motherboard PRIME H410M-A/CSM microATX +2GLN+U3.2 SATA6+4xDDR4
ITCurry #: 8881T394 | Article #: 90MB13G0-M0EAYC-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Prime
ASUS Prime series is expertly engineered to unleash the full potential of 10th Gen Intel® Core™ processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H410 series motherboards provide daily users and DIY PC builders a range of performance tuning options via included software and hardware.
Tune It Your Way
Comprehensive controls form the foundation of the ASUS Prime series. The Prime H410 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity.
Cool to the Core
Prime H410 series is engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Build on a Solid Foundation
Prime H410 series is built to handle the additional cores and increased bandwidth of 10th Generation Intel® Core™ processors. A H410 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
ASUS OptiMem
Revisions to the motherboard's trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.
Little Things Make a Big Difference
Prime H410 series add the nuanced details that improve every experience, exclusive codecs that provide pristine audio quality let you customize your system to create a uniquely personal look.
Outstanding Audio
Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you've ever experienced.
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1200 (Socket H5) |
| Compatible processor series | Intel© Celeron©, Intel Pentium G |
| Supported processor sockets | LGA 1200 (Socket H5) |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC ?ompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,2933 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
| Supported storage drive interfaces | M.2, SATA |
| Number of storage drives supported | 5 |
| Graphics | |
| On-board graphics card | Yes |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Number of COM connectors | 1 |
| TPM connector | Yes |
| 12V power connector | Yes |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4b |
| DVI-D ports quantity | 1 |
| Headphone outputs | 3 |
| Network | |
| Ethernet LAN | Yes |
| LAN controller | Realtek RTL8111H |
| Features | |
| Motherboard chipset | Intel H410 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 10 x64 |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Clear CMOS jumper | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
| Width | 226 mm |
| Depth | 203 mm |
| Height | 58 mm |
| Packaging content | |
| Cables included | SATA |
| Drivers included | Yes |
| Other features | |
| Weight | 815 g |
| Warranty | |
| Base Warranty | Non Non |
