Motherboard PRIME H510M-K / LGA1200 H510 DDR4 64GB mATX
ITCurry #: 8881V902 | Article #: 90MB17N0-M0EAY0-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 11th and 10th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME H510M-K provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
Tune It Your Way
Comprehensive controls form the foundation of the ASUS Prime series. The Prime H510 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
Search Function
Quickly and easily find the option or setting you need.
ASUS User Profile
Port configuration settings between different BIOS versions or share them with friends.
Cool to the Core
Prime H510 series is engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Cooler by Design
Prime H510 series features comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS.
Build on a Solid Foundation
Prime H510 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel® Core™ processors. ASUS H510 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
M.2 (up to 32 Gbps)
M.2 slot supports data-transfer speeds of up to 32 Gbps via x4 PCI Express® 3.0 bandwidth, enabling quicker boot-up and app load times with OS or application drives.
PCIe 4.0
ASUS H510 motherboards are designed specifically for 11th Generation Intel® Core™ CPUs and offer PCIe 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.
Small Details Make a Big Difference
Prime H510 series adds the nuanced details that improve every experience, exclusive codecs that provide pristine audio quality let you customize your system to create a uniquely personal look.
Outstanding Audio
Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you've ever experienced.
Audio Shielding
Separates analog/digital signal domains, significantly reducing multi-lateral interference.
Separate Layer for Left and Right Tracks
Ensures minimal crosstalk between audio paths.
Armoury Crate
Armoury Crate is a new software utility designed to give you centralized control of supported products, from a single intuitive interface. Armoury Crate provides control of settings for ASUS products, including keyboard and mouse preferences. This software even features dedicated product registration and highlight to help you stay in touch with the ASUS community.
SafeSlot Core
SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, Safeslot Core provides 1.6X-stronger retention and 1.3X-greater shearing resistance than standard expansion slots.
Overvoltage Protection
World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
DRAM Overcurrent Protection
Short-circuit damage prevention
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.

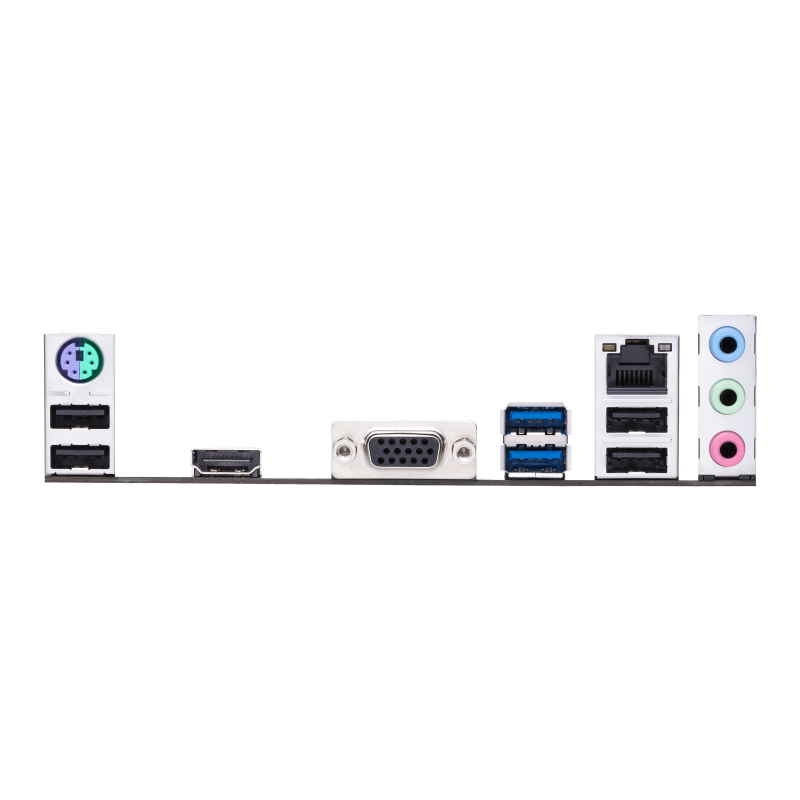

Stainless-Steel Back I/O
3X corrosion-resistance for greater durability
Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.
LANGuard
Pumped-up throughput 2.5X higher surge tolerance
ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput and ensure a more reliable connection.
1000+
Compatible devices and components
The Prime H510 series provides superior compatibility with thousands of components and our Qualified Vendor List (QVL) identifies memory compatibility, giving you more choices for worry-free PC-building experiences.
8000+
Validation hours
Every ASUS motherboards is subjected to more than 8,000 hours of stringent tests, including burn-in, environmental, compatibility, software and safety tests to confirm their durability. ASUS reliability surpasses industry standards, ensuring that every component is designed to function flawlessly in any environment.
Temperature and humidity tests
Ensures components withstand extreme conditions.
Thermal measurement tests
Ensures that the system remains cool and stable under the heaviest loads.
Insertion tests
Every port and connector is put through repeated installation cycles.
Aging tests
Up to 48-hour aging test ensures reliability.
Power-consumption tests
Checked for world-class energy efficiency.
Temperature and DC margin tests
Ensures that the motherboard is capable of coping with voltages fluctuations caused by varying temperatures.
Thermal-shock tests
Ensures ability to survive temperature changes during transportation.
Non-operation shock tests
Built to withstand jolts that may occur during shipping.
Burn-in tests
Every component is checked to ensure flawless operation.
Installation tests
Connector placement is double-checked to ensure hassle-free installation.
Drop tests
Drop tests from various heights ensure durability.
Salt and spray tests
Tested for I/O reliability, prolonged lifespan and rust-resistance.
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1200 (Socket H5) |
| Compatible processor series | Intel© Celeron©, Intel© CoreT i3, Intel© CoreT i5, Intel© CoreT i7, Intel© CoreT i9, Intel Pentium G |
| Supported processor sockets | LGA 1200 (Socket H5) |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Non-ECC | Y |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3200 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Y |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 3.0, SATA III |
| Number of storage drives supported | 5 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 3840 x 2160 pixels |
| Internal I/O | |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Y |
| Front panel audio connector | Y |
| ATX Power connector (24-pin) | Y |
| CPU fan connector | Y |
| Number of chassis fan connectors | 1 |
| EPS power connector (8-pin) | Y |
| Number of COM connectors | 1 |
| TPM connector | Y |
| 12V power connector | Y |
| RGB LED pin header | Y |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4/2.0 |
| Headphone outputs | 3 |
| Microphone in | Y |
| USB connector type | USB Type-A |
| Network | |
| Ethernet LAN | Y |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel© I219-V |
| Wake-on-LAN ready | Y |
| Wi-Fi | N |
| Features | |
| Motherboard chipset | Intel H510 |
| Audio chip | Realtek ALC887 / Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 10 x64 |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Clear CMOS jumper | Y |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
| Width | 226 mm |
| Depth | 203 mm |
| Height | 51 mm |

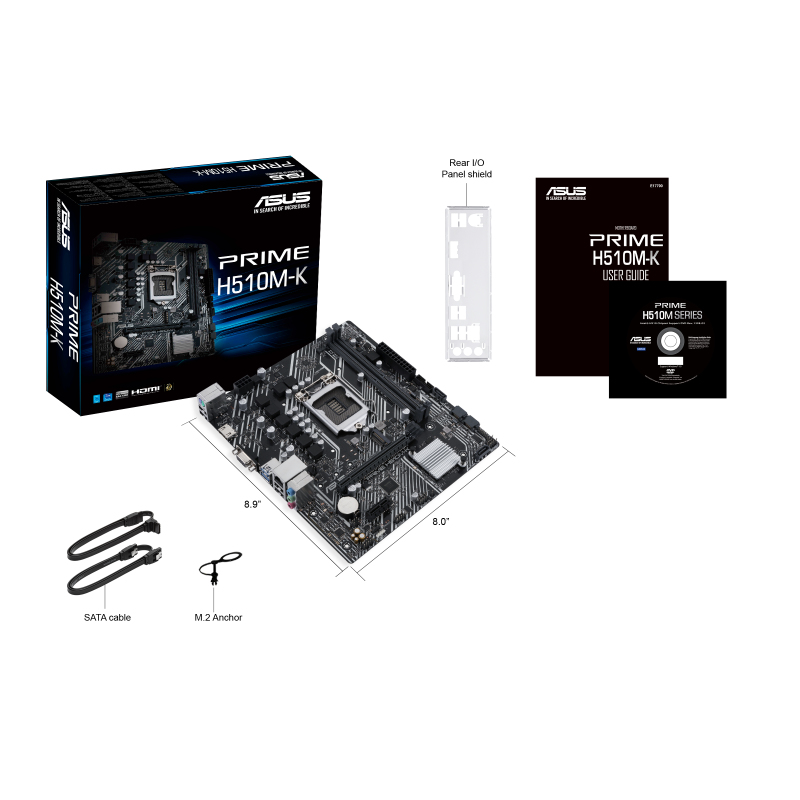

| Packaging content | |
| Cables included | SATA |
| Drivers included | Y |
| Other features | |
| Weight | 803 g |
| Warranty | |
| Base Warranty | Non Non |
