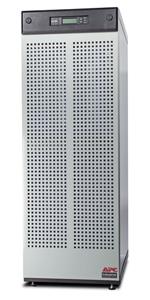

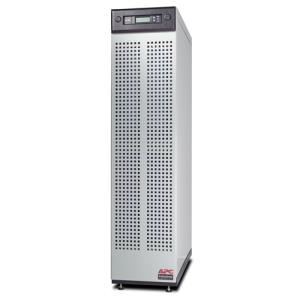

Smart-UPS VT 40kVA 400V w/4 Batt. Modules, Start-Up 5X8, Internal Maintenance Bypass
ITCurry #: 0280D673 | Article #: SUVT40KH4B4S-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Over 10 million installed - now available in three-phase
Smart-UPS VT offers centralized three-phase power protection with the reliability of the award winning Smart-UPS family. Ideal for small data centers, large retail stores, regional offices, and laboratory equipment, the Smart-UPS VT features dual-mains input, automatic bypass, and scalable runtime with hot-swappable batteries for increased availability. Low cost of ownership is achieved through best-in-class efficiency and a reduction in rating of electrical infrastructure - wires, transformers, and generators. APC's Network Management Card with temperature monitoring provides remote monitoring and management through Web/SNMP. Serviceability is greatly enhanced with its user-replaceable batteries and manageable extended run frames. The Smart-UPS VT is the easiest UPS in its class to deploy, manage and maintain.
| Features | |
| Output power capacity | 40 kVA |
| Output power | 32000 W |
| Emergency Power Off (EPO) | Yes |
| Noise level | 58 dB |
| Audible alarm(s) | Yes |
| Battery | |
| Typical backup time at full load | 6.9 min |
| Typical backup time at half load | 21.6 min |
| Design | |
| Product colour | Black |
| Compatibility | CE, EN 50091-2, EN/IEC 62040-3, IEC 61000-3-2, IEC 61000-3-3, ISO 14001, ISO 9001, VFI-SS-112 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -50 - 40 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 999.9 m |
| Weight & dimensions | |
| Weight | 629.1 kg |
| Package weight | 660 kg |
| Warranty | |
| Base Warranty | Non Non |
| Other features | |
| I/O ports | (1) Hard Wire 4-wire (3PH + G) (1) Hard Wire 5-wire (3PH + N + G) (1) Screw Terminals Hard Wire 5-wire (3PH + N + G) |
| Battery type | VRLA |
| Interface | DB-9 RS-232, Smart-Slot |
| Output connections | (1) Hard Wire 4-wire (3PH + G) (1) Hard Wire 5-wire (3PH + N + G) (1) Screw Terminals |
| Input connection type | Hard Wire 5-wire (3PH + N + G) |
| Dimensions (WxDxH) | 559 x 813 x 1499 mm |
| Nominal output voltage | 230 V |
| Output voltage note | 380: 400, 415 |
| Nominal input voltage | 400 V |
| Package dimensions (WxDxH) | 650 x 1062 x 1643 mm |
