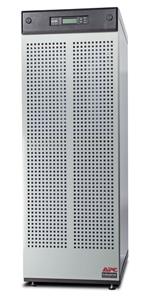

AIS 3100 20kVA 230V Output 3:1 w/2 Batt Modules, Start-Up 5X8, Internal Maintenance Bypass
ITCurry #: 0280L739 | Article #: ISVT20K3I2B2S
Related products
Product Information
Availability
Dual mains input
Increases availability by allowing the UPS to be connected to two separate power sources.
Battery modules connected in parallel
Delivers higher availability through redundant batteries.
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS overload condition or fault.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
Serviceability
Manual maintenance bypass
Reduces installation costs by eliminating the need for an external mechanical bypass.
Front-access servicing
Simplifies installation and maintenance while minimizing space requirements.
Battery replacement without tools
Allows quick, easy battery replacement.
User-replaceable air filters
Enables quick and simple replacement of air filters.
| Features | |
| Output power capacity | 20 kVA |
| Output power | 16000 W |
| Input frequency | 40/70 Hz |
| Emergency Power Off (EPO) | Yes |
| Audible alarm(s) | Yes |
| Battery | |
| Battery recharge time | 5 h |
| Hot-swap battery | Yes |
| Design | |
| Product colour | Grey |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -50 - 40 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 999.9 m |
| Non-operating altitude | 0 - 15000 m |
| Certificates | |
| Certification | CE,EN 50091-2,EN/IEC 62040-3,EN/IEC 62040-1-1,IEC 61000-3-2,IEC 61000-3-3,ISO 14001,ISO 9001,VFI-SS-111 |
| Weight & dimensions | |
| Weight | 402 kg |
| Packaging data | |
| Package weight | 428.2 kg |
| Other features | |
| Battery type | VRLA |
| Output connections | 1x Hard Wire 3-wire (H N + G) 1x Screw Terminals |
| Input connection type | Hard Wire 5-wire (3PH + N + G) |
| Dimensions (WxDxH) | 352 x 854 x 1500 mm |
| Nominal output voltage | 230 V |
| Output voltage note | Configurable for 220: 230 or 240 nominal output voltage |
| Nominal input voltage | 400 V |
| Package dimensions (WxDxH) | 650 x 1062 x 1643 mm |
| Warranty | |
| Base Warranty | Non Non |
