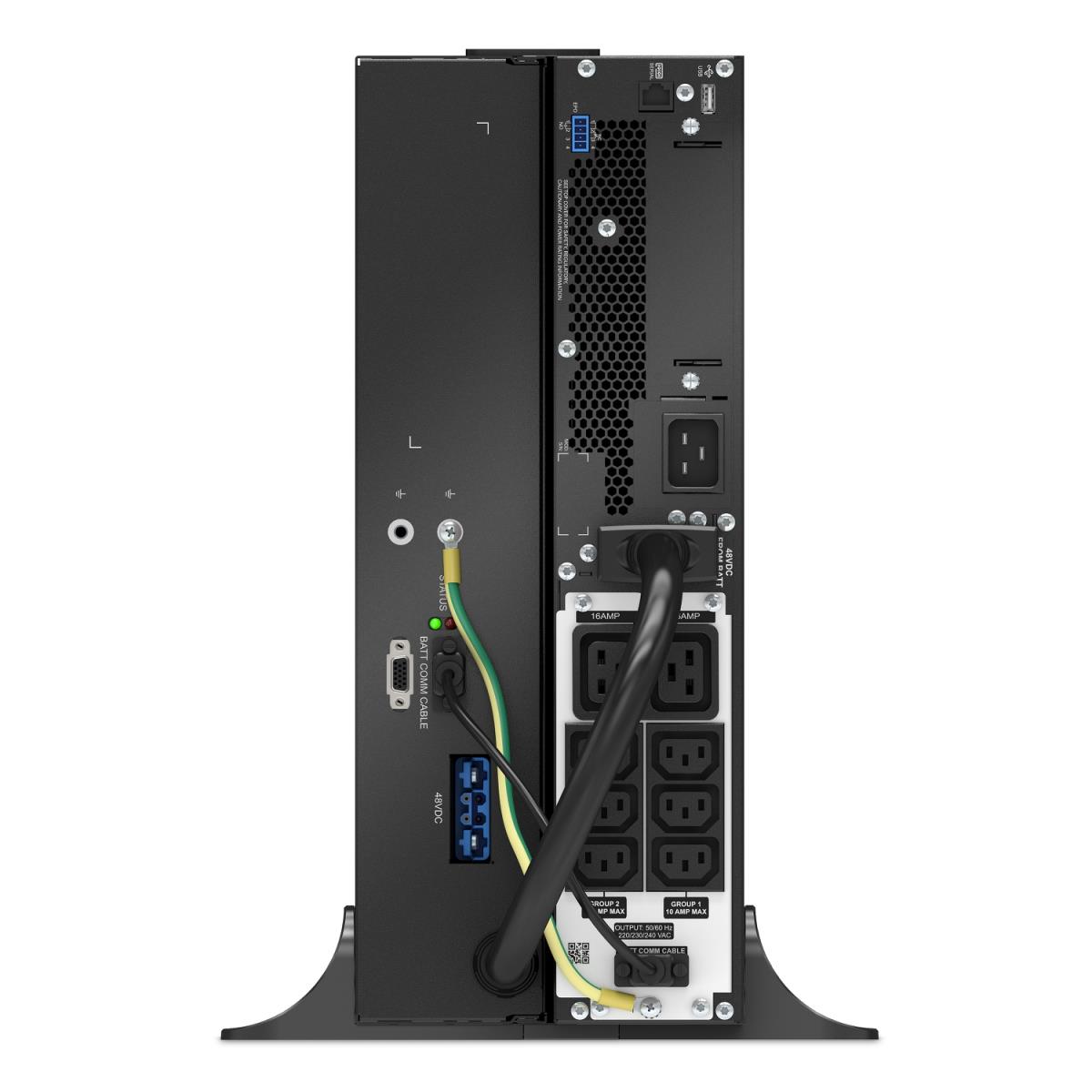

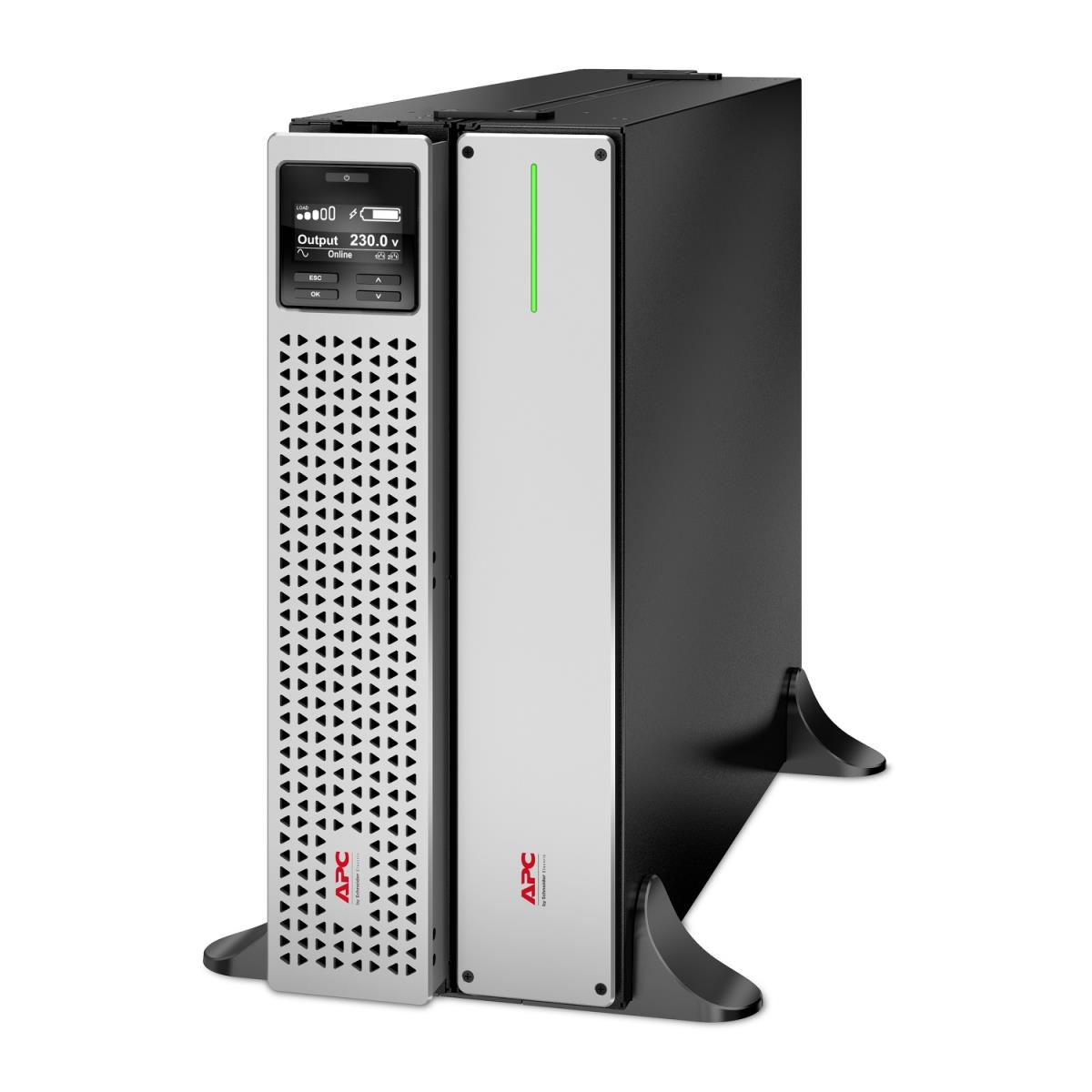

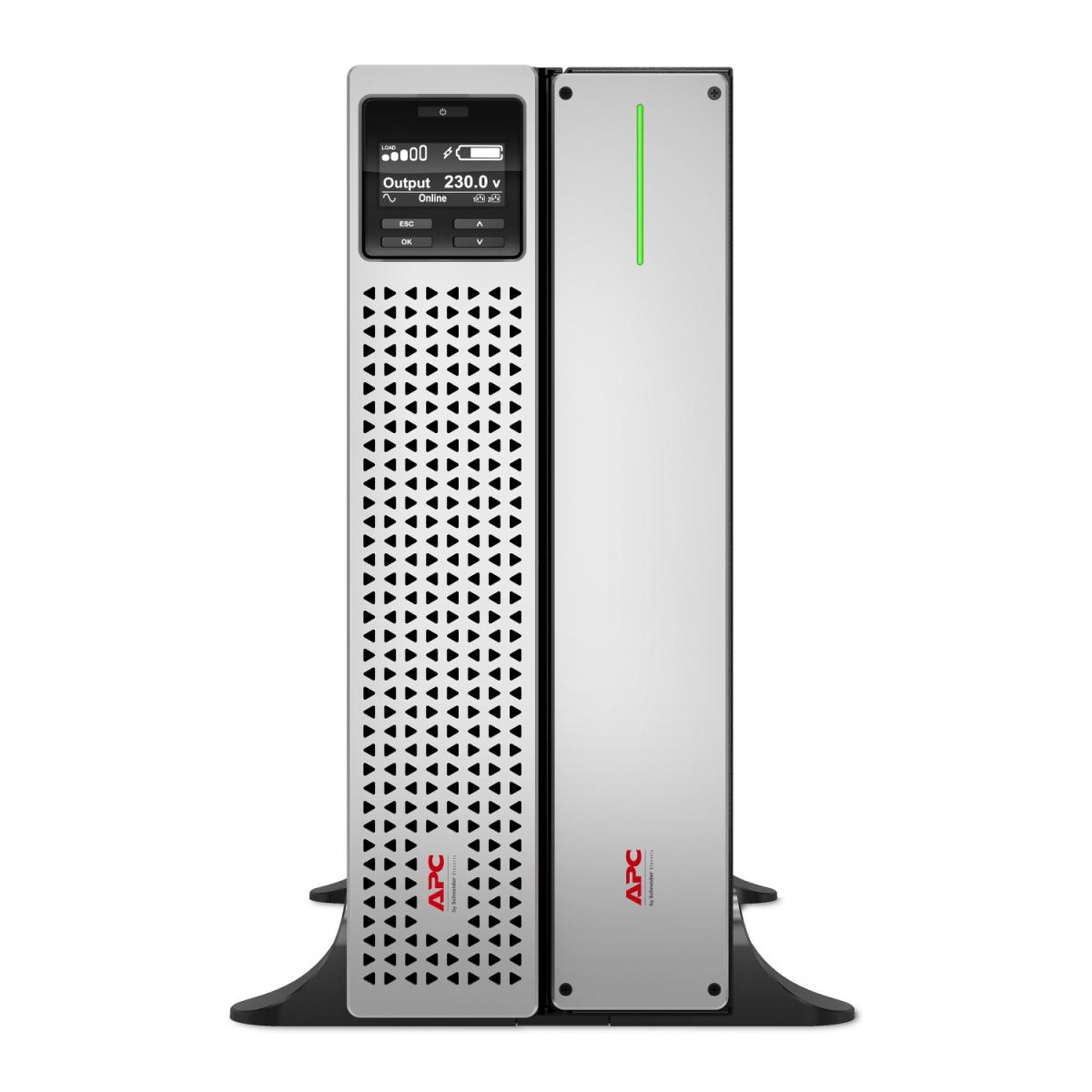

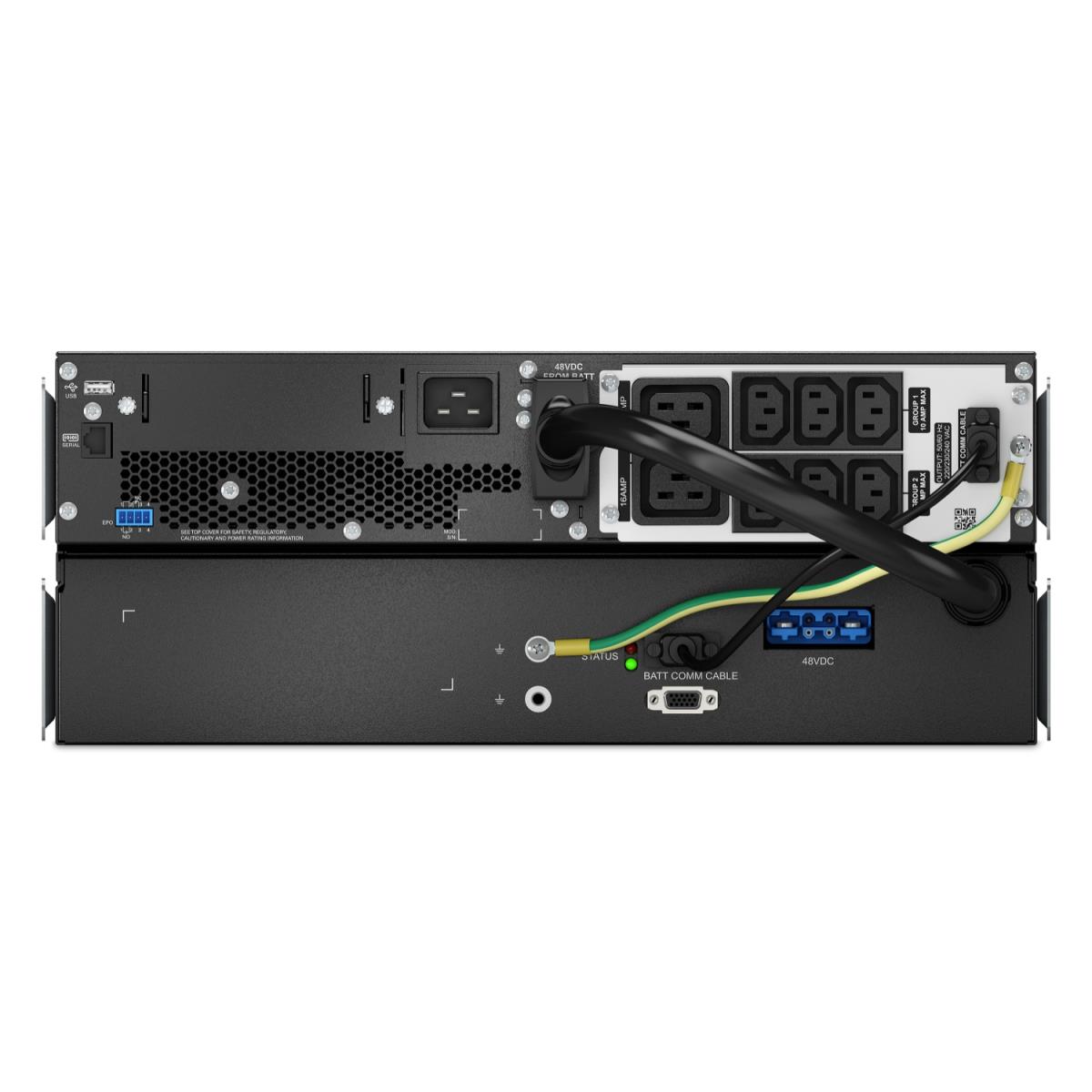

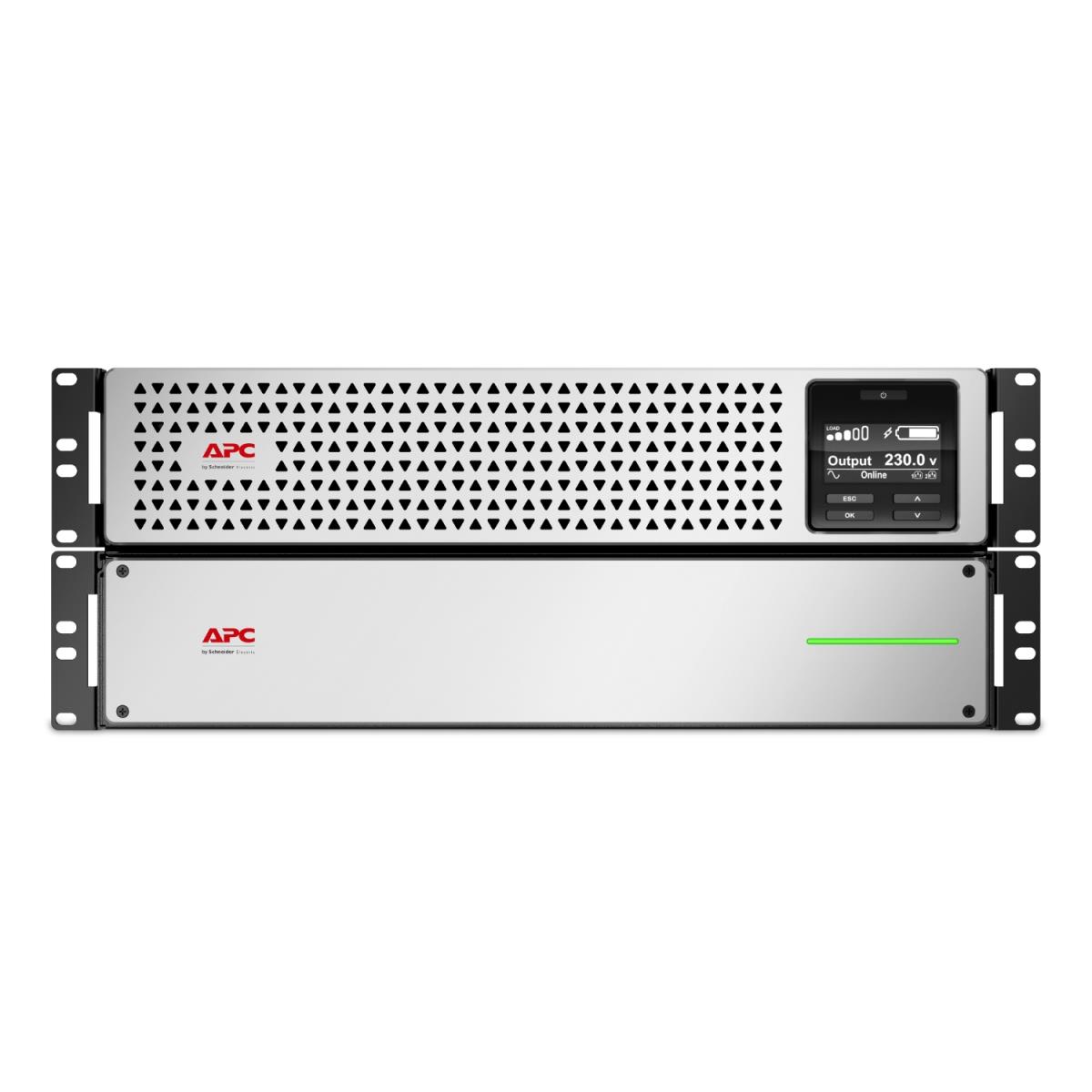

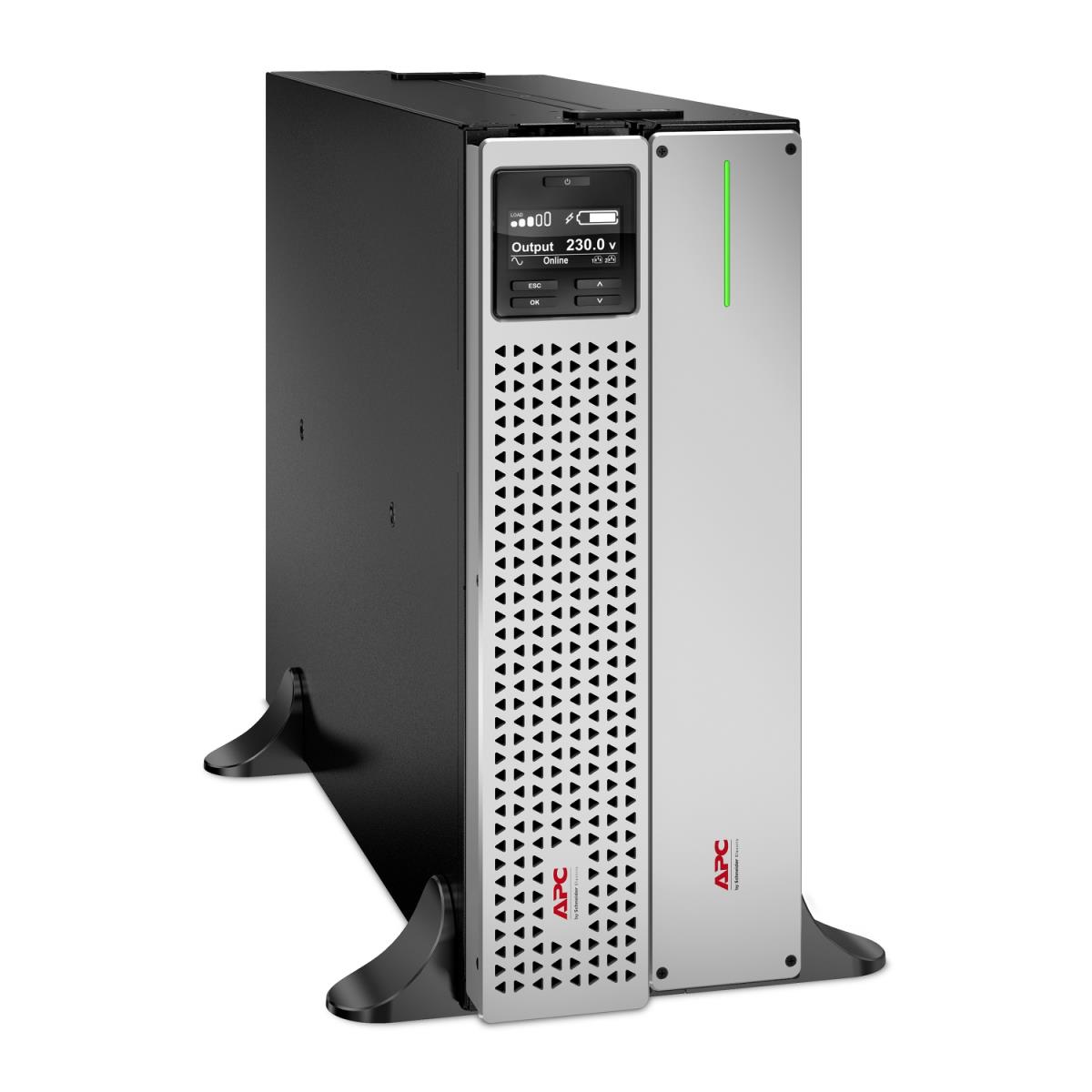

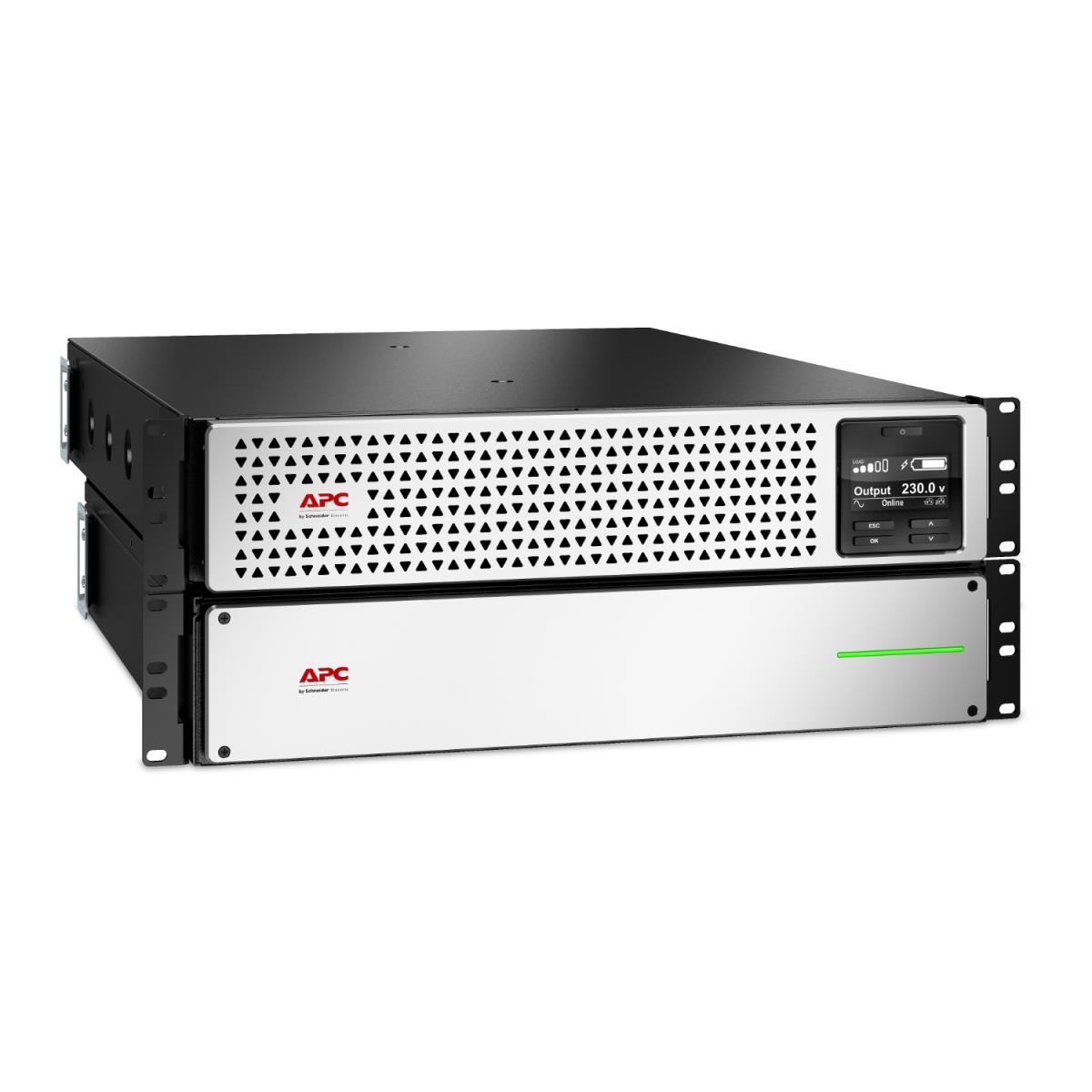

Smart-UPS SRT Lithium Ion 2200VA RM 4U 230V Long Runtime

ITCurry #: 0280K936 | Article #: SRTL2200RM4UXLI
Price:
3006.48 Ex VAT
Shipping:
FREE Shipping.
Out of Stock. Contact Us!
Email us for assistance

Related products

slide 7 to 11 of 14

Product Information

At 1980W/2200VA this Smart-UPS On-Line Lithium-Ion battery backup system provides high-density, double conversion on-line pure sine wave power. In addition to cleaner, quieter power protection, this UPS is only around half size and weight of comparable UPS systems with similar runtime and has flexible rack and tower installation options. A new extended runtime battery pack provides longer runtime in a small 2U footprint while tripling the life expectancy of the UPS. SRTL 1-3kVA UPSs with this rong runtime battery pack is perfect for applications critical for runtime.

Features
UPS topology Double-conversion (Online)
Output power capacity 2.2 kVA
Output power 1980 W
Waveform Sine
Input operation voltage (max) 230 V
Input frequency 40 - 70 Hz
Output frequency 50/60 Hz
Surge energy rating 432 J
Crest factor 3:1
Output voltage Total Harmonic Distortion (THD) 2%
Audible alarm(s) Yes
Ports & interfaces
AC outlet types C13 coupler, C19 coupler
AC outlets quantity 8 AC outlet(s)
Battery
Battery technology Lithium-Ion (Li-Ion)
Battery voltage 48 V
Battery life (max) 10 year(s)
Design
Form factor Rackmount/Tower
Rack capacity 4U
Cable length 1.83 m
Product colour Black, Silver
International Protection (IP) code IP20
Operational conditions
Operating temperature (T-T) 0 - 40 øC
Storage temperature (T-T) -20 - 50 øC
Operating relative humidity (H-H) 0 - 95%
Storage relative humidity (H-H) 0 - 95%
Operating altitude 0 - 3048 m
Technical details
Sustainability certificates Green Premium
Weight & dimensions
Width 432 mm
Depth 639 mm
Height 171 mm
Weight 44.5 kg
Packaging data
Rack mount kit Yes
Warranty
Base Warranty Non Non
