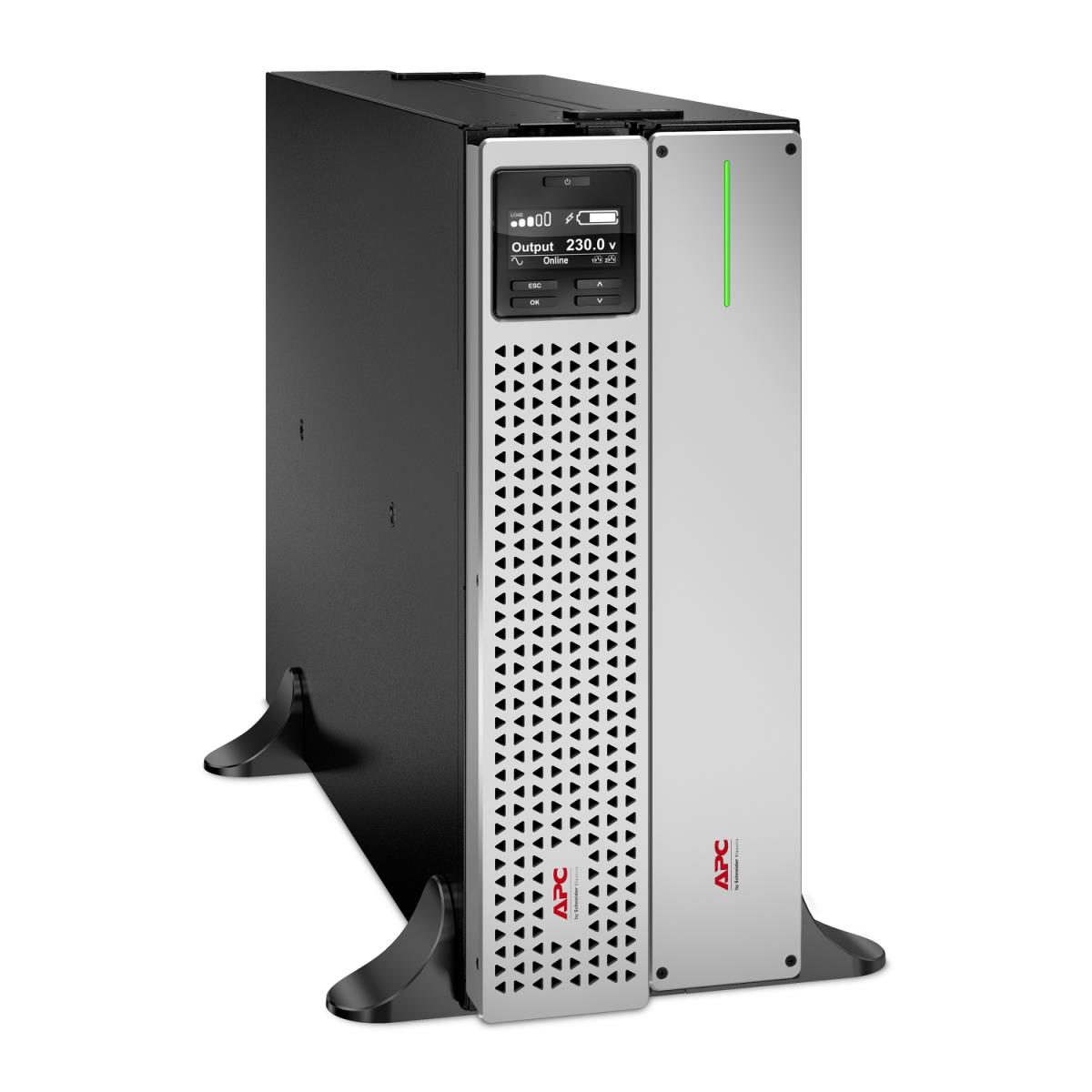

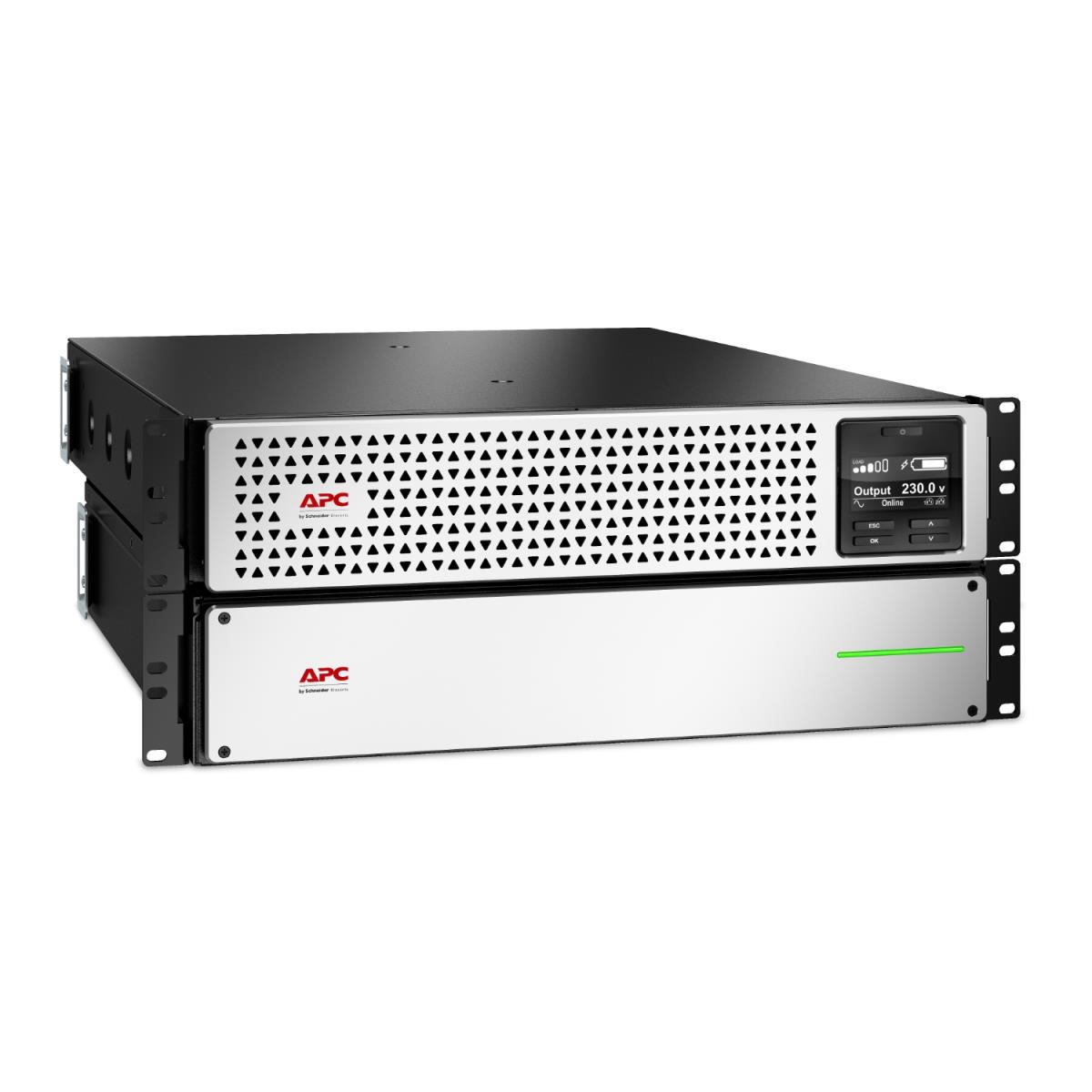

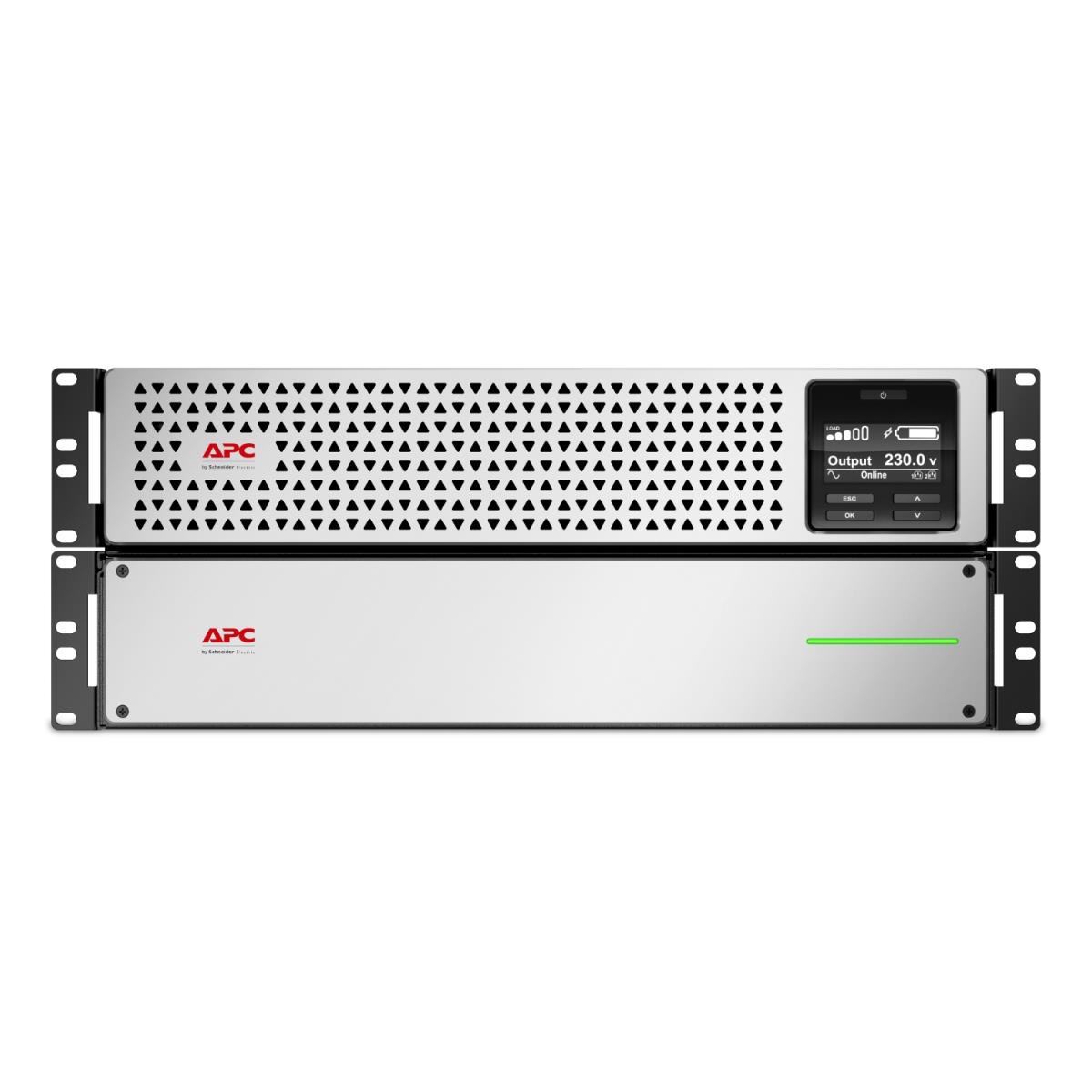

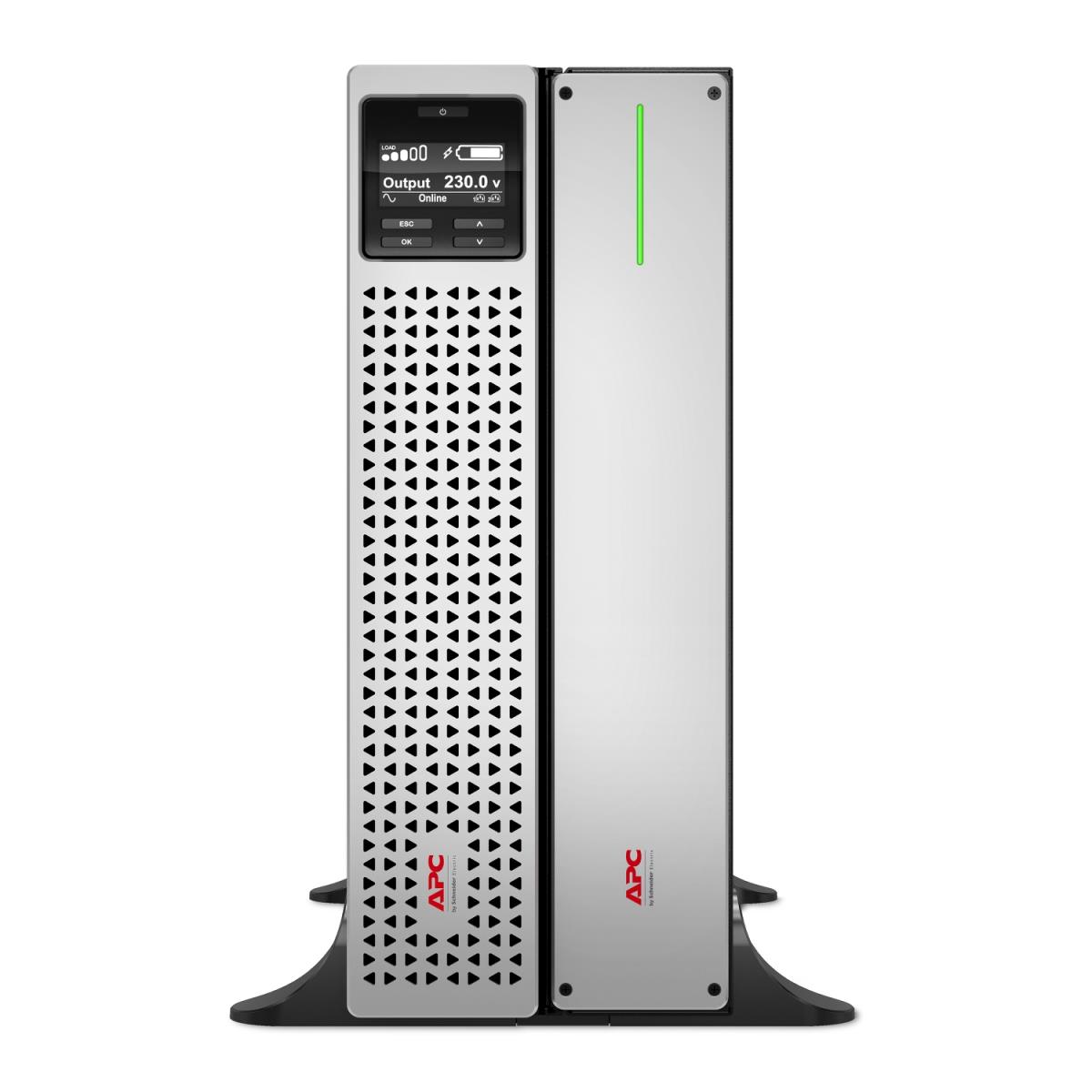

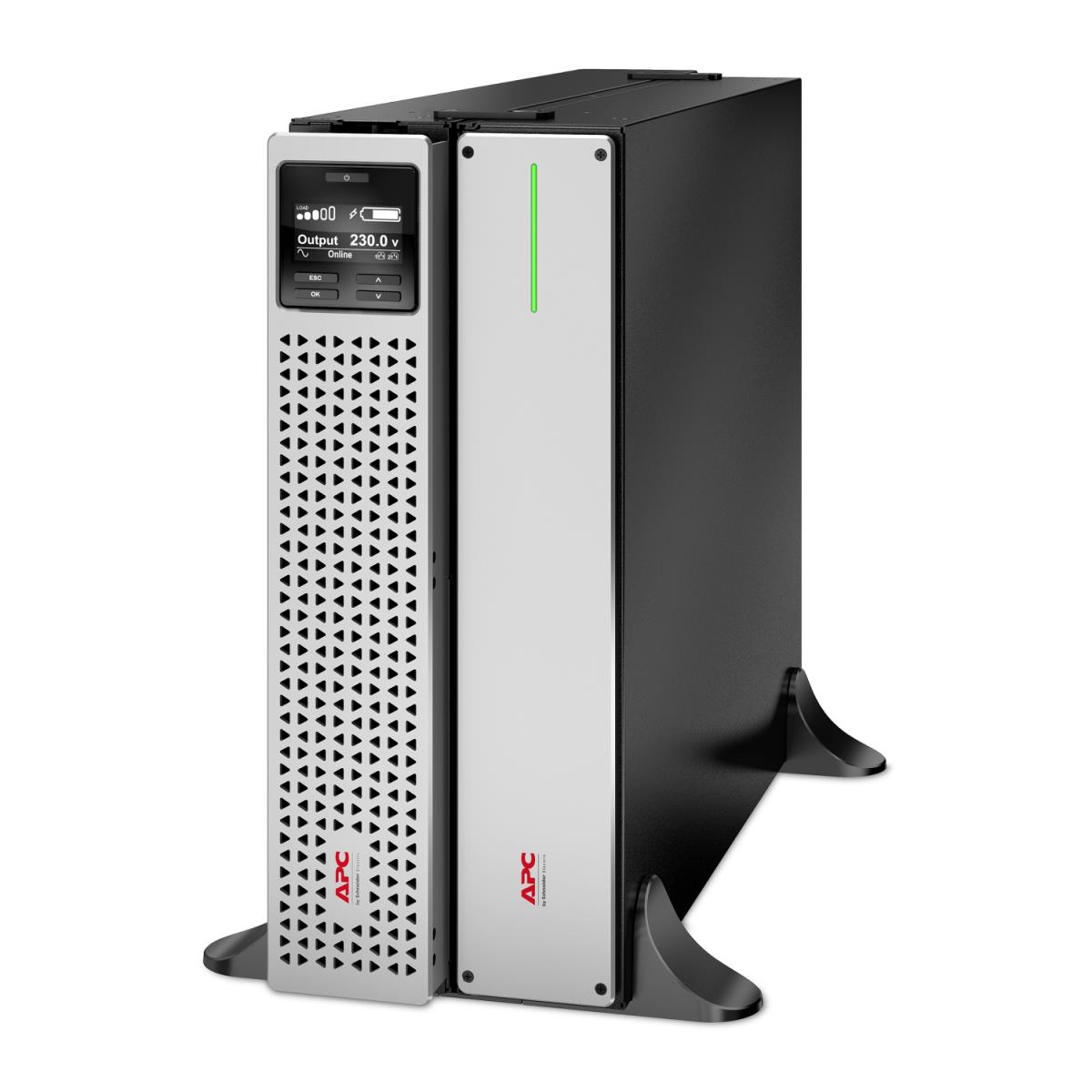

Smart-UPS SRT Lithium Ion 1500VA RM 4U 230V Long Runtime with Network Card

ITCurry #: 0280K942 | Article #: SRTL1500RM4UXLI-NC
Price:
3652.61 Ex VAT
Shipping:
FREE Shipping.
Out of Stock. Contact Us!
Email us for assistance

Related products

slide 7 to 11 of 14

Product Information

At 1350W/1500VA this Smart-UPS On-Line Lithium-Ion battery backup system provides high-density, double conversion on-line pure sine wave power, preinstalled Netwrok Management Card. In addition to cleaner, quieter power protection, this UPS is only around half size and weight of comparable UPS systems with similar runtime and has flexible rack and tower installation options. A new extended runtime battery pack provides longer runtime in a small 2U footprint while tripling the life expectancy of the UPS. SRTL 1-3kVA UPSs with this rong runtime battery pack is perfect for applications critical for runtime.

Features
UPS topology Double-conversion (Online)
Output power capacity 1.5 kVA
Output power 1350 W
Waveform Sine
Input operation voltage (min) 160 V
Input operation voltage (max) 275 V
Input frequency 40/70 Hz
Output operation voltage (min) 220 V
Output operation voltage (max) 230 V
Output frequency 50/60 Hz
Surge energy rating 340 J
Crest factor 3:1
Emergency Power Off (EPO) Yes
Noise level 50 dB
Audible alarm(s) Yes
Power source type AC
Detachable power cord Yes

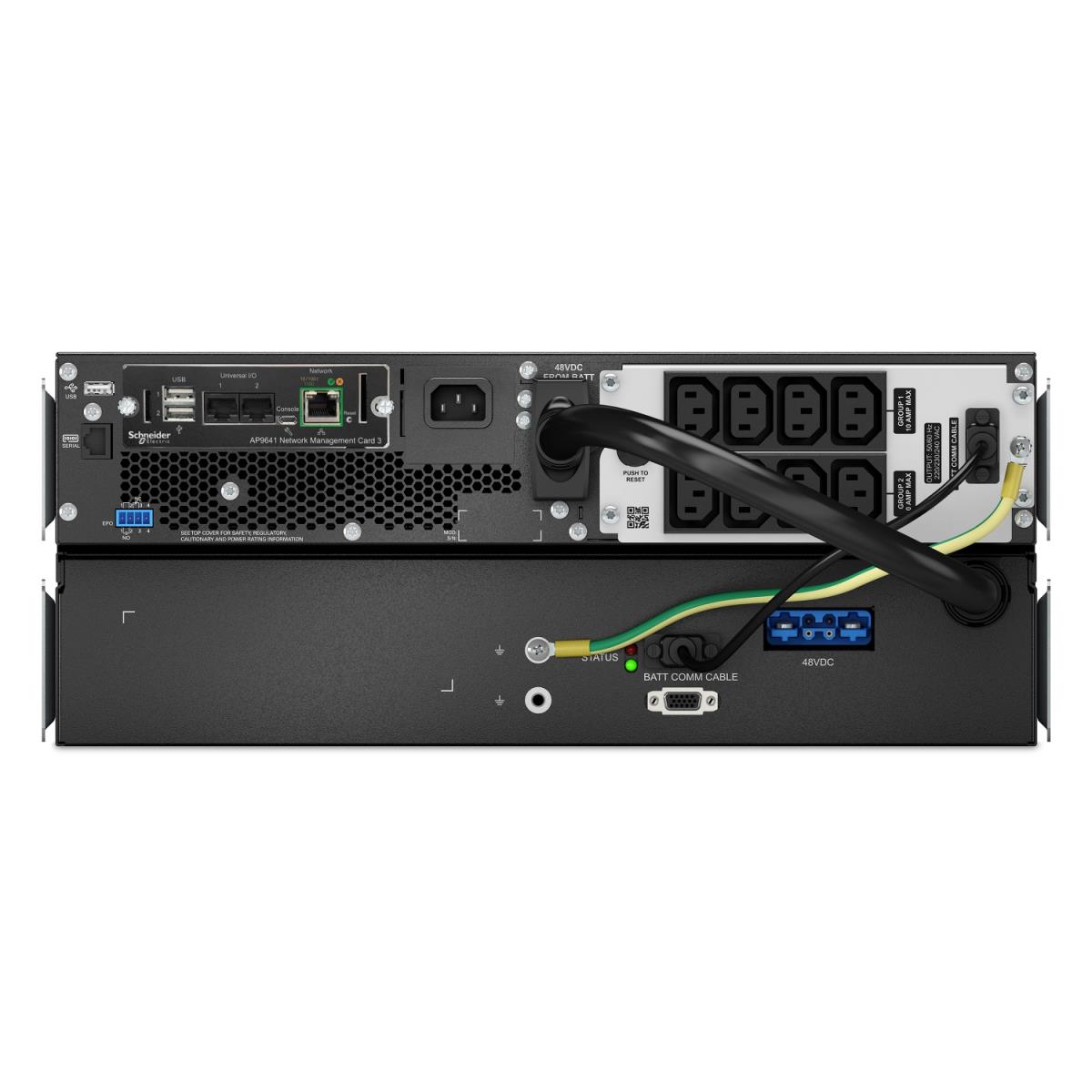

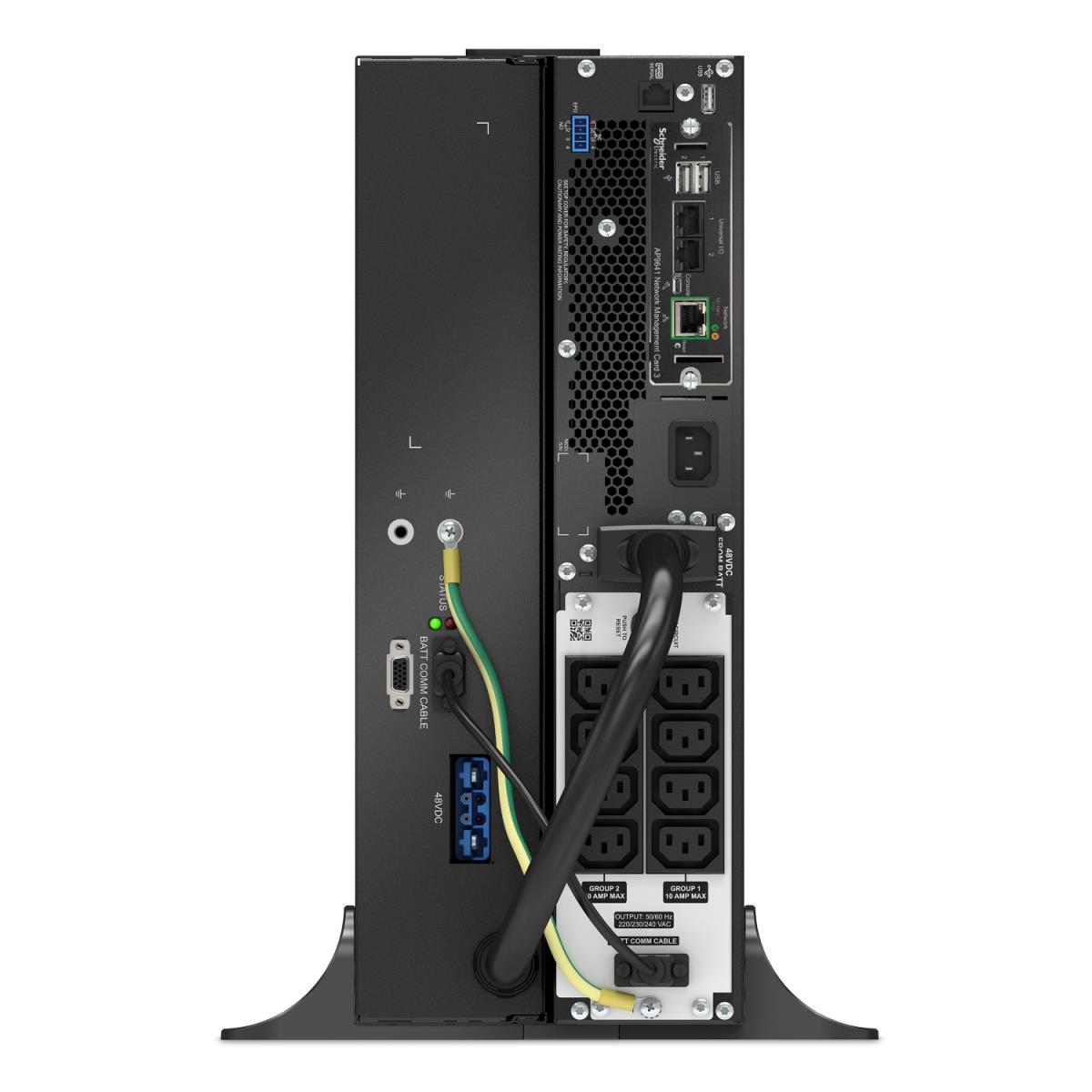

Ports & interfaces
AC outlet types C13 coupler
Power plug C14 coupler
AC outlets quantity 8 AC outlet(s)
USB 2.0 ports quantity 2
Ethernet LAN (RJ-45) ports 1
Battery
Battery technology Lithium-Ion (Li-Ion)
Battery capacity 2400 Ah
Battery voltage 48 V

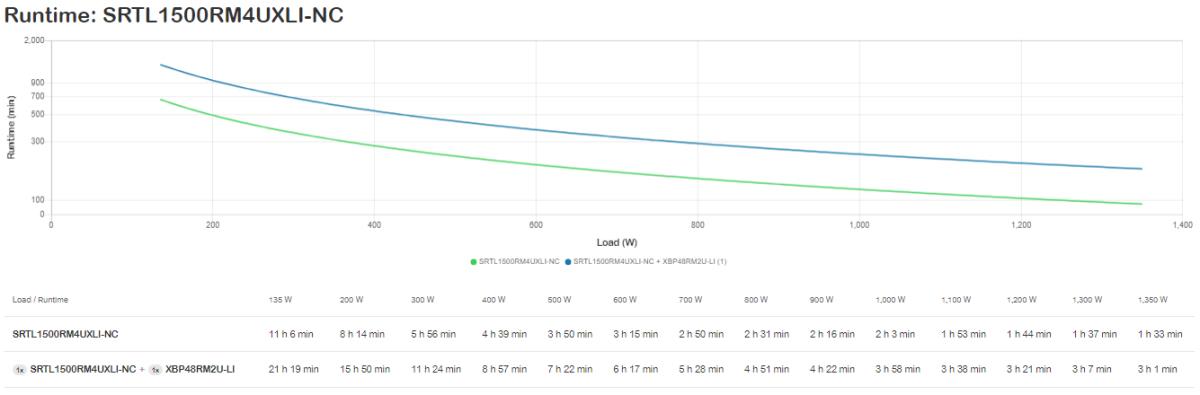

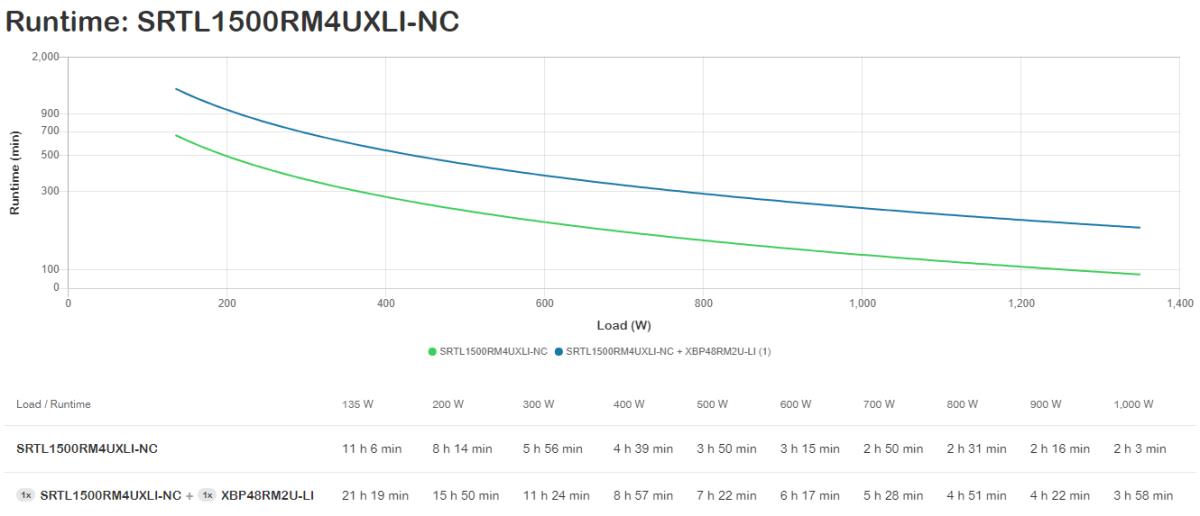

Typical backup time at full load 93 min
Typical backup time at half load 177 min
Battery life (max) 10 year(s)
Design
Form factor Rackmount/Tower
Rack capacity 4U
Cable length 1.83 m
Modular Yes
Product colour Black, Silver
Control type Buttons
Display type LCD
International Protection (IP) code IP20
Certification RoHS, CE
Operational conditions
Operating temperature (T-T) 0 - 40 øC
Storage temperature (T-T) -15 - 45 øC
Operating relative humidity (H-H) 0 - 95%
Storage relative humidity (H-H) 0 - 95%
Operating altitude 0 - 3048 m
Non-operating altitude 0 - 15240 m
Technical details
Sustainability certificates Green Premium
Compliance certificates CE, RoHS
Weight & dimensions
Width 432 mm
Depth 590 mm
Height 171 mm
Weight 40.7 kg
Packaging data
Rack mount kit Yes
Warranty
Base Warranty Non Non
