Smart-UPS 2200VA 1980 Watts LCD RM 2U 230V with Network Card
ITCurry #: 0280F689 | Article #: SMT2200RMI2UNC-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

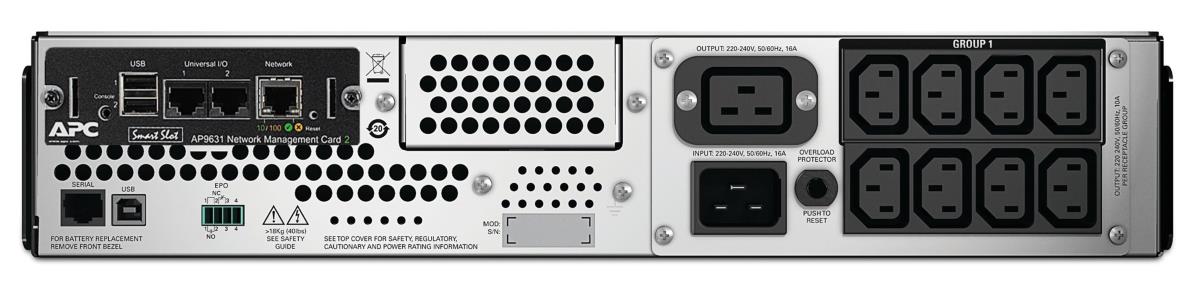

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 2200VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C20 input, BS1363A British and Schuko CEE 7/EU1-16P input cables, 8x IEC 320 C13 and 1x IEC 320 C19 outlets, and 3x IEC jumper cables. It has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
| Features | |
| UPS topology | Line-Interactive |
| Output power capacity | 2.2 kVA |
| Output power | 1980 W |
| Waveform | Sine |
| Input operation voltage (min) | 151 V |
| Input operation voltage (max) | 302 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Surge energy rating | 375 J |
| Response time | 4 ms |
| Emergency Power Off (EPO) | O |
| Noise level | 55 dB |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| Web-based management | Yes |
| Audible alarm modes | Battery replacement |
| Auto-restart | Yes |
| Ports & interfaces | |
| AC outlet types | C20 coupler |
| Power plug | C20 coupler |
| AC outlets quantity | 9 AC outlet(s) |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 509 Ah |
| Battery recharge time | 5 h |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Cold start | Yes |
| Design | |
| Form factor | Rackmount |
| Rack capacity | 2U |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Yes |
| Certification | CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -15 - 45 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Sustainability certificates | Green Premium |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 480 mm |
| Depth | 683 mm |
| Height | 86 mm |
| Weight | 42.2 kg |
| Package width | 600 mm |
| Package depth | 980 mm |
| Package height | 254 mm |
| Package weight | 49.6 kg |
| Packaging data | |
| Rack mount kit | Yes |
| Cables included | Input power cable, USB cable |
| Quick installation guide | Yes |
| Resource CD | Yes |
| Logistics data | |
| Products per pallet | 8 pc(s) |
| Harmonized System (HS) code | 85078000 |
| Other features | |
| Output voltage | 230 V |
| Warranty | |
| Base Warranty | Non Non |
