It Power Distribution Module 3x1 Pole 3 Wire 32a 3xiec309 300cm/ 360cm/ 420cm
ITCurry #: 02806815 | Article #: PDM1332IEC-3P
slide 2 of 4
Price:
903.12
Ex VAT
Shipping:
FREE Shipping.
Out of Stock. Contact Us!
Related products
slide 6 to 10 of 15
Product Information

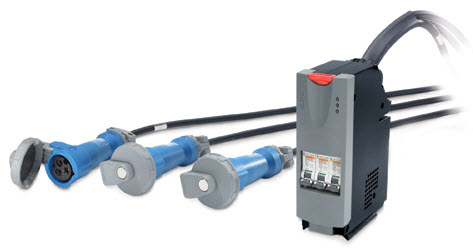

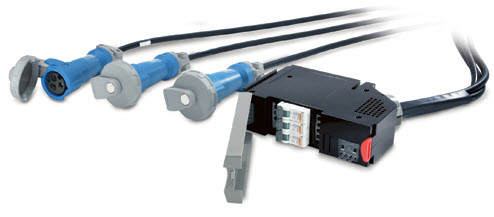

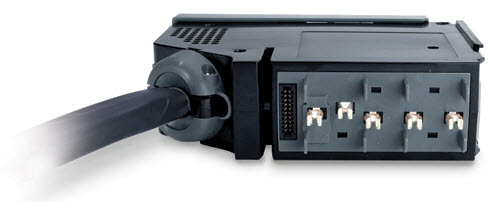

A touch-safe Power Distribution Module (including circuit breaker, power cord, power connection, and circuit monitoring) that eliminates the need for hot work or shutdowns during expansion of the power distribution system.
| Design | |
| Product colour | Black, Blue, Grey |
| Ports & interfaces | |
| Output connections | 3 x IEC 309 |
| Power | |
| Nominal input voltage | 400 V |
| Nominal output voltage | 230 V |
| Maximum input current per phase | 32 A |
| Maximum total current draw per phase | 32 A |
| Certificates | |
| Certification | CE, VDE |
| Weight & dimensions | |
| Width | 432 mm |
| Depth | 152 mm |
| Dimensions (WxDxH) | 432 x 152 x 152 mm |
| Height | 152 mm |
| Weight | 6.39 kg |
| Packaging data | |
| Package dimensions (WxDxH) | 432 x 152 x 152 mm |
| Package weight | 7.3 kg |
| Package width | 432 mm |
| Package depth | 152 mm |
| Package height | 152 mm |
It Power Distribution Module 3x1 Pole 3 Wire 32a 3xiec309 300cm/ 360cm/ 420cm
903.12
