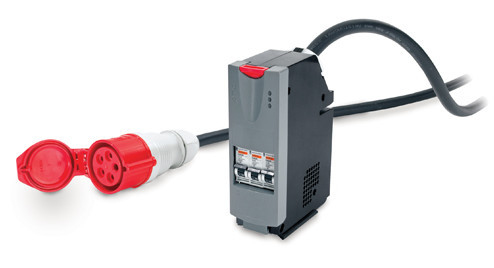

It Power Distribution Module 3 Pole 5 Wire 32a Iec309 380cm

ITCurry #: 02808470 | Article #: PDM3532IEC-380
Price:
540.45 Ex VAT
Shipping:
FREE Shipping.
Out of Stock. Contact Us!
Email us for assistance

Related products

slide 6 to 10 of 15

Product Information

APC Modular Power Accessories , Input: 400V 3PH , Input Connections: IEC 309 32A 3P+N+PE , Output: 400V 3PH , Output Connections: IEC 309 32A.
Includes: Installation guide.

- Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
- System mobility
PDU equipment can easily be relocated to accommodate a changing data center environment.
- Multiple distribution options
Superior design flexibility enables a wide range of customer requirements to be addressed.
- Meets UL Requirements
- High Power Density

Safety
Enhance user safety with isolation at all touch points and with positive locking mechanisms that reduce the risk of accidental disconnection

Manageability
- Power monitoring
Measure and monitor power consumption and usage with branch circuit monitoring and output metering, which are included at no extra cost
- Quick status information LEDs
Access status information about the performance of the Power Distribution Module

Convenience

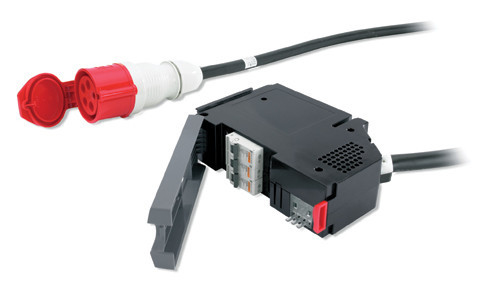

- Toolless installation of breakers
Install factory-assembled Power Distribution Modules in under ten minutes - no tools are required
- Global product offering
Standardization of the power distribution system across all corporate locations is easy - a variety of 1-phase and 3-phase Power Distribution Modules address the unique power requirements of data centers around the world

Ports & interfaces
Input connection type IEC 309 32A 3P+N+PE
Output connections 1 x IEC 309 32A
Features
Cable length 3.8 m
Power
Nominal input voltage 400 V
Nominal output voltage 400 V
Maximum input current per phase 32 A
Maximum total current draw per phase 32 A
Weight & dimensions
Weight 2.99 kg
Packaging data
Package dimensions (WxDxH) 432 x 406 x 152 mm
Package weight 3.9 kg
Package width 432 mm
Package depth 406 mm
Package height 152 mm
Warranty
Base Warranty Non Non
