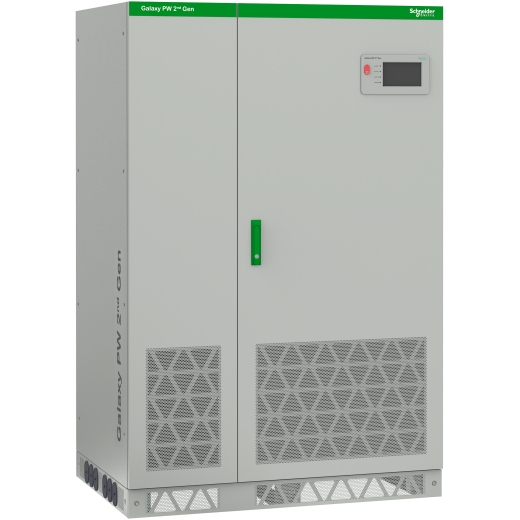

Galaxy PW 2nd Gen 60kVA 3:1 UPS 220VAC 12 Pulse 220VDC with Input Transformer Startup 5x8

ITCurry #: 0280K779 | Article #: EPWUPS60KU12PTS
Price:
18200.22 Ex VAT
Shipping:
FREE Shipping.
Out of Stock. Contact Us!
Email us for assistance

Related products

slide 7 to 11 of 14

Product Information

Network management capability
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet.

Parallel-capacity capability
Increases total power capacity by using multiple uninterruptible power supplies simultaneously.
Generator compatible
Ensures clean, uninterrupted power to the loads in the event of an extended power outage
Dual mains input
Increases availability by allowing the UPS to be connected to two separate power sources.

Warranty
Base Warranty Non Non
Features
UPS topology Double-conversion (Online)
Output power capacity 60 kVA
Output power 48000 W
Waveform Sine
Input operation voltage (min) 380 V
Input operation voltage (max) 415 V
Input frequency 45/55 Hz
Output operation voltage (min) 380 V
Output operation voltage (max) 415 V
Output frequency 50 Hz
Number of input phases 3
Number of output phases 3
Output voltage Total Harmonic Distortion (THD) 2%
Noise level 70 dB
Audible alarm(s) Yes
Design
Form factor Tower
Product colour Grey
Display type LCD
International Protection (IP) code IP31
Operational conditions
Operating temperature (T-T) 0 - 40 øC
Storage temperature (T-T) -25 - 55 øC
Operating relative humidity (H-H) 0 - 95%
Storage relative humidity (H-H) 0 - 95%
Operating altitude 0 - 1000.05 m
Non-operating altitude 0 - 9999.9 m
Technical details
Sustainability compliance Yes
Compliance certificates CE, RoHS
Weight & dimensions
Width 1200 mm
Depth 800 mm
Height 1800 mm
Weight 876 kg
