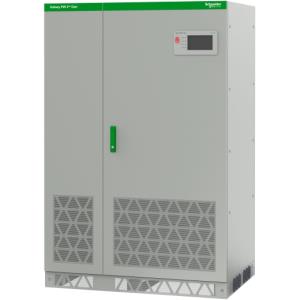

Galaxy PW 2nd Gen 30kVA 3:1 UPS 220VAC 12 Pulse 220VDC with Input Transformer Startup 5x8
ITCurry #: 0280K770 | Article #: EPWUPS30KU12PTS-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Transformer-based 30 kVA 3-phase input, single-phase output UPS with 12-pulse SCR technology and a 220 VDC internal DC bus. Ideal for industrial applications, this UPS includes 5x8 start-up service.
Network management capability
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet.
Parallel-capacity capability
Increases total power capacity by using multiple uninterruptible power supplies simultaneously.
Generator compatible
Ensures clean, uninterrupted power to the loads in the event of an extended power outage
Dual mains input
Increases availability by allowing the UPS to be connected to two separate power sources.
Warranty | |
Base Warranty | Non Non |
Features | |
Output power capacity | 30 kVA |
Output power | 24000 W |
Waveform | Sine |
Input operation voltage (min) | 380 V |
Input operation voltage (max) | 415 V |
Input frequency | 45/55 Hz |
Output operation voltage (max) | 220 V |
Output frequency | 50 Hz |
Number of input phases | 3 |
Output voltage Total Harmonic Distortion (THD) | 2% |
Noise level | 70 dB |
Audible alarm(s) | Yes |
Design | |
Form factor | Tower |
Product colour | Grey |
Display type | LCD |
International Protection (IP) code | IP31 |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 øC |
Storage temperature (T-T) | -25 - 55 øC |
Operating relative humidity (H-H) | 0 - 95% |
Storage relative humidity (H-H) | 0 - 95% |
Operating altitude | 0 - 2000 m |
Non-operating altitude | 0 - 10000 m |
Technical details | |
Sustainability compliance | Yes |
Compliance certificates | CE, RoHS |
Weight & dimensions | |
Width | 800 mm |
Depth | 800 mm |
Height | 1800 mm |
Weight | 488 kg |
Package width | 928 mm |
Package depth | 928 mm |
Package height | 2085 mm |
Package weight | 558 kg |
