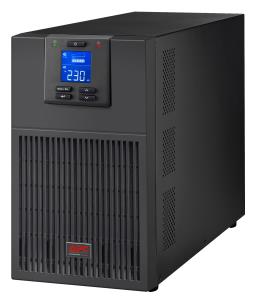

Easy UPS SRV 10000VA 230V
ITCurry #: 0280J041 | Article #: SRV10KRI-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA double-conversion on-line 4U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with hard wire 3-wire(1P+N+E) input and hard wire 3-wire(1P+ N+E) outlet. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The UPS is compatible with SRVRK1 and SRVRK2 rail kits sold separately. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 10 kVA |
| Output power | 10000 W |
| Waveform | Sine |
| Input operation voltage (min) | 220 V |
| Input operation voltage (max) | 240 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 600 J |
| Crest factor | 3:1 |
| ECO mode | Yes |
| Emergency Power Off (EPO) | Yes |
| Surge protection | Yes |
| Power protection features | Overload |
| Audible alarm(s) | Yes |
| Ports & interfaces | |
| AC outlet types | Hard Wire 3-wire (1P + N + E) |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| RS-232 ports | 1 |
| Emergency Power Off (EPO) connector | Yes |
| SmartSlot | Yes |
| Battery | |
| Battery recharge time | 3 h |
| Design | |
| Form factor | Compact |
| Cooling type | Active |
| Built-in fan | Yes |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Power, Status |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 14763 m |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, IEC 62040-1-1, IEC 62040-1-2 |
| Packaging content | |
| Cables included | USB cable |
| Manual | Yes |
| Weight & dimensions | |
| Width | 438 mm |
| Depth | 710 mm |
| Height | 173 mm |
| Weight | 69 kg |
| Packaging data | |
| Package weight | 79 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Warranty | |
| Base Warranty | Non Non |
