Smart-UPS SRT 10000va 230v
ITCurry #: 0280E092 | Article #: SRT10KXLI-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

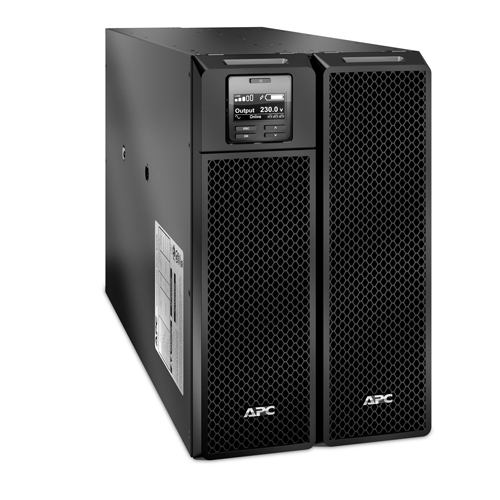

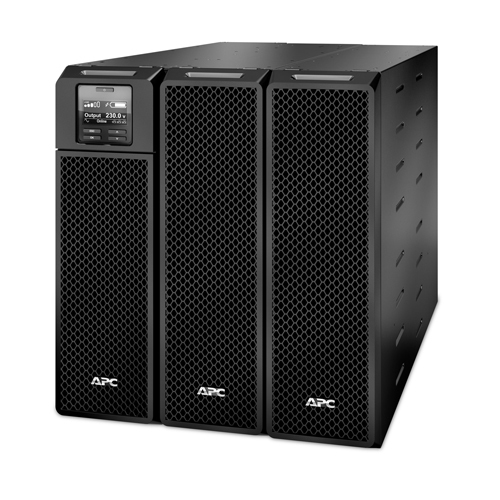

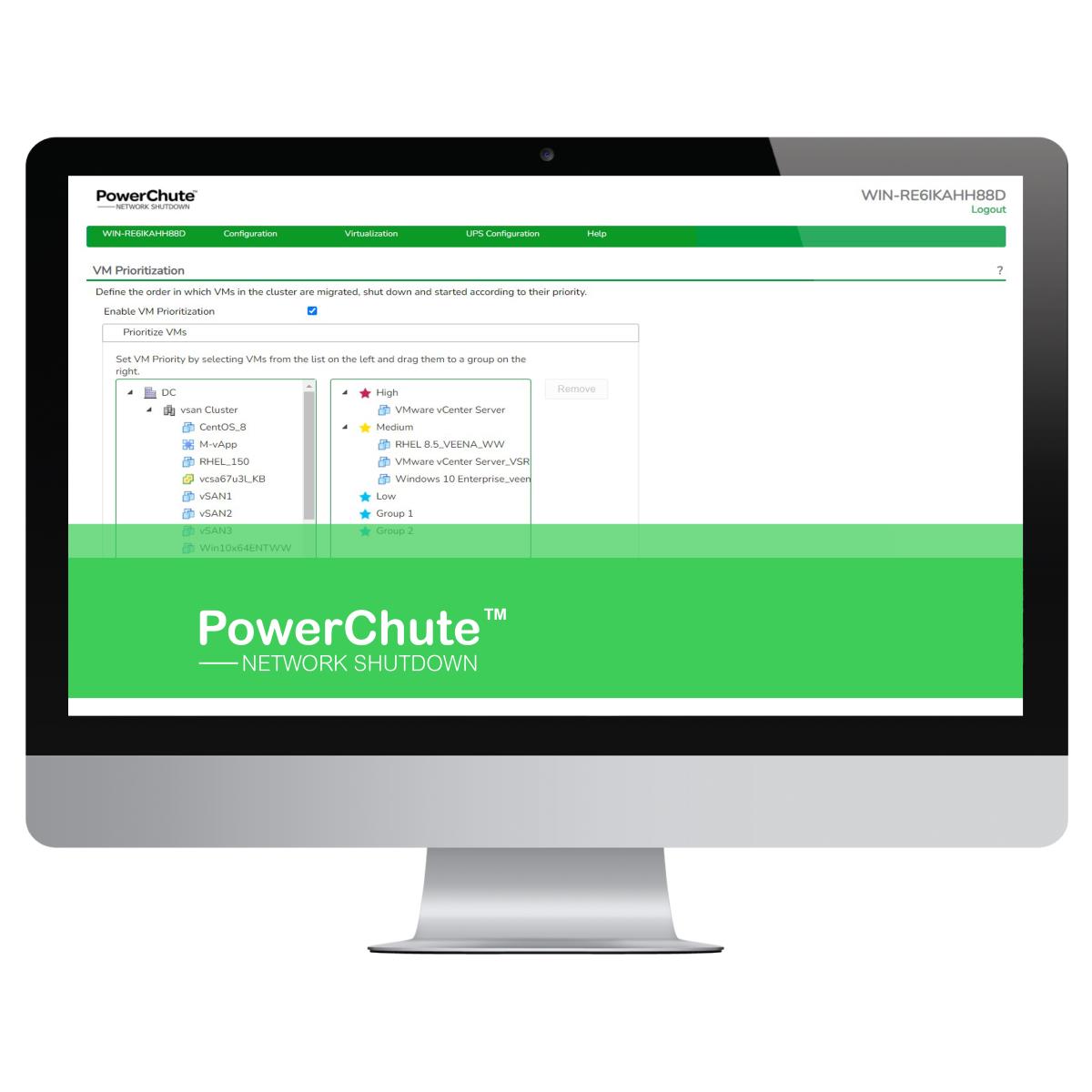

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire(1P+N+E)/5-wire(3P+N+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outlets, and 3x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 10 kVA |
| Output power | 10000 W |
| Waveform | Sine |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 476 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency regulation | 50/60 Hz |
| Surge energy rating | 480 J |
| Number of output phases | 1 |
| Efficiency | 94.6% |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Auto-restart | Yes |
| Ports & interfaces | |

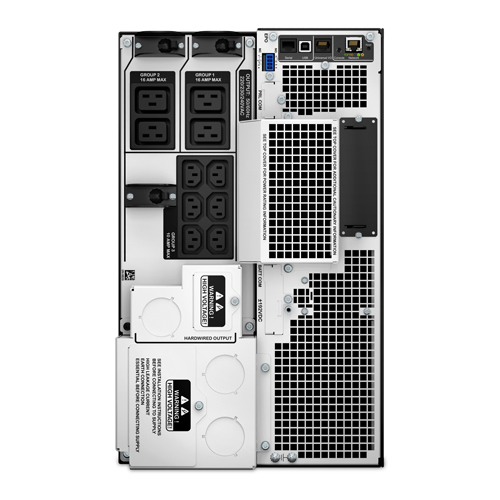

| AC outlet types | C13 coupler, C19 coupler |
| Power plug | Terminal |
| AC outlets quantity | 10 AC outlet(s) |
| Number of output IEC jumpers | 3 |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 1805 VAh |

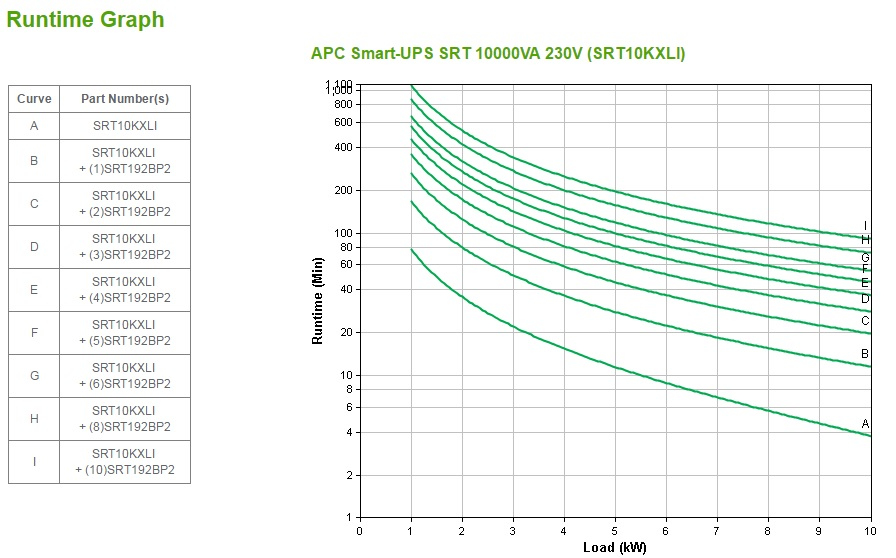

| Typical backup time at full load | 3.8 min |
| Typical backup time at half load | 11.5 min |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 1.5 h |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Cold start | Yes |
| Design | |
| Form factor | Rackmount/Tower |
| Product colour | Black |
| LED indicators | Yes |
| International Protection (IP) code | IP20 |
| Certification | CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE, REACH |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -15 - 45 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Sustainability certificates | ENERGY STAR |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 263 mm |
| Depth | 715 mm |
| Height | 432 mm |
| Weight | 111.8 kg |
| Package width | 600 mm |
| Package depth | 1000 mm |
| Package height | 461 mm |
| Package weight | 126.8 kg |
| Packaging data | |
| Cables included | USB cable |
| Temperature sensor | Yes |
| Quick installation guide | Yes |
| Warranty card | Yes |
| Software CD | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Other features | |
| Interface | RJ-45 10/100 Base-T |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
| Packaging content | Web/SNMP Management Card |
| Warranty | |
| Base Warranty | Non Non |
